Bass
Humbuckers
- 1 Humbucker / 1 Vol
- 1 Humbucker / 1 Vol / 1 Tone
- 1 Humbucker / 1 Vol / 1 Tone / Push-Pull Coil Split (Volume)

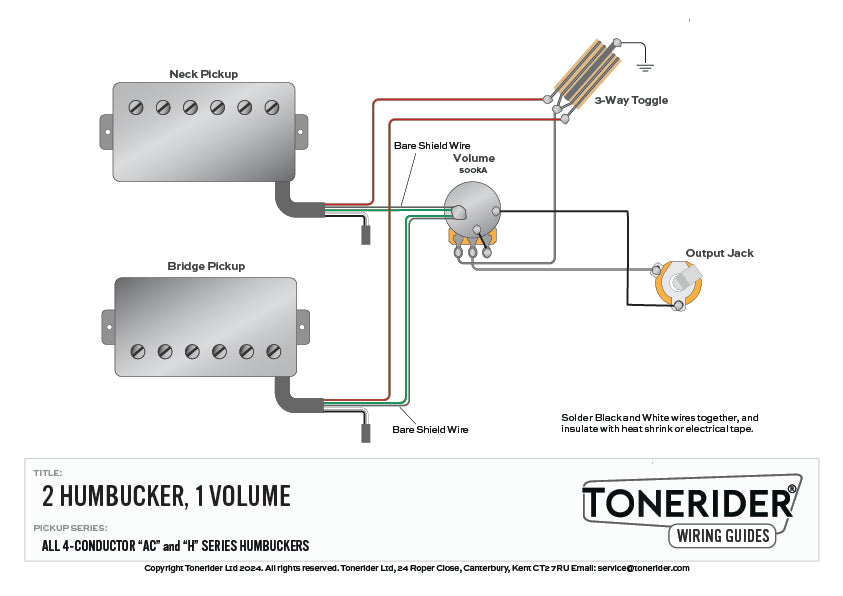

- 2 Humbucker / 1 Vol

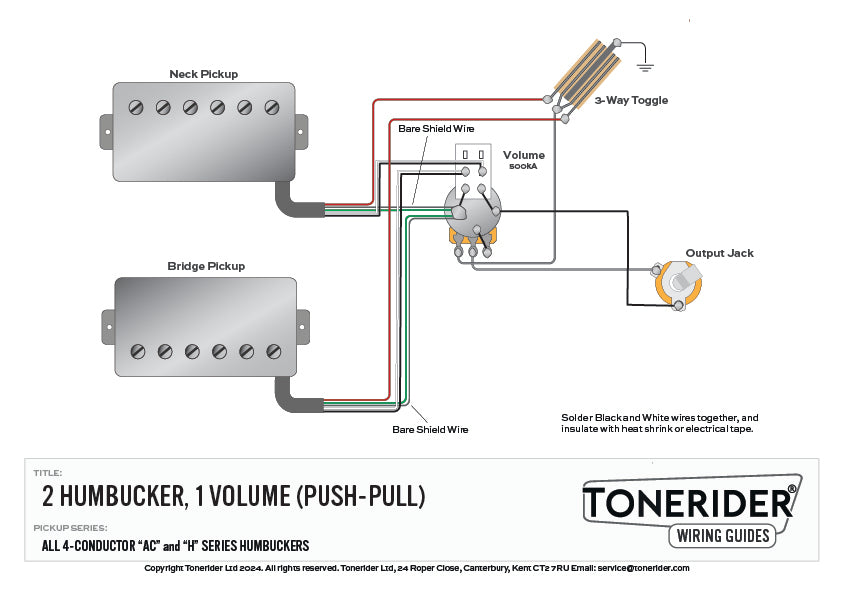

- 2 Humbucker / 1 Vol (Push-Pull)
- 2 Humbuckers / 1 Vol / 1 Tone / 3-Way Toggle
- 2 Humbuckers / 1 Vol / 1 Tone / 3-Way Toggle / Push-Pull Coil Split (Tone)
- 2 Humbuckers / 1 Vol / 1 Tone / 3-Way Toggle / Push-Pull Coil Split (Vol)
- 2 Humbuckers / 1 Vol / 1 Tone / 5-Way Lever
- 2 Humbuckers / 2 Vol / 2 Tone / 3-Way Toggle
- 2 Humbuckers / 2 Vol / 2 Tone / 3-Way Toggle (50’s Wiring)
- 2 Humbuckers / 2 Vol / 2 Tone / 3-Way Toggle / Push-Pull Coil Split
- 2 Humbuckers / 2 Vol / 1 Tone / 3-Way Toggle
- Humbucker Quick Connect
P90s
- 1 P90, 1 Humbucker / 1 Vol / 1 Tone / 3-Way Toggle
- 1 P90, 1 Humbucker / 1 Vol / 1 Tone / 3-Way Toggle / Push-Pull Coil Split
- 1 P90 / 1 Vol
- 1 P90 / 1 Vol / 1 Tone
- 2 P90s / 1 Vol / 1 Tone / 3-Way Toggle
- 2 P90s / 2 Vol / 2 Tone / 3-Way Toggle
Rebel 90s
- 1 Rebel 90, 1 Humbucker / 1 Vol / 1 Tone / 3-Way Toggle
- 1 Rebel 90, 1 Humbucker / 1 Vol / 1 Tone / 3-Way Toggle / Push-Pull Coil Split
- 1 Rebel 90 / 1 Vol
- 1 Rebel 90 / 1 Vol / 1 Tone
- 2 Rebel 90s / 1 Vol / 1 Tone / 3-Way Toggle
- 2 Rebel 90s / 2 Vol / 2 Tone / 3-Way Toggle
- Bridge Rebel 90, Neck Humbucker / 2 Vol / 2 Tone / 3-Way Toggle
Apex for Stratocasters - HSS
- Apex HSS / 1 Vol / 2 Tone / 5-Way Blade (Autosplit)
- Apex HSS 1V1T Split

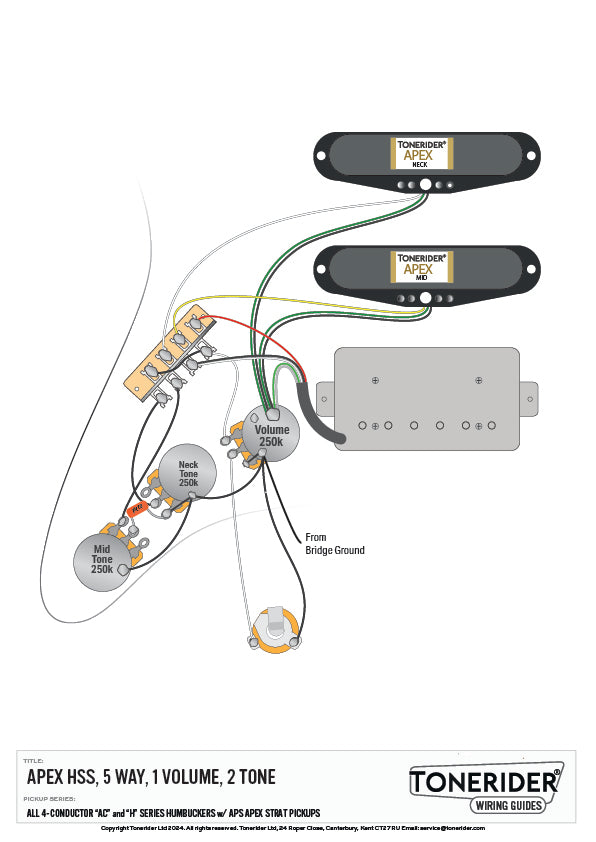

- Apex HSS / 1 Vol / 2 Tone / 5-Way Blade
Traditional Stratocasters - SSS
- 3 Single Coils / 1 Vol / 2 Tone / 5-Way Blade
- 3 Single Coils / 1 Vol / 2 Tone / 5-Way Blade (Bridge Tone Mod)
Traditional Stratocasters - HSS
- 1 Humbucker / 2 Single Coils / 1 Vol / 1 Tone / 5-Way Blade
- 1 Humbucker / 2 Single Coils / 1 Vol / 1 Tone / 5-Way Blade (Autosplit)
- 1 Humbucker / 2 Single Coils / 1 Vol / 1 Tone / 5-Way Import Blade / Push-Pull Coil Split (Tone) / Resistor Mod
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade (Autosplit)

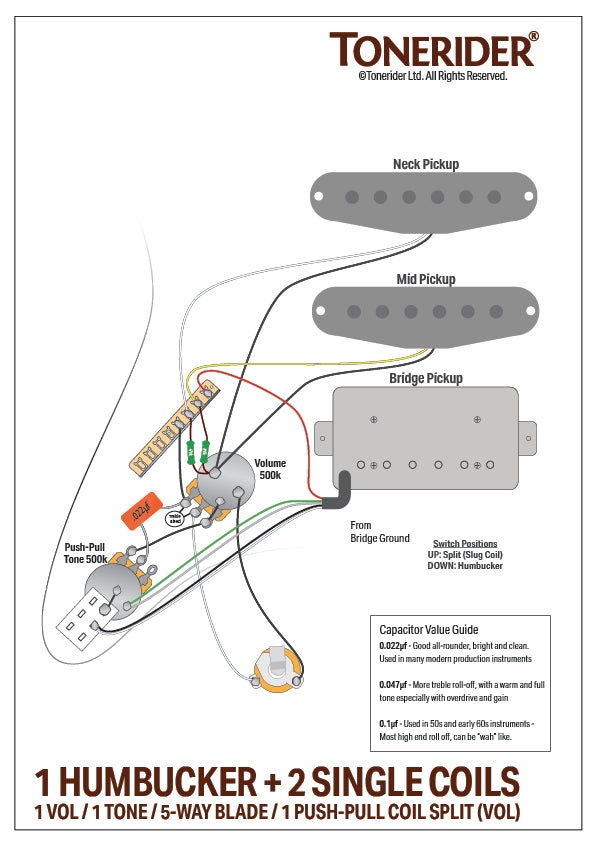

- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade / Push-Pull Coil Split (Volume)
Telecasters
- 1 Humbucker / 1 Single Coil / 1 Vol / 1 Tone / 3-Way Blade
- 1 Rebel 90 / 1 Single Coil / 1 Vol / 1 Tone / 3-Way Blade
- 2 Single Coils / 1 Vol / 1 Tone / 3-Way Blade

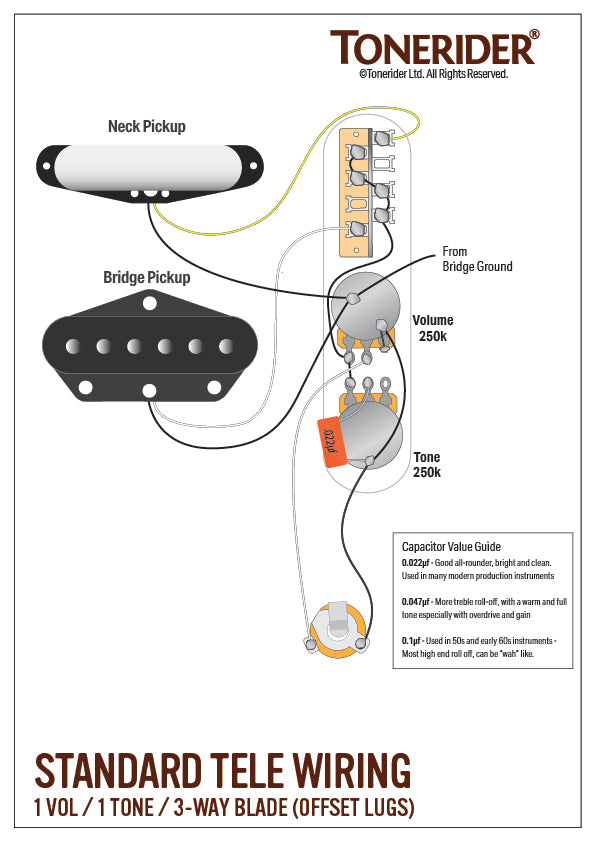

- 2 Single Coils / 1 Vol / 1 Tone / 3-Way Blade (Offset Lugs)
- 2 Single Coils / 1 Vol / 1 Tone / 4-Way Blade
- 3 Single Coils / 1 Vol / 1 Tone / 5-Way Blade (Nashville)
