Full Description

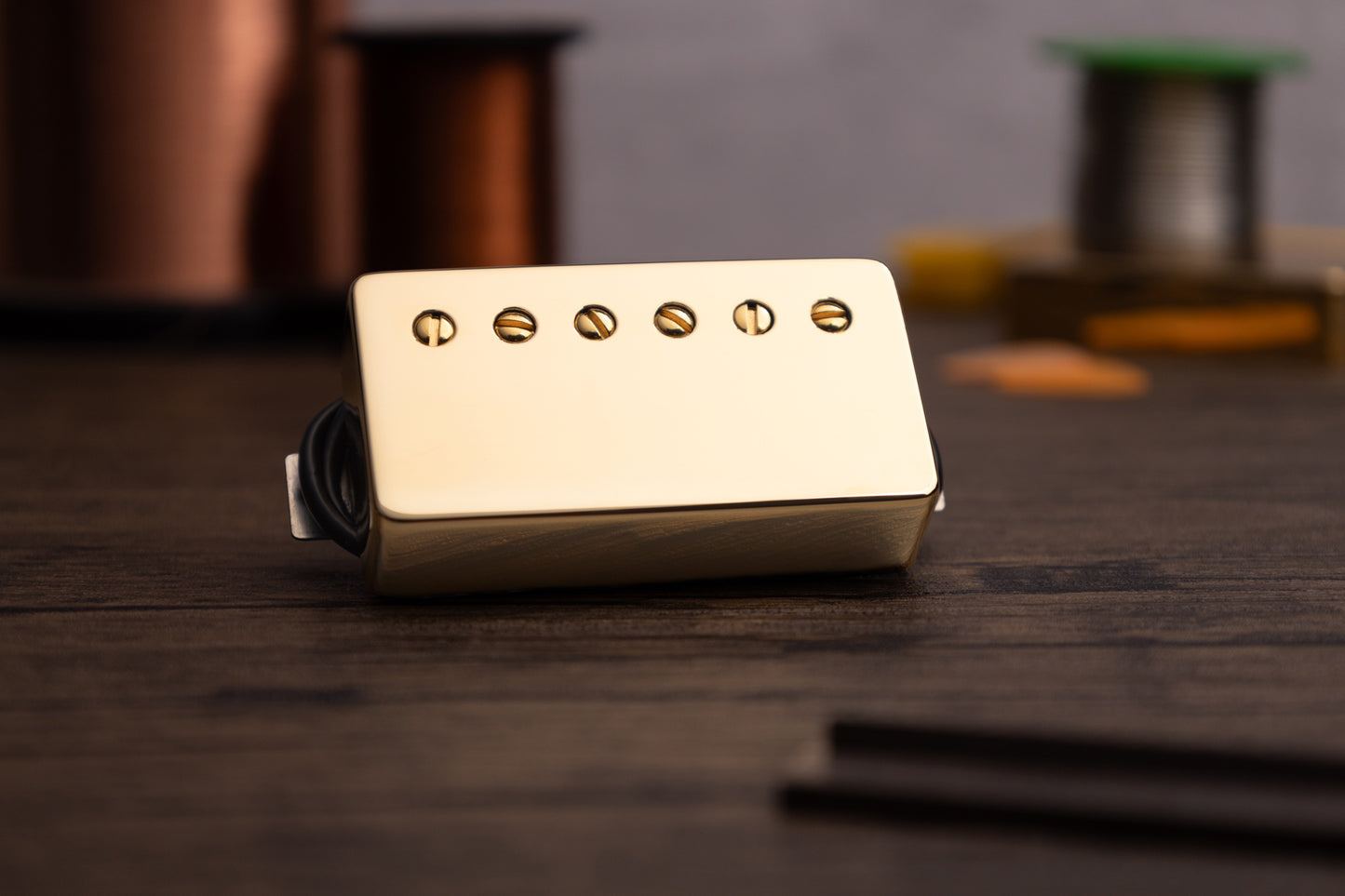

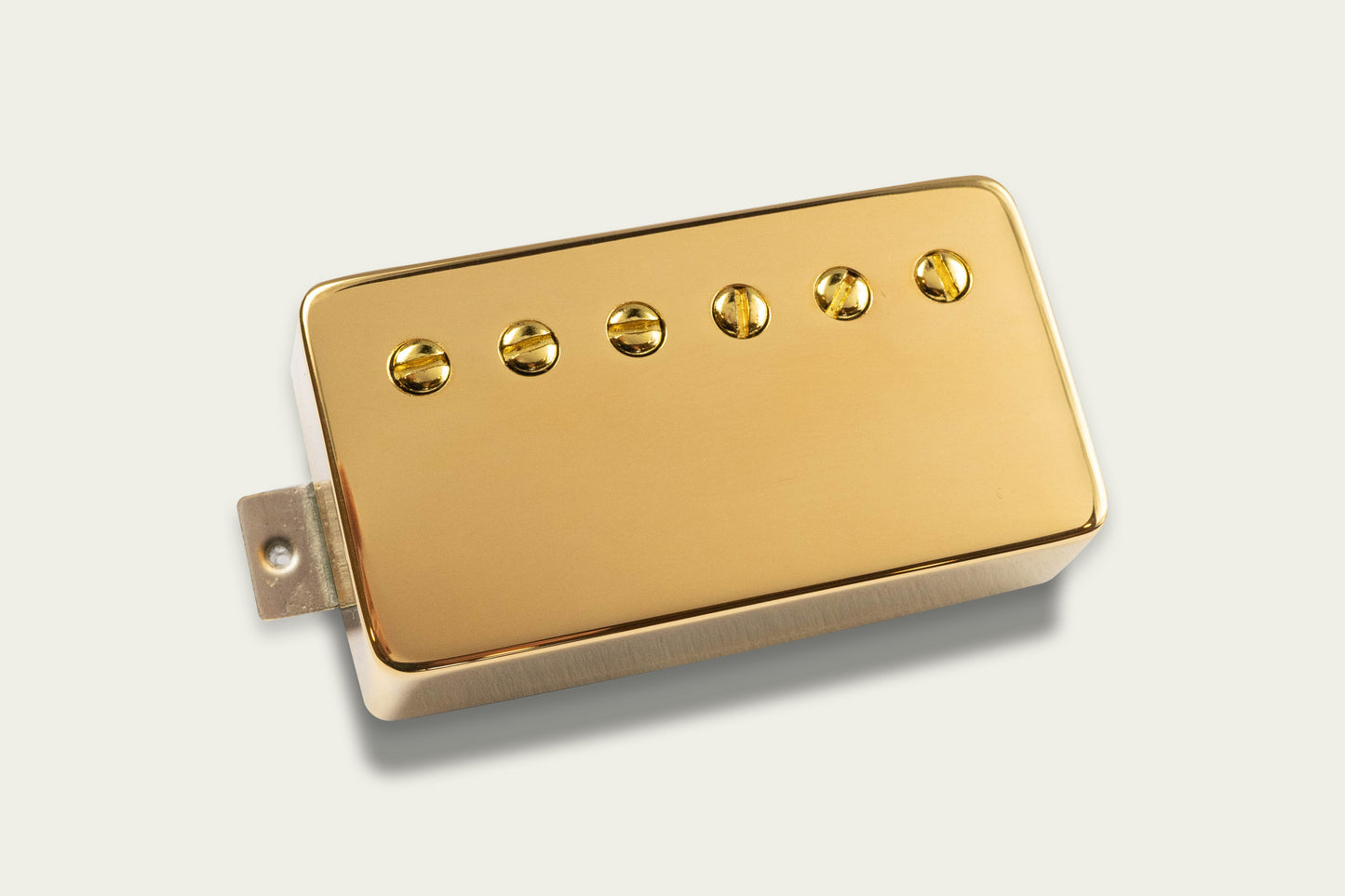

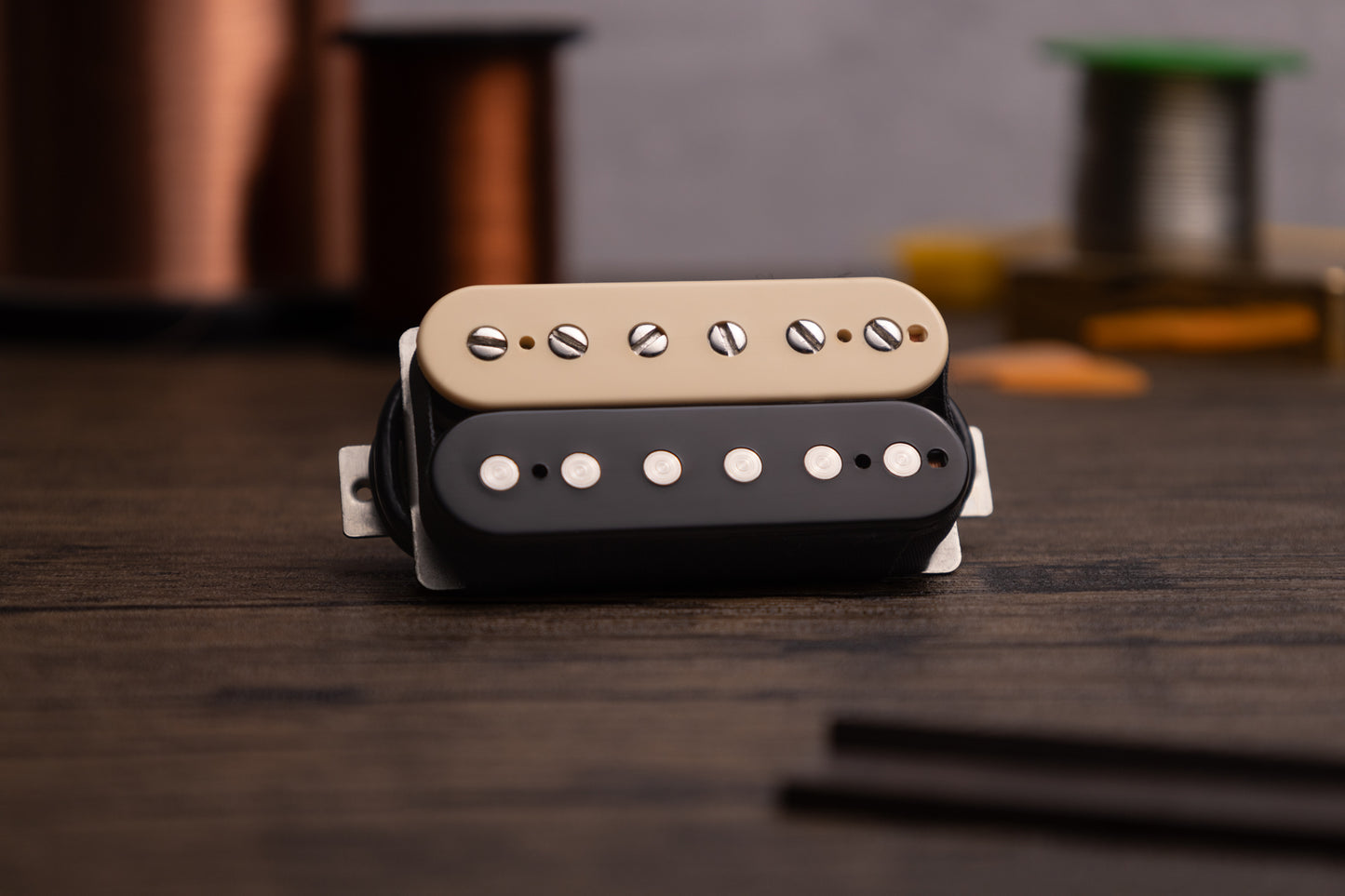

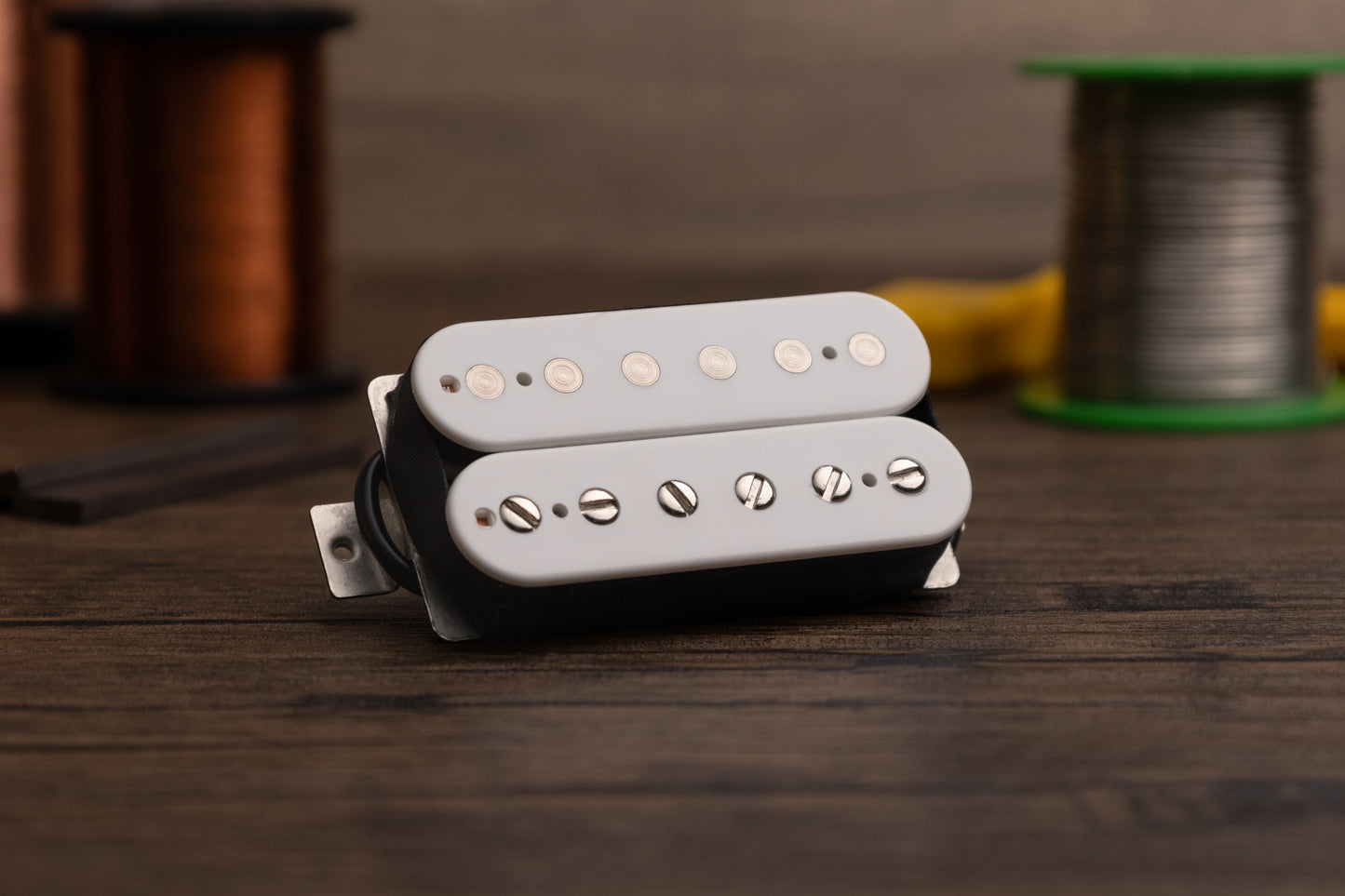

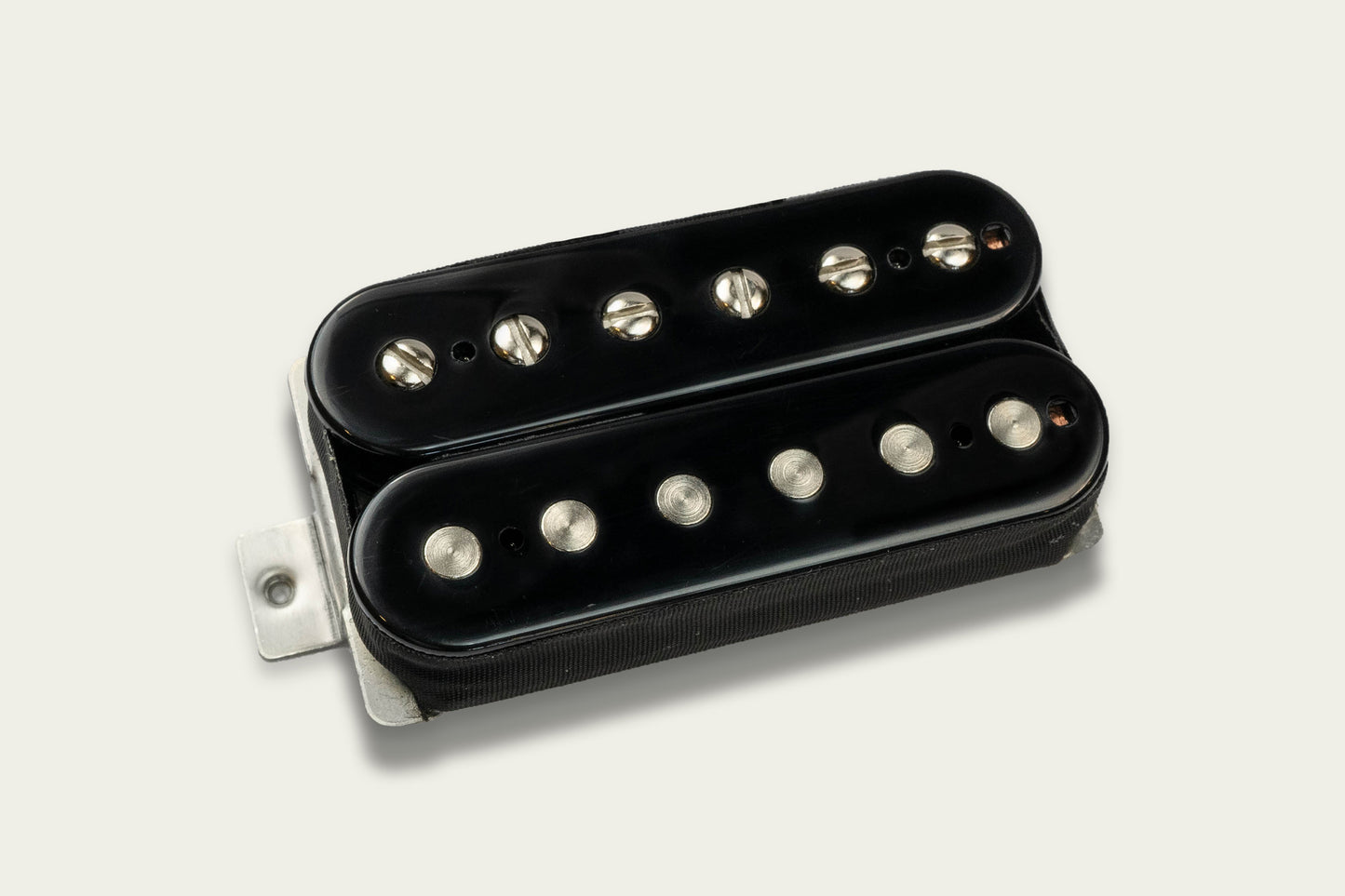

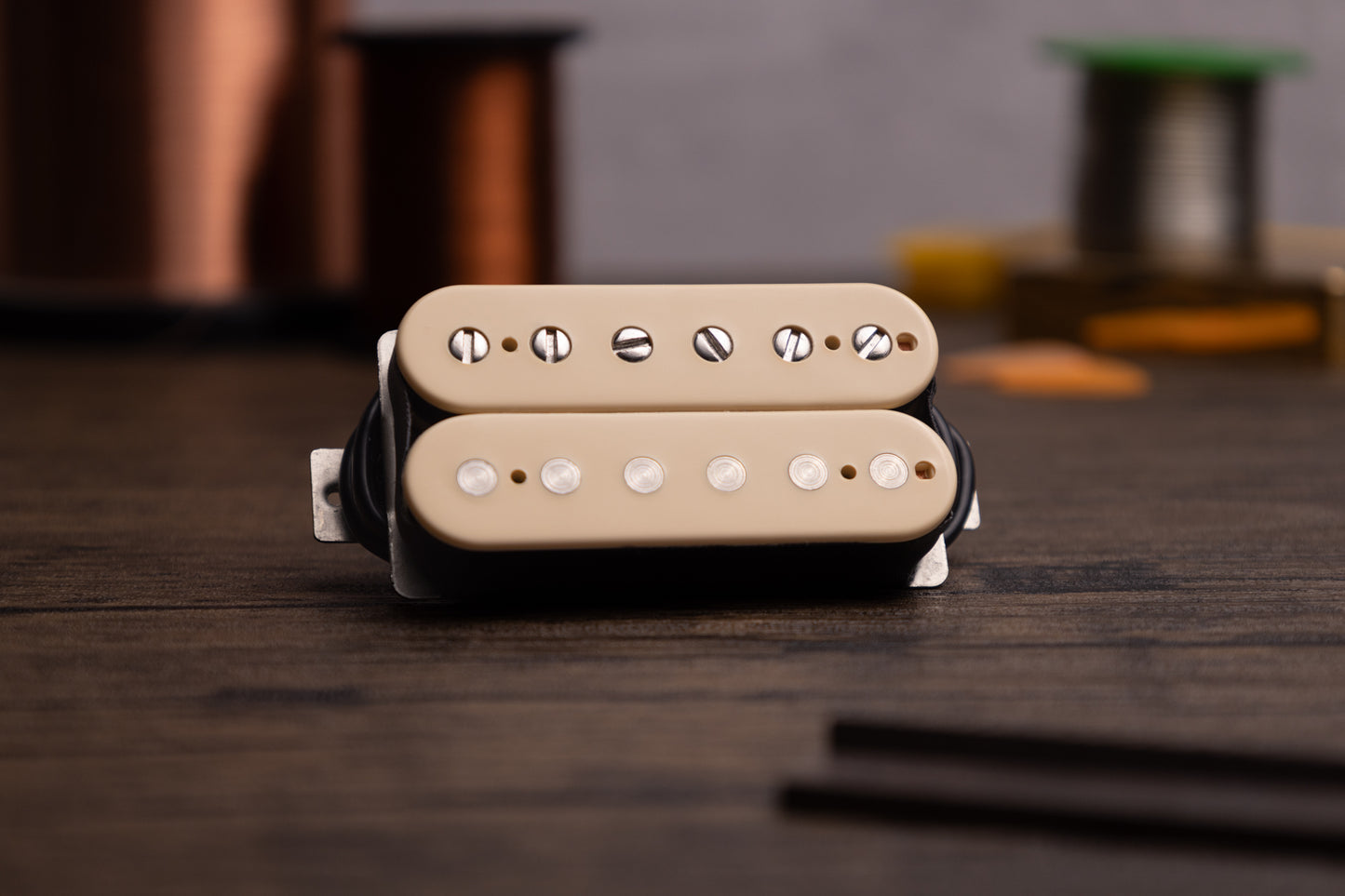

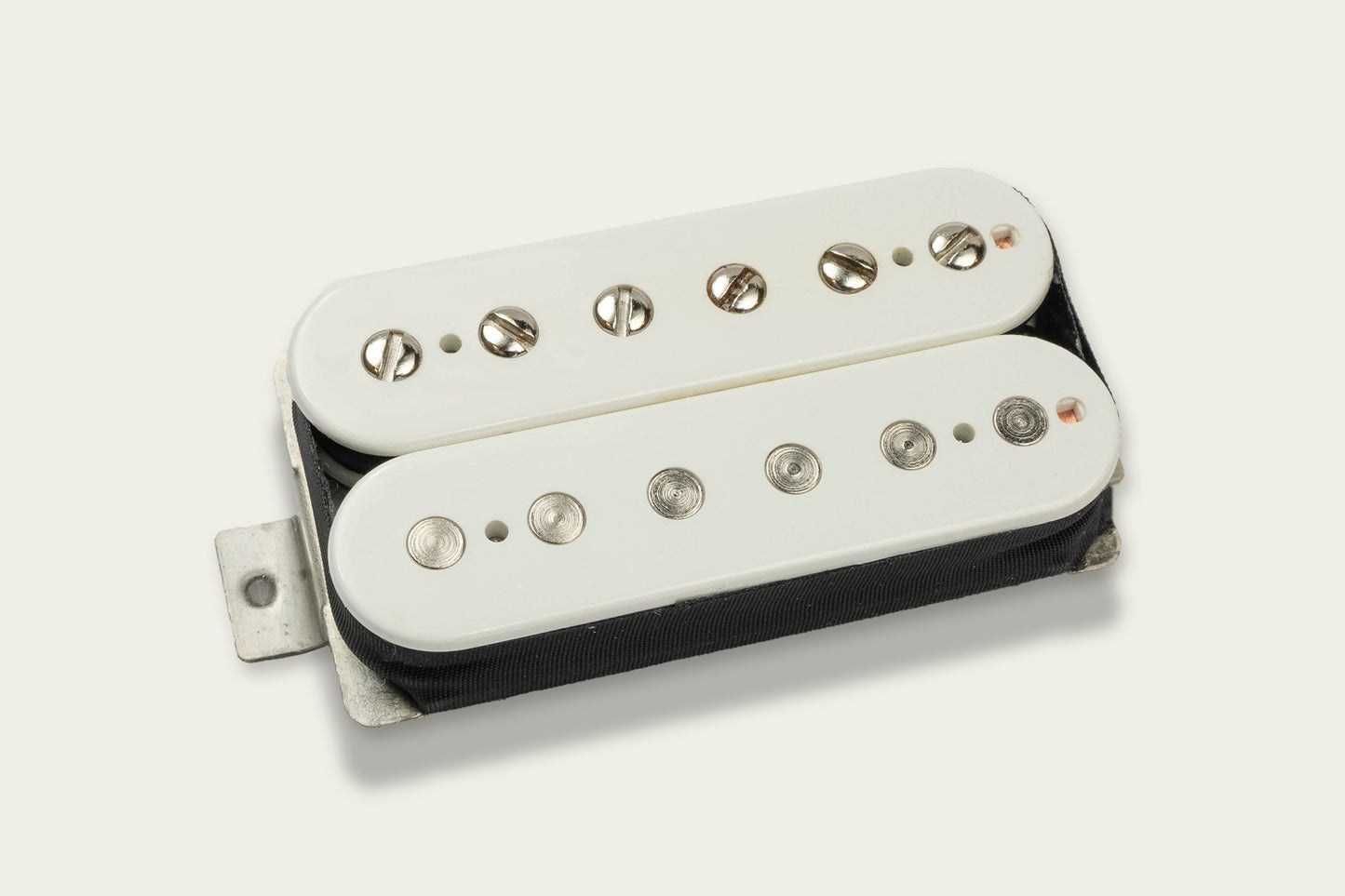

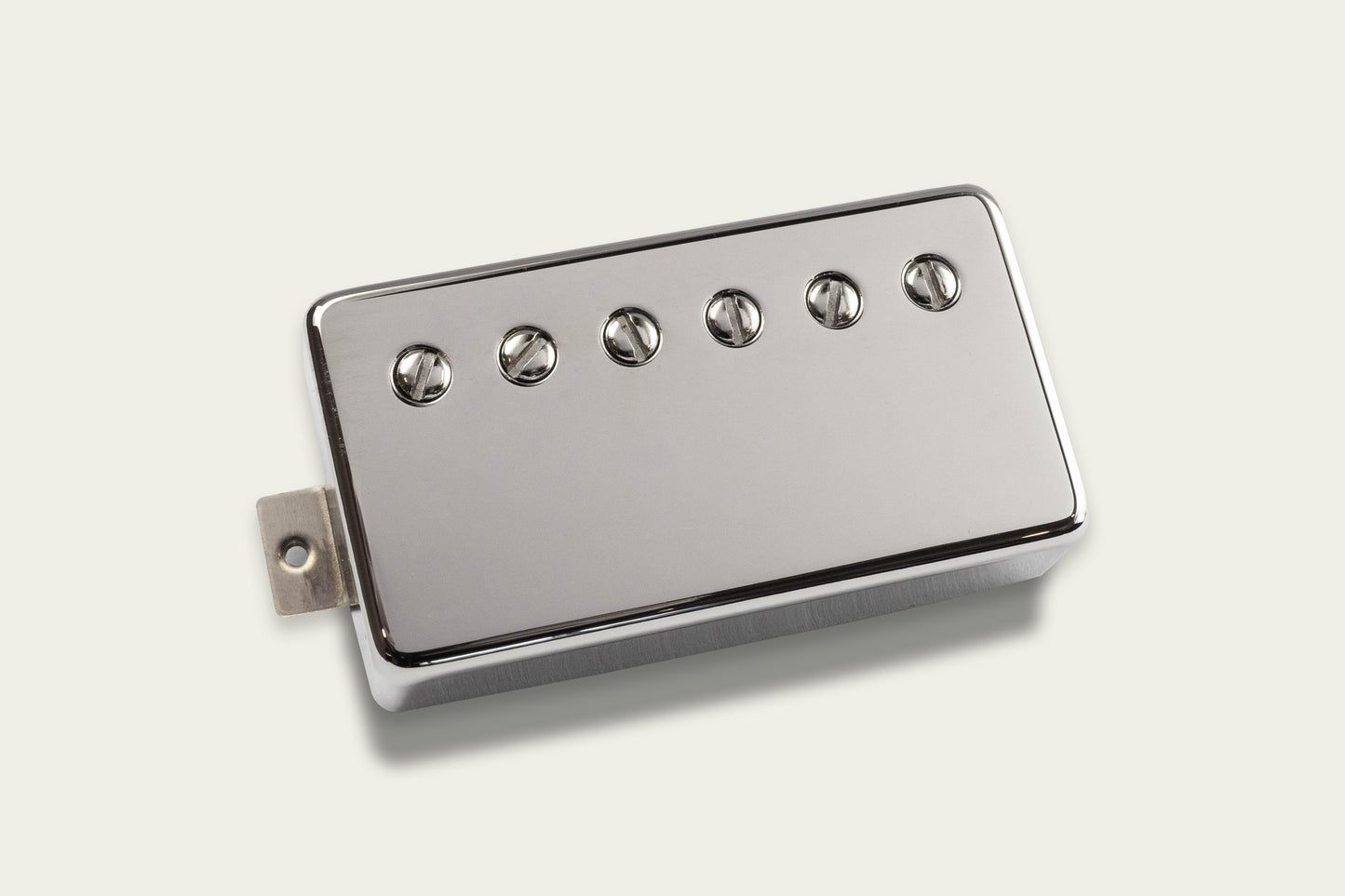

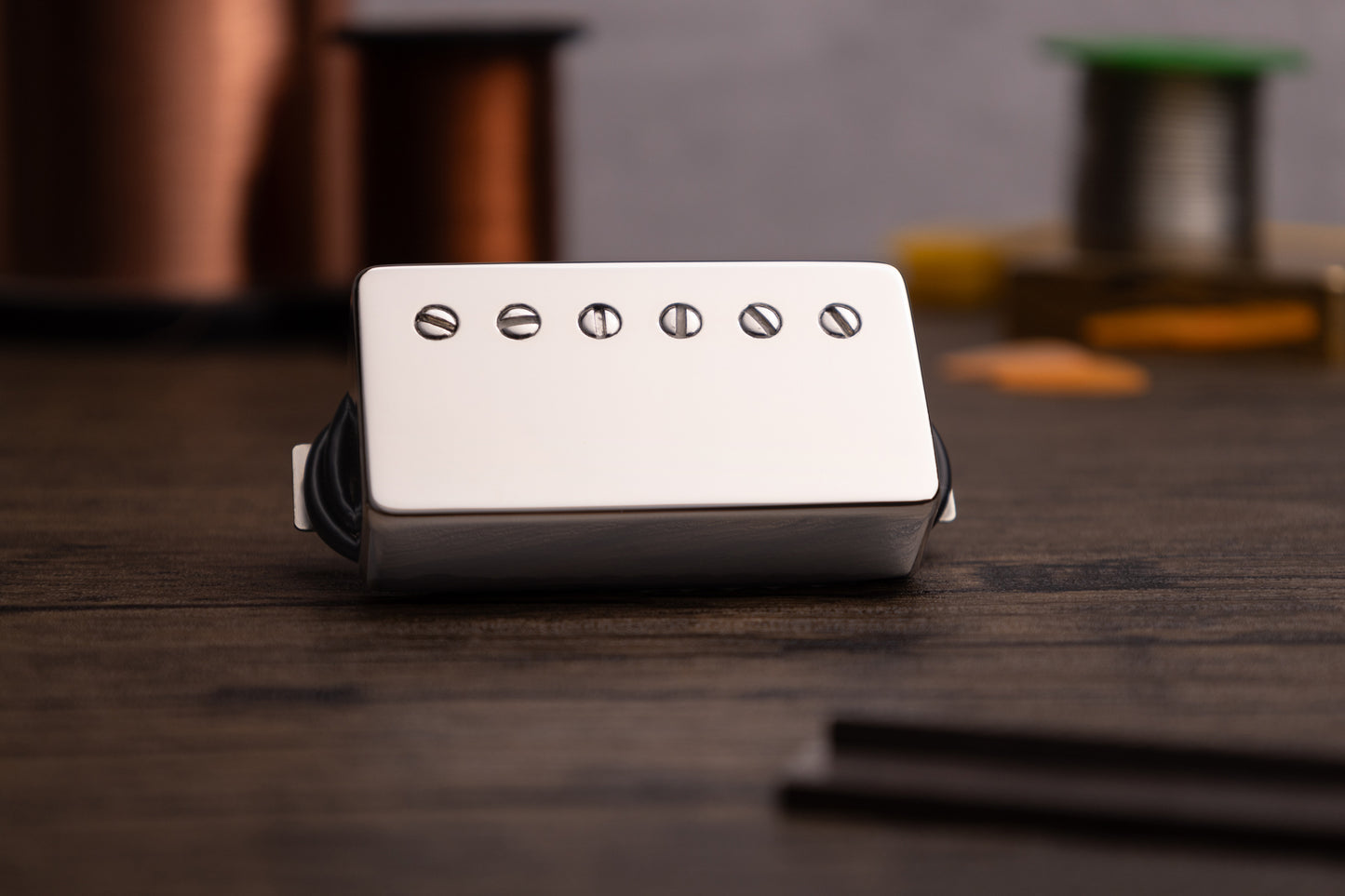

The Octane delivers more aggressive, tighter lead lines and focused power chords.
Built using a custom Alnico 8 magnet, Octanes are warmer than ceramic magnet pickups, and allow for amazing harmonic complexity at high gain settings.

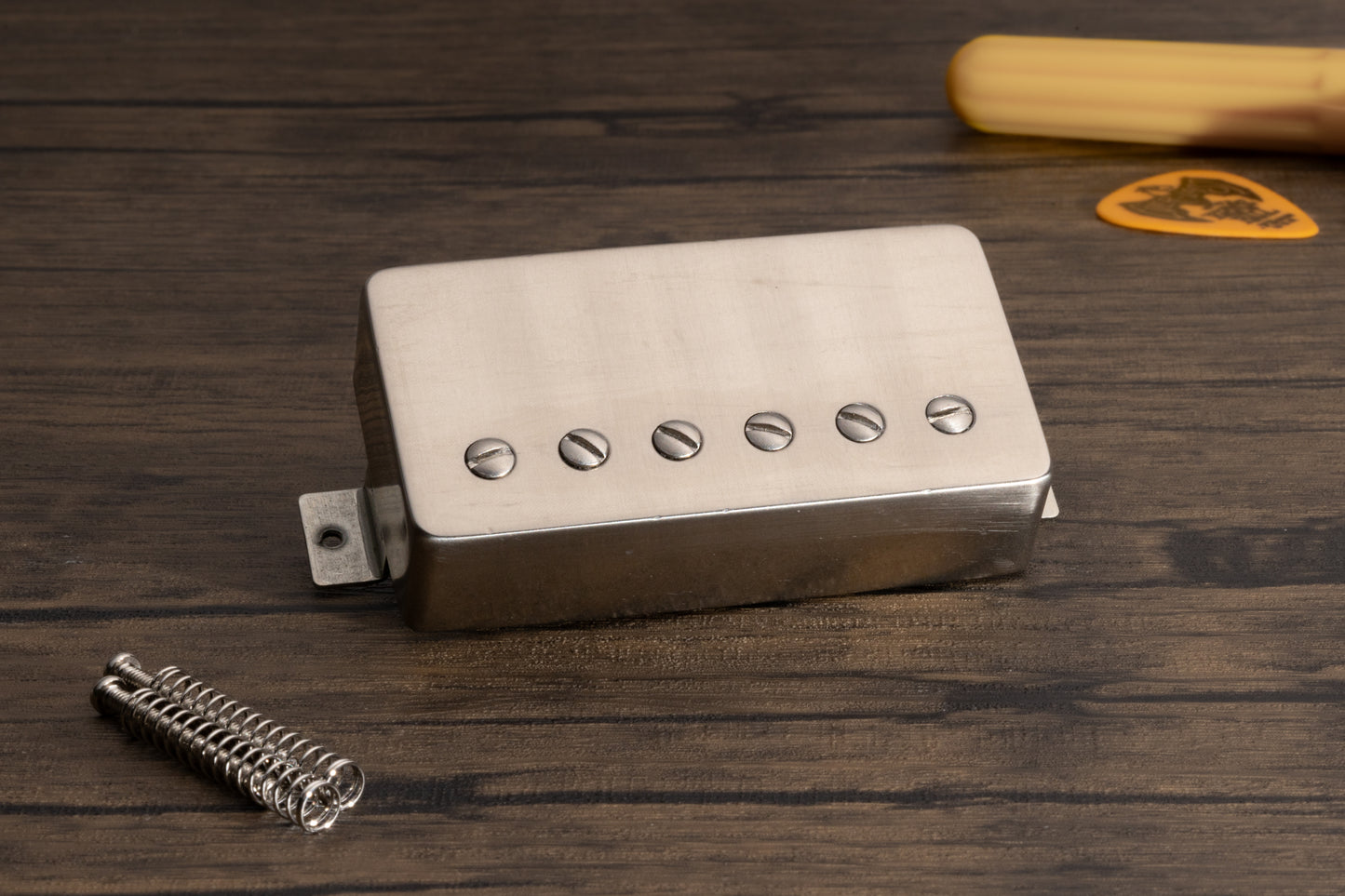

All Octane pickups are fully wax potted to avoid microphonic feedback, and come supplied with #3/48 screws, springs and an installation guide.
Neck 8.5k / Bridge 12.5k / F-spaced Bridge 12.7k, Custom Alnico 8
Tech Specs
| Octane Neck | Octane Bridge | |
|---|---|---|
| Model | H3N | H3B |
| Magnet | Alnico 8 Bar | Alnico 8 Bar |
| DCR | 8.5k | 12.5k (F-spaced 12.7k) |
| Inductance | 4.9H | 6.7H |
| Hookup Wire | 4-Conductor | 4-Conductor |
| Baseplate | Nickel Silver | Nickel Silver |
Dimensions
Wiring Diagrams
- 2 Humbuckers / 1 Vol / 1 Tone / 3-Way Toggle
- 2 Humbuckers / 1 Vol / 1 Tone / 3-Way Toggle / Push-Pull Coil Split (Vol)
- 2 Humbuckers / 1 Vol / 1 Tone / 3-Way Toggle / Push-Pull Coil Split (Tone)
- 2 Humbuckers / 2 Vol / 2 Tone / 3-Way Toggle
- 2 Humbuckers / 2 Vol / 2 Tone / 3-Way Toggle / Push-Pull Coil Split
- 1 Humbucker / 1 Vol
- 1 Humbucker / 1 Vol / 1 Tone
- 1 Humbucker / 1 Vol / 1 Tone / Push-Pull Coil Split (Volume)
- 2 Humbuckers / 2 Vol / 2 Tone / 3-Way Toggle (50’s Wiring)
- 2 Humbuckers / 1 Vol / 1 Tone / 5-Way Lever
