Full Description

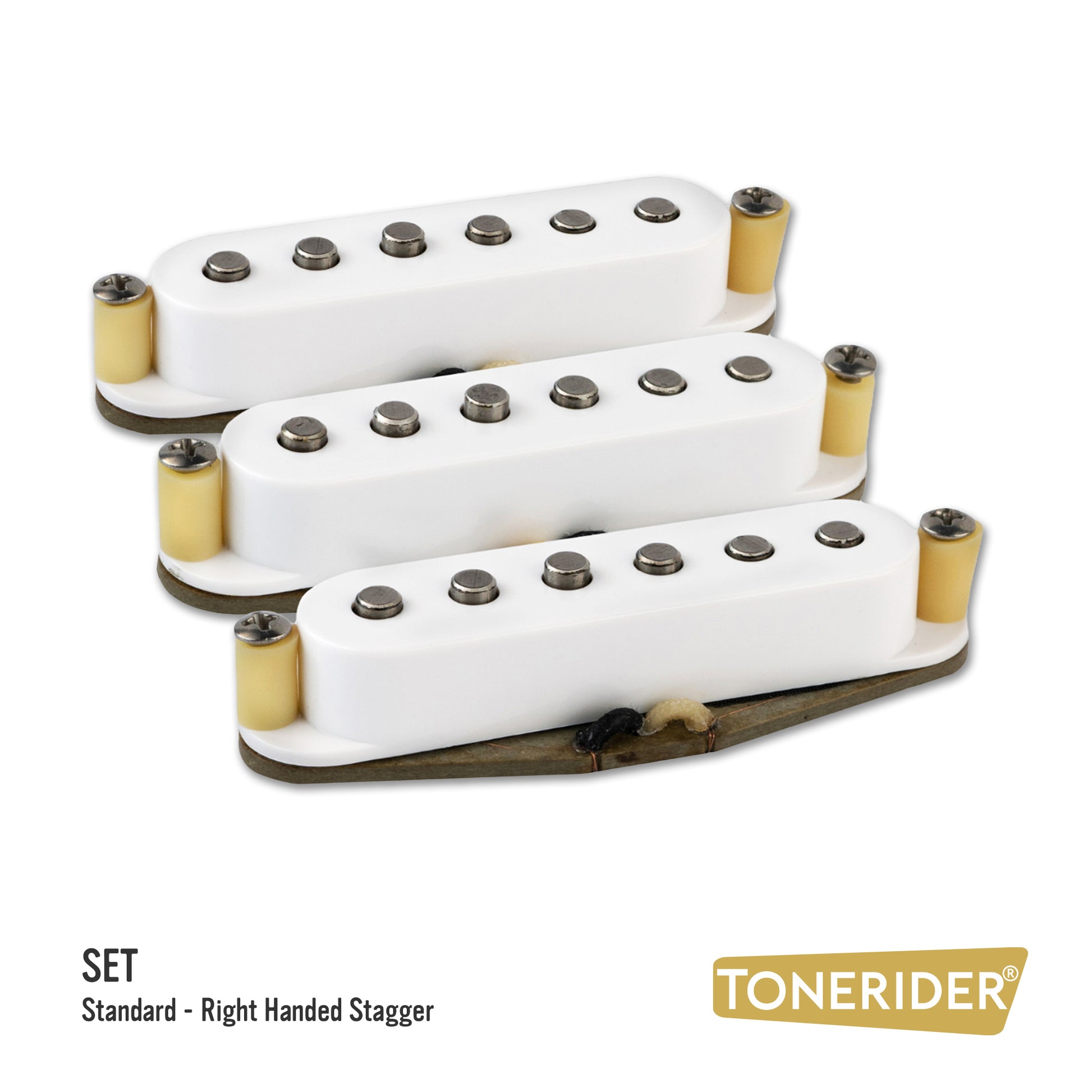

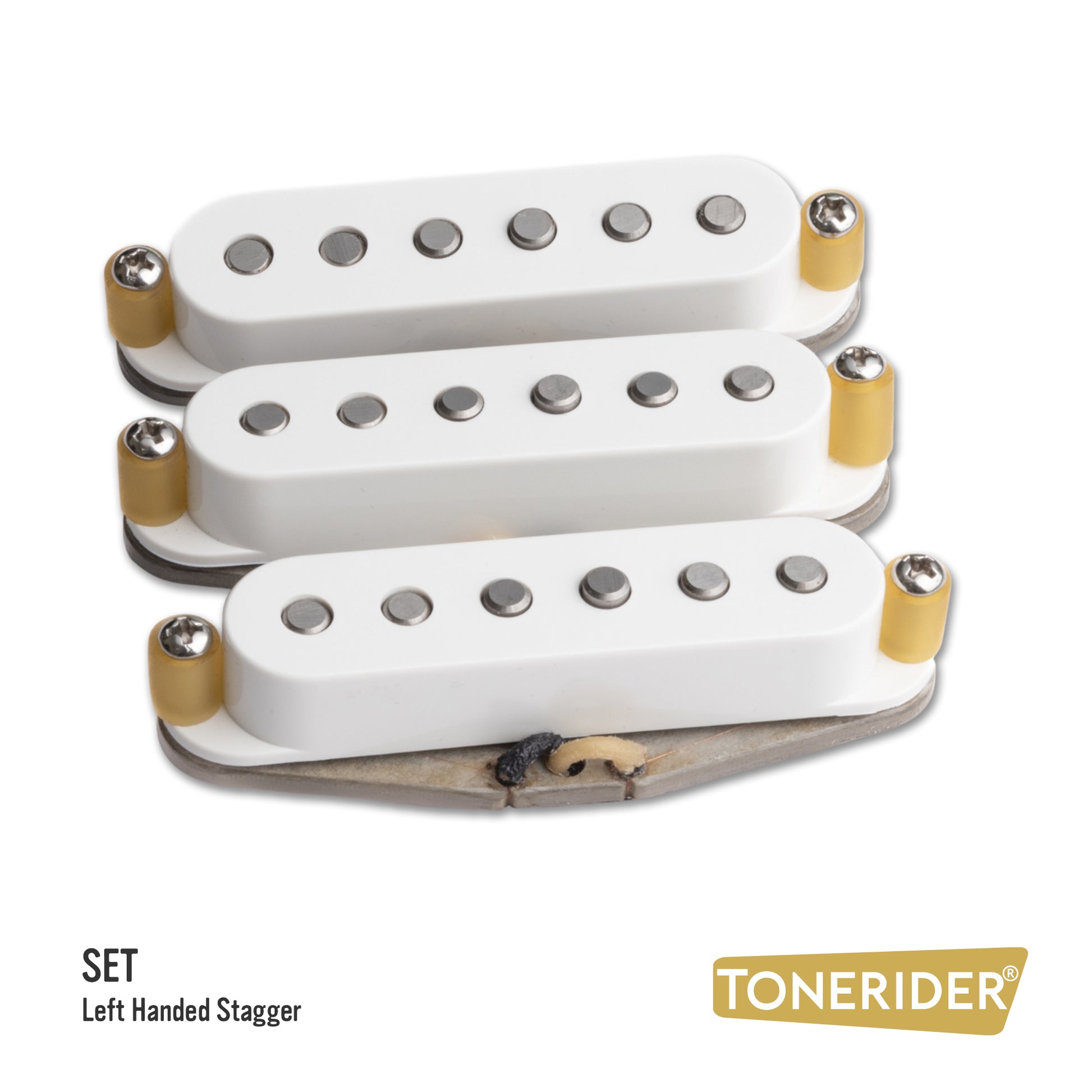

Perfect for Blues and Jazz, the Alnico II Blues set offers players touch-sensitive and sweet clean tones, without boomy bass notes or harsh trebles.
The Alnico II Blues set uses rod magnets with our "Modified Vintage Stagger" allowing for great string to string balance on a wide range of instruments.
Each pickup is fully wax potted to reduce any microphonic feedback.
Neck 6.1k / Mid 6.2k / Bridge 6.8k
Tech Specs

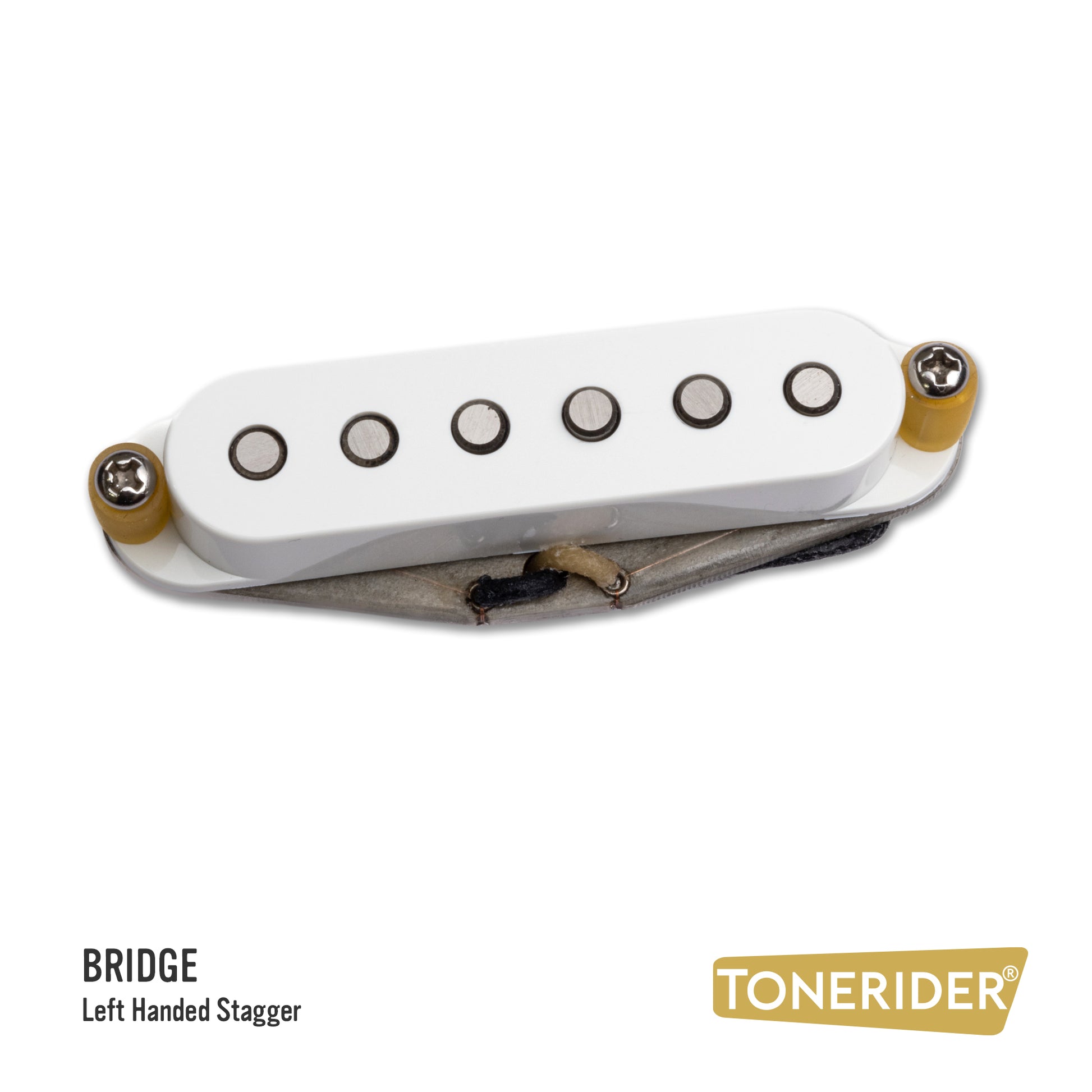

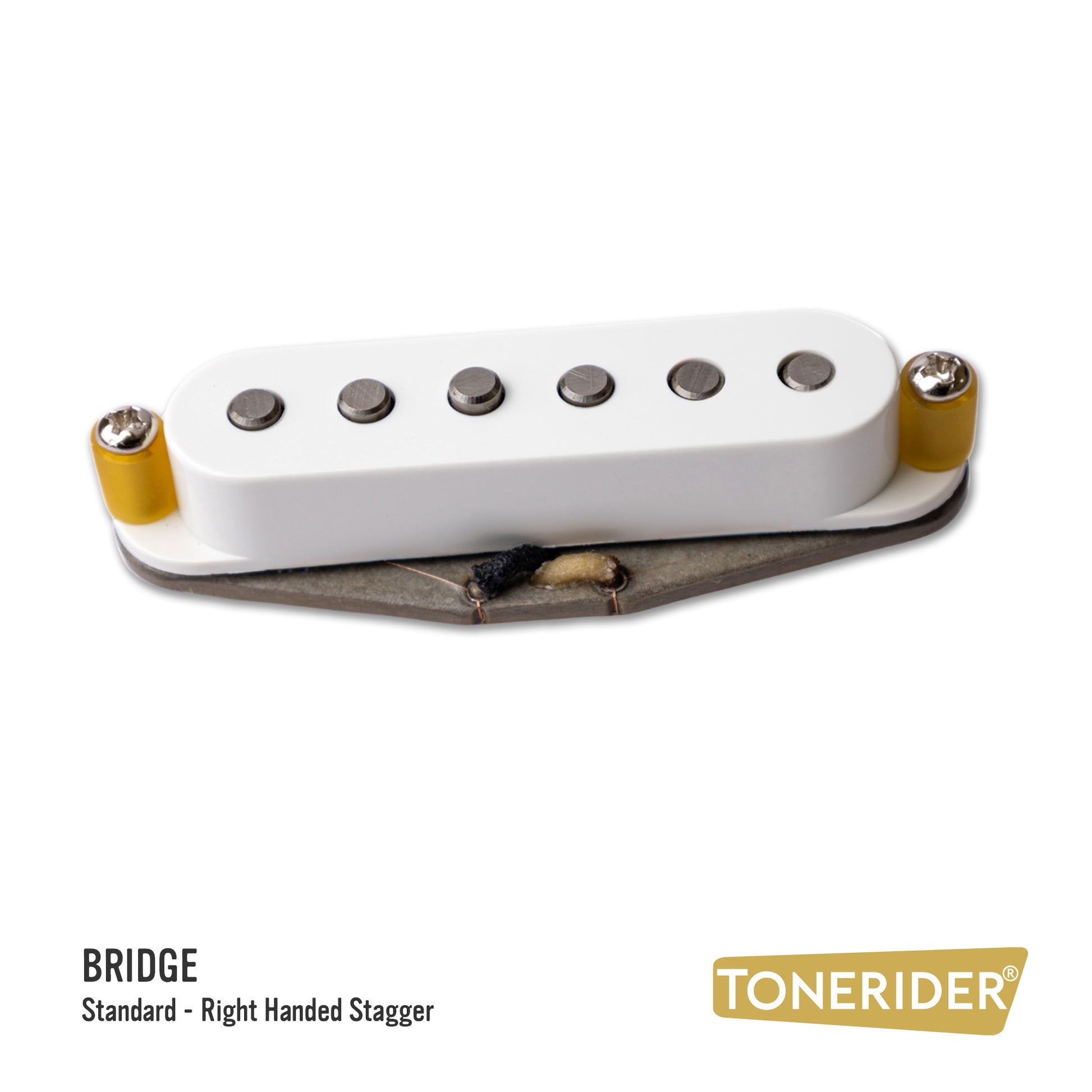

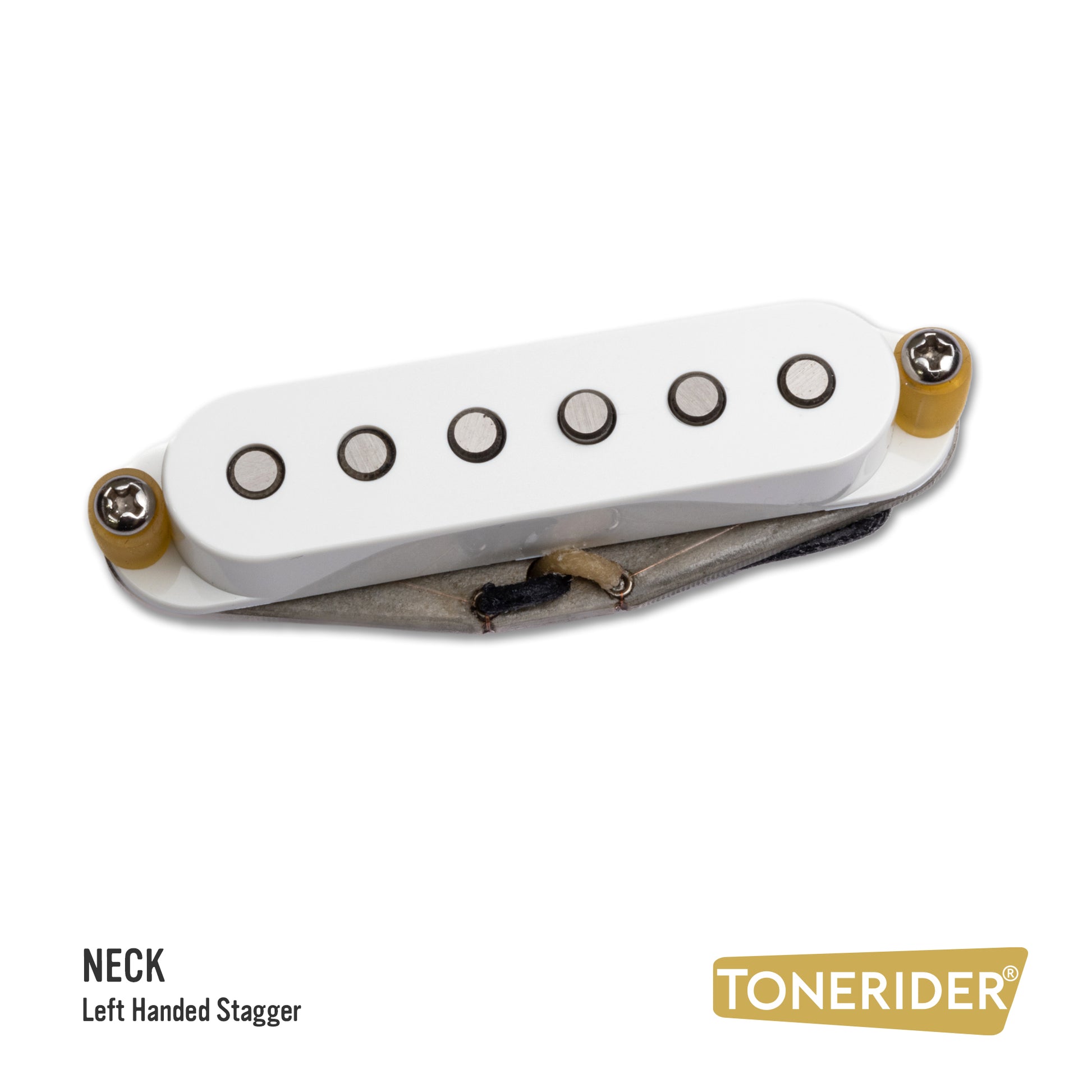

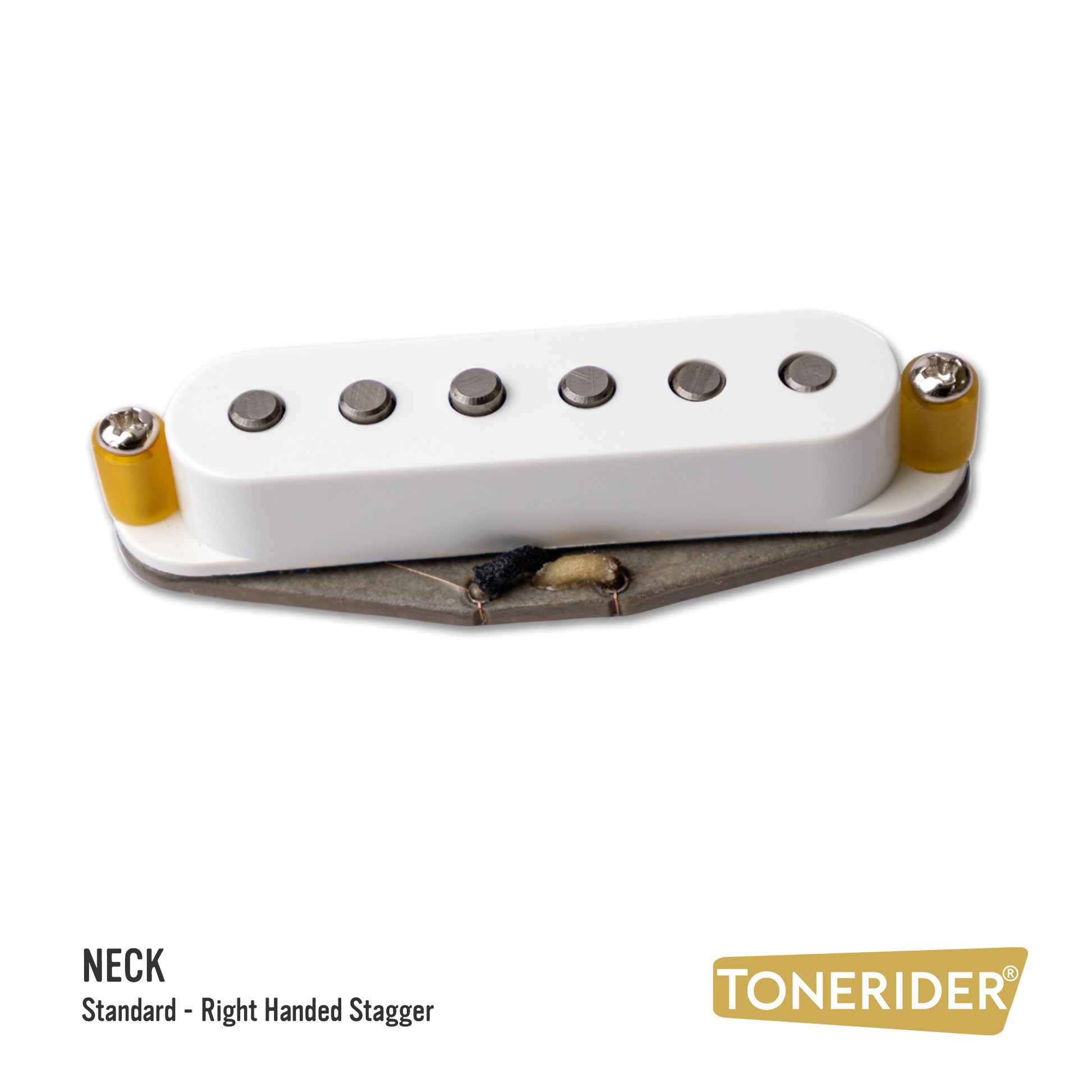

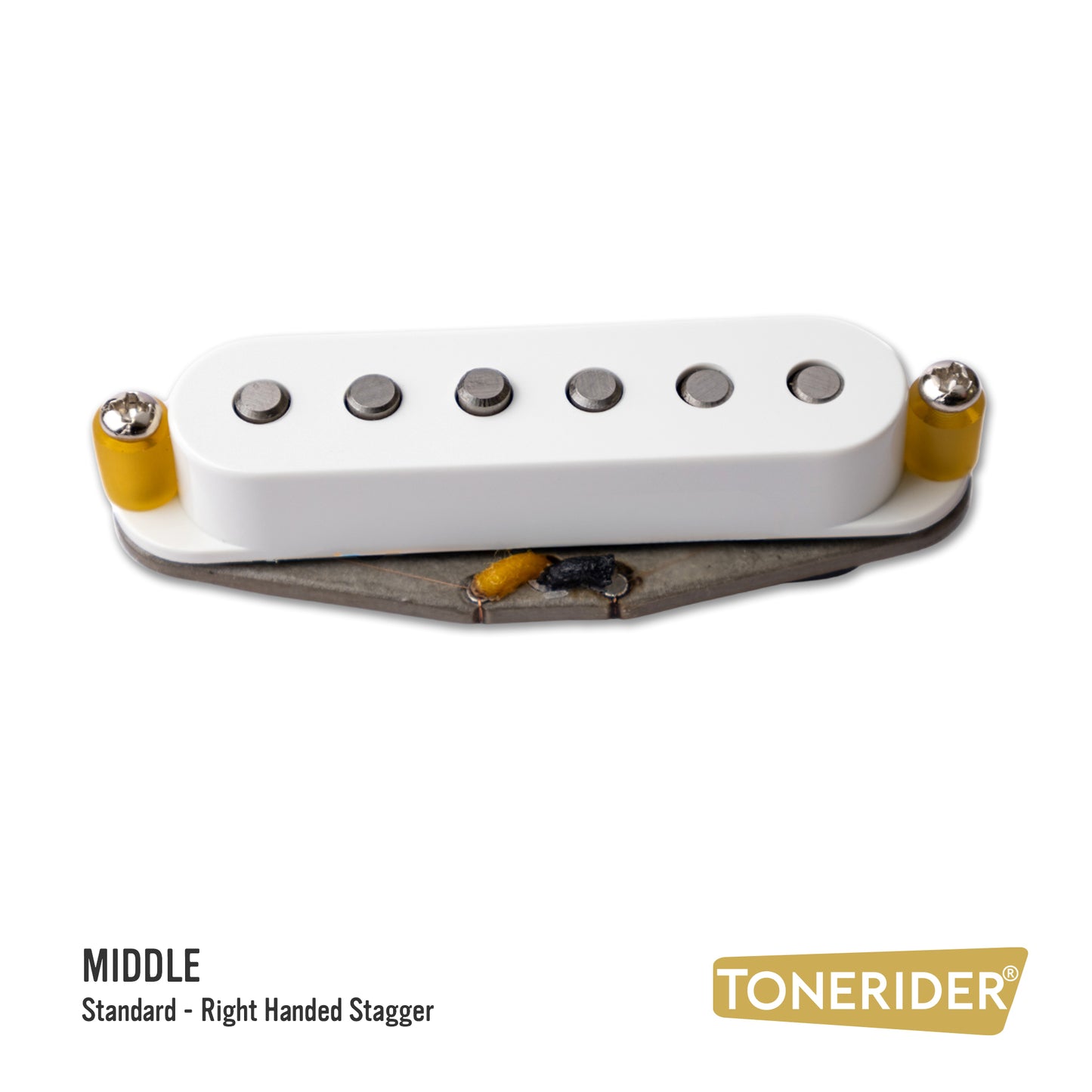

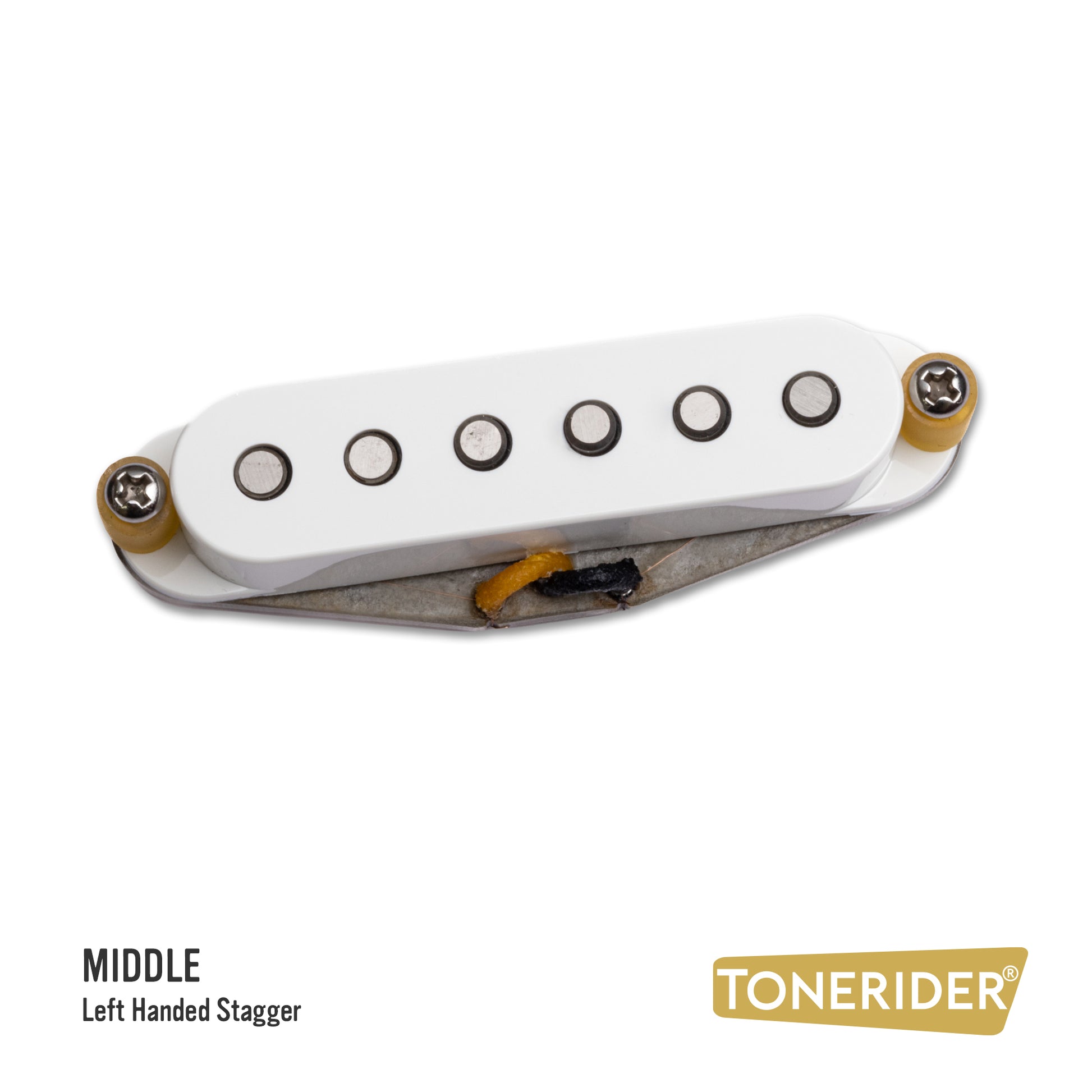

Alnico II Blues Neck | Alnico II Blues Middle | Alnico II Blues Bridge | |
---|---|---|---|
Model | S4N | S4M | S4B |
Magnet | Alnico 2 Rod | Alnico 2 Rod | Alnico 2 Rod |
DCR | 6.1k | 6.2k | 6.8k |
Inductance | 3.0H | 3.1H | 3.3H |
Stagger | TR Vintage Modified | TR Vintage Modified | TR Vintage Modified |
Hookup Wire | Vintage Braid | Vintage Braid | Vintage Braid |
Winding Direction | Clockwise | Counter-Clockwise | Clockwise |
Polarity | North Pole Up | South Pole Up | North Pole Up |
Dimensions
Installation & Wiring Diagrams
- 2 Humbuckers / 1 Single Coil / 1 Vol / 2 Tone / 5-Way Blade / DPDT Mini-Toggle Split
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade / Push-Pull Coil Split (Volume)
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade (Autosplit)
- 1 Humbucker / 2 Single Coils / 1 Vol / 1 Tone / 5-Way Blade (Autosplit)
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade
- 1 Humbucker / 2 Single Coils / 1 Vol / 1 Tone / 5-Way Blade
- 3 Single Coils / 1 Vol / 2 Tone / 5-Way Blade (Bridge Tone Mod)
- 3 Single Coils / 1 Vol / 2 Tone / 5-Way Blade
