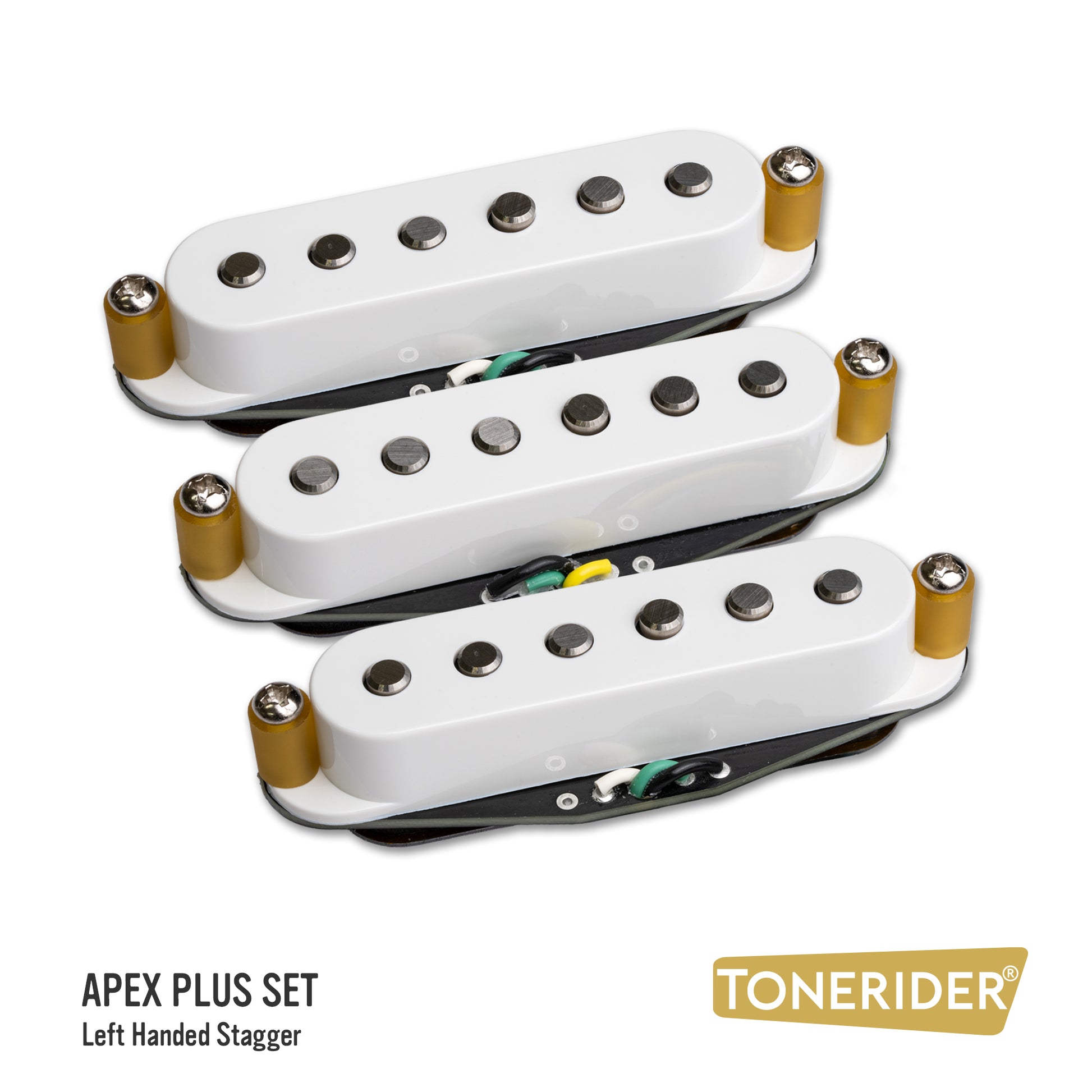

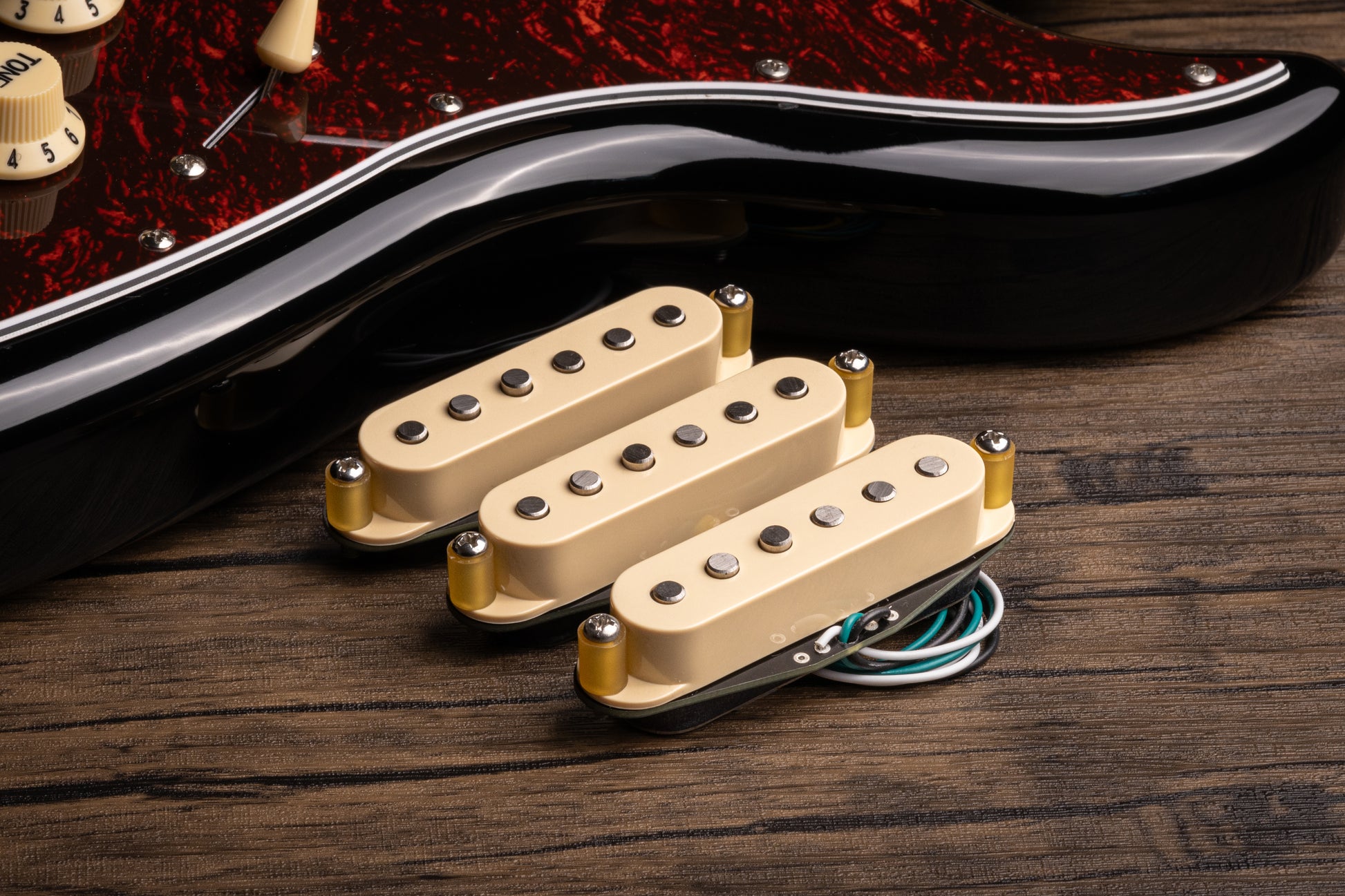

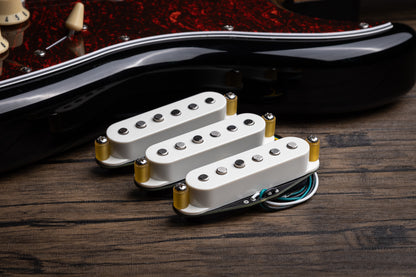

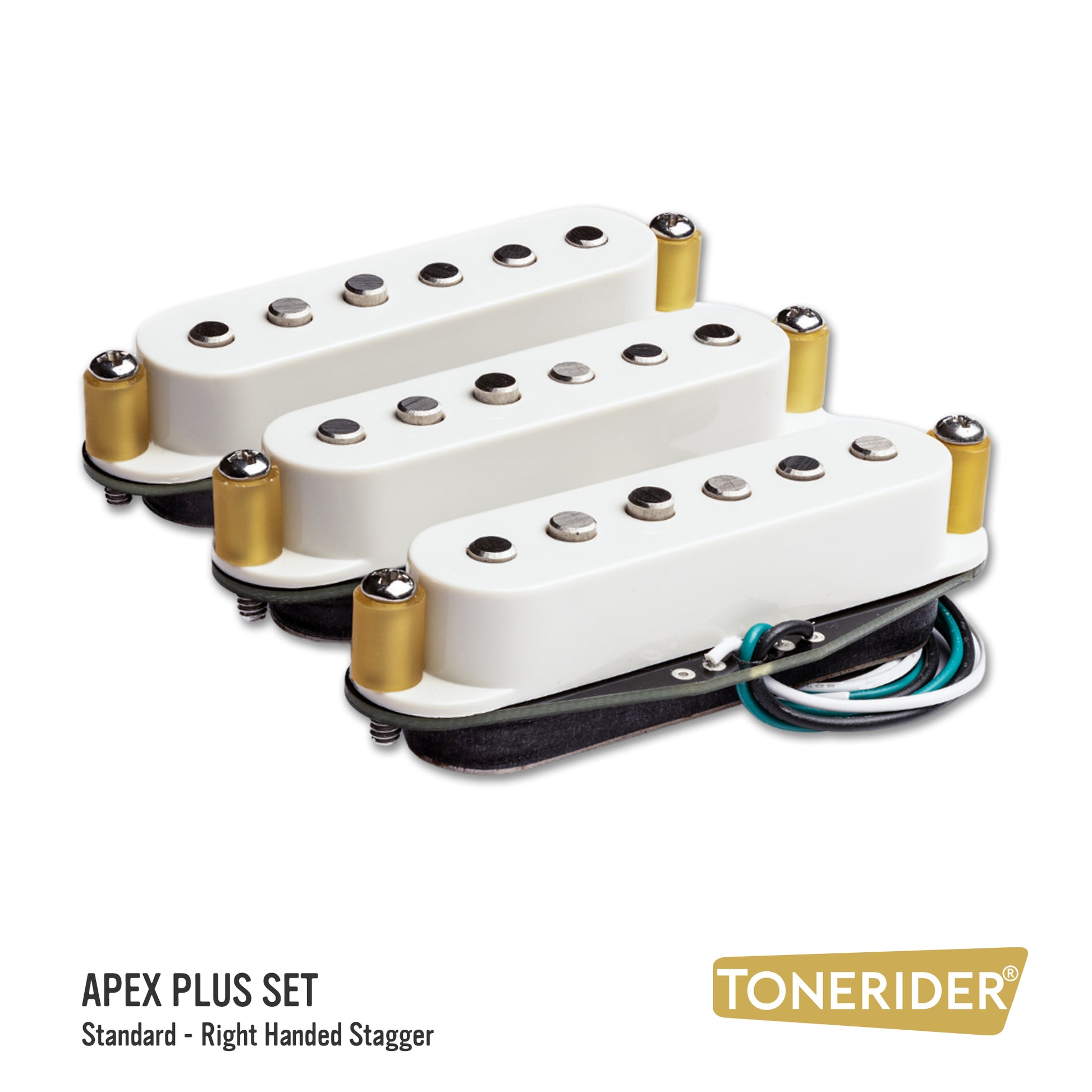

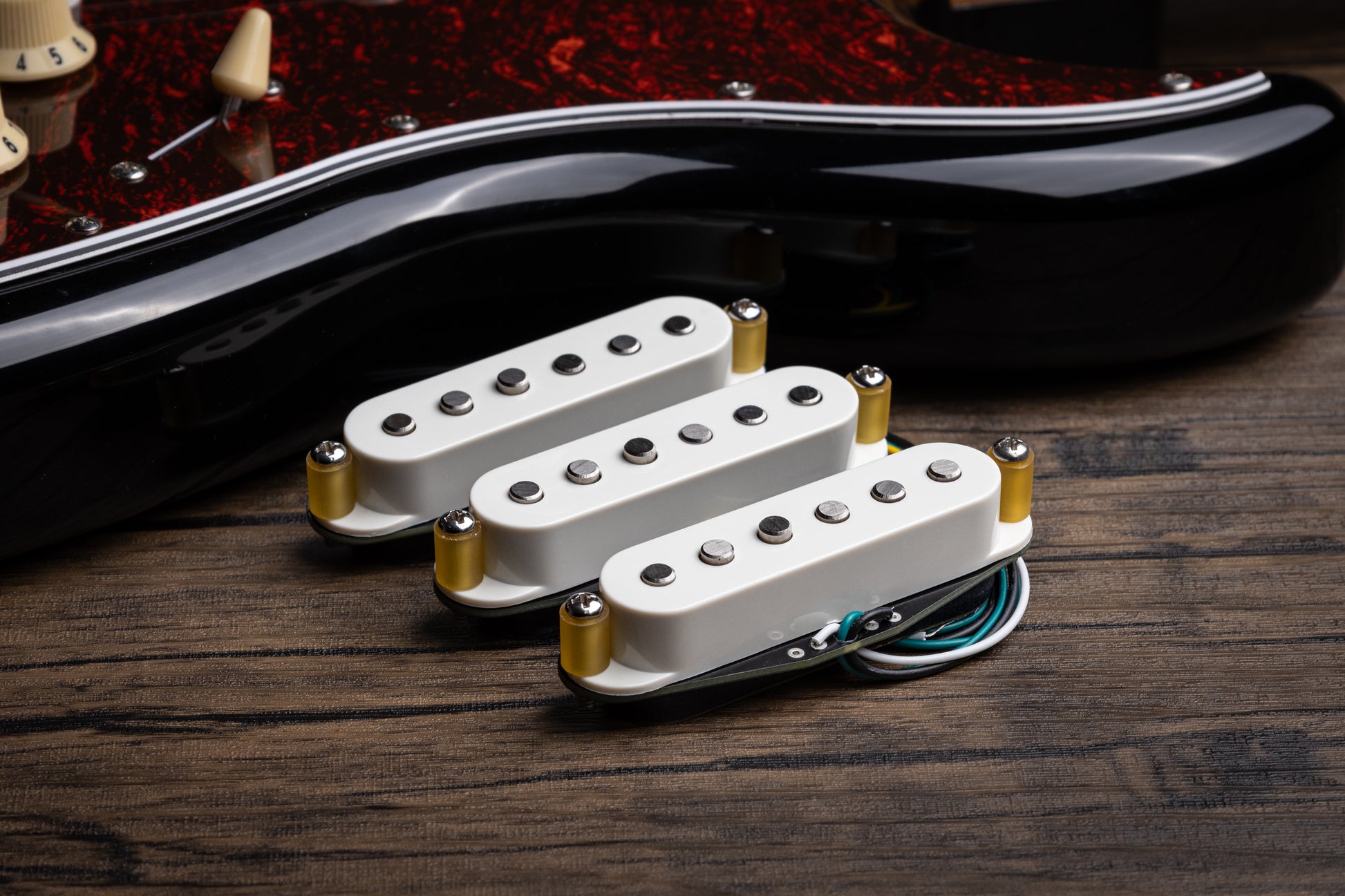

The Ultimate in Hot Strat Tone, with Class-Leading Hum-Cancellation
The Apex Plus set delivers punchy strat tone, perfect for Texas blues, rock and beyond. From searing solos to deep rhythm tones, our breakthrough design delivers mid-range muscle whilst maintaining single coil clarity, all with class-leading hum-cancellation. Single pickups excel in HSS and HSH sets.
From stage to studio, our twin coil design allows for the natural movement of the strings to be unimpeded. The Apex Plus doesn't have the harsh, nasal sound of many other hum-cancelling pickups. This breakthrough design delivers superb tone, even in the hard to recreate "quack" positions (2 and 4).
Made for Easy Installation

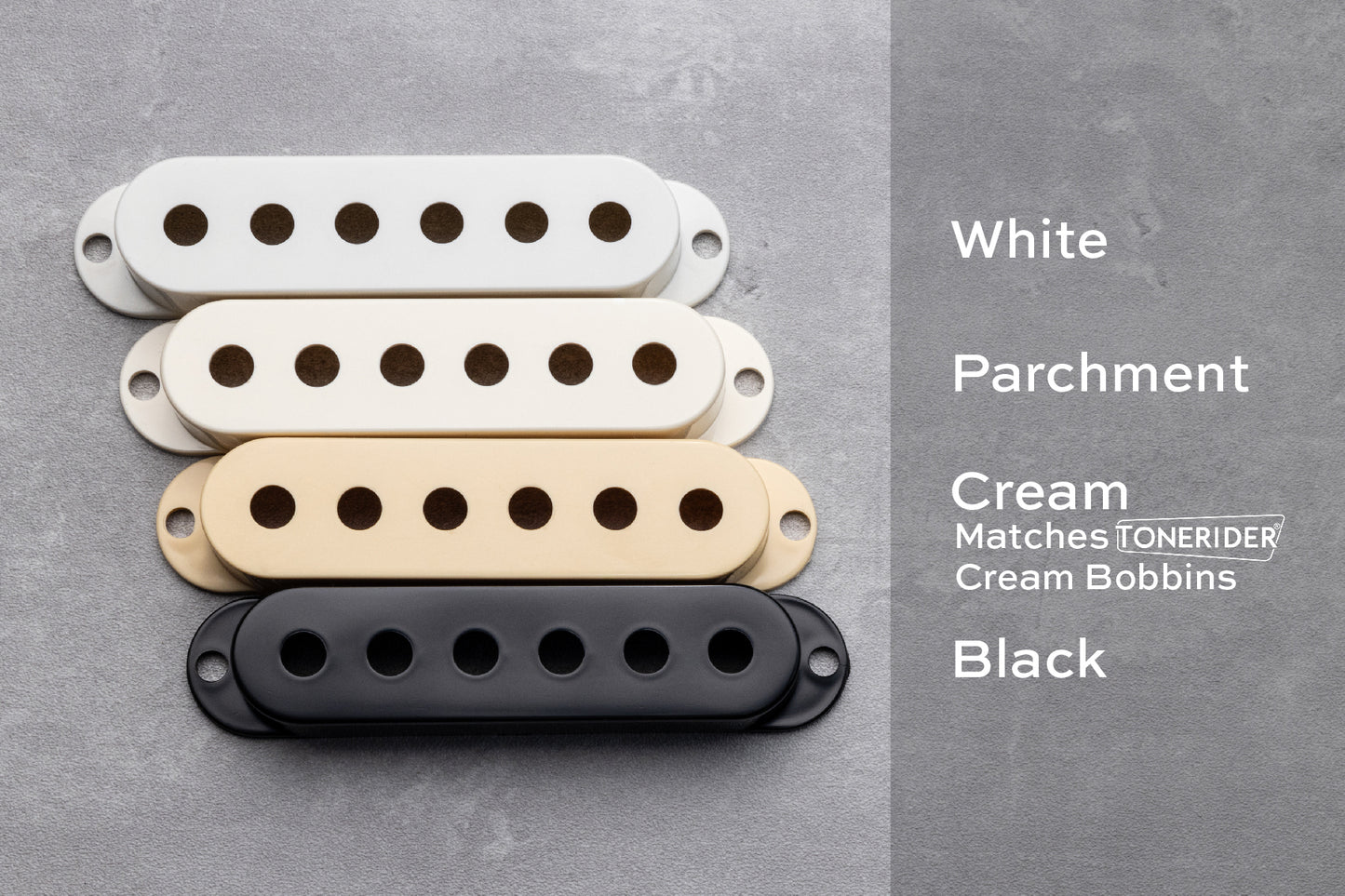

Each Apex Plus is just 0.8inches (20mm) tall, allowing for easy installation on guitars with vintage or modern pickup cavities without any routing required. In a first for hum-cancelling pickups, the Apex Plus use standard sized Strat covers - you'll have the option to use original Fender covers, or Tonerider's nylon covers in a range of colours.
Latex tubing and two sets of #6/32 screws are: Panhead for modern pickguards and countersunk for vintage pickguards.
All Apex Plus pickups are wax potted to avoid feedback.
Magnet: Alnico 5

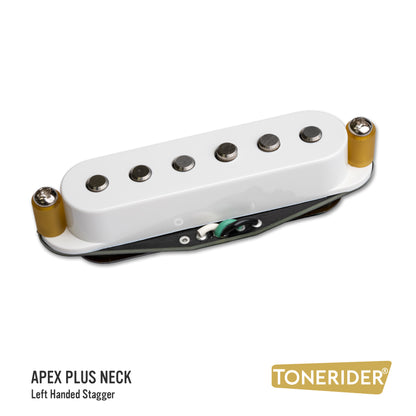

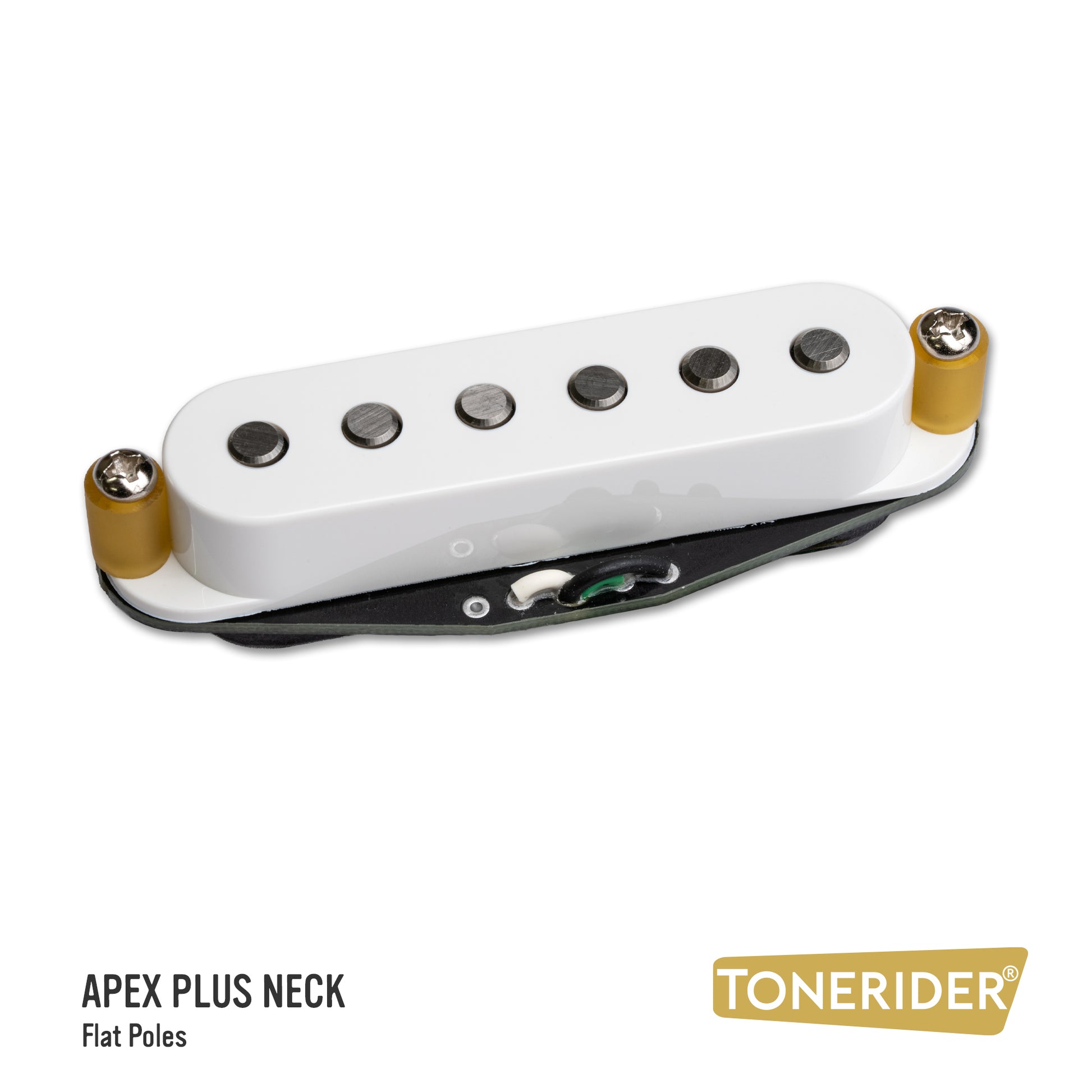

Neck: 9.9k

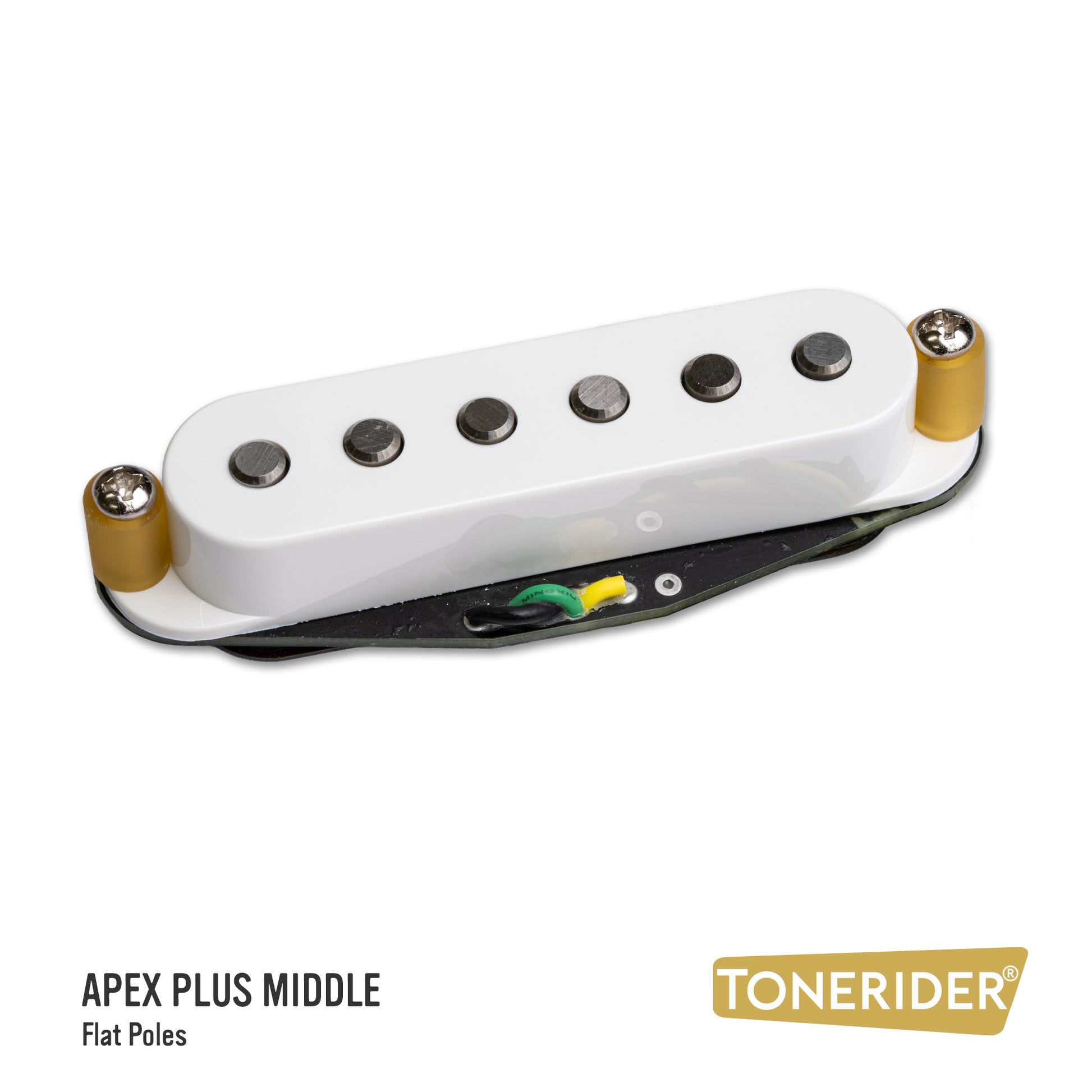

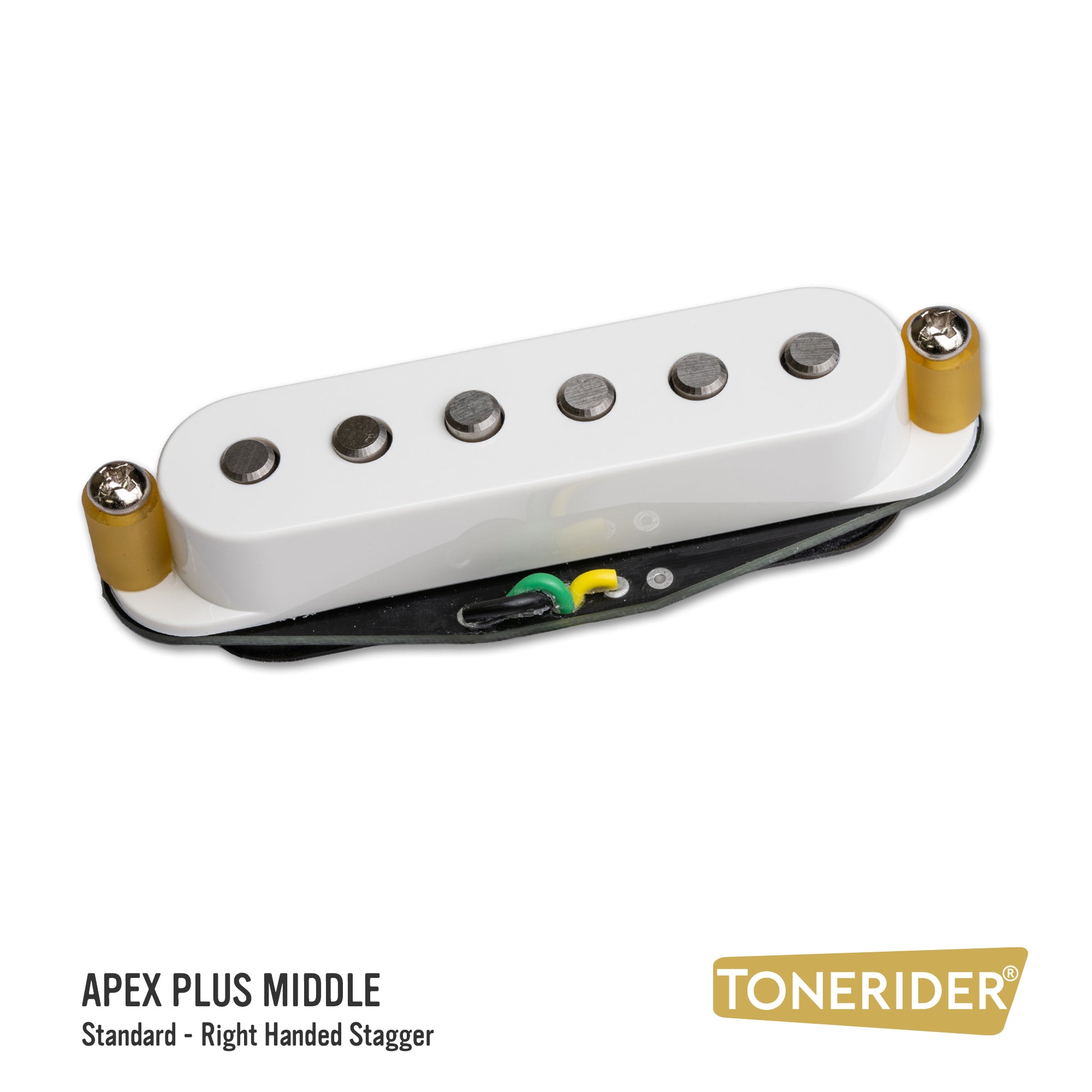

Middle: 10k

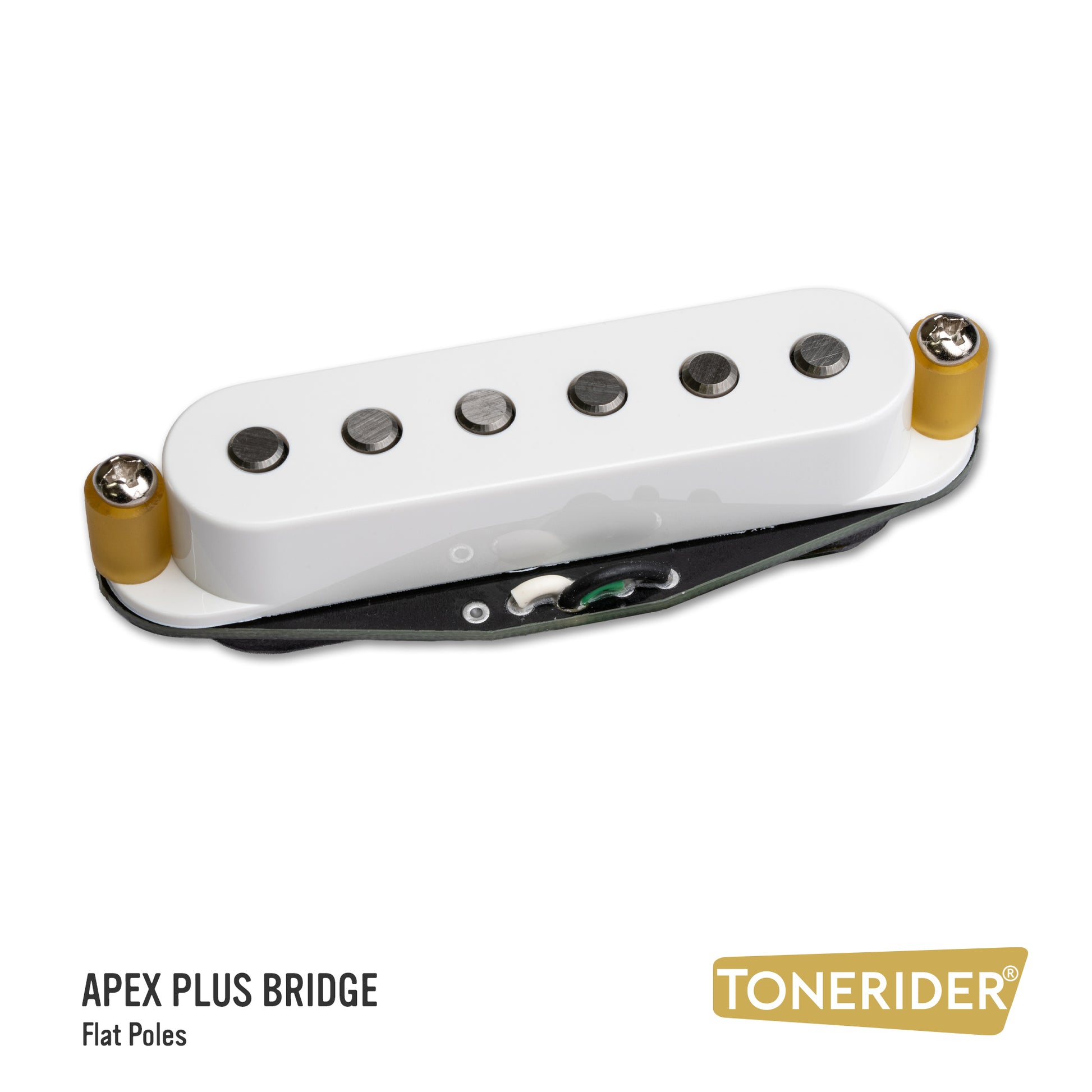

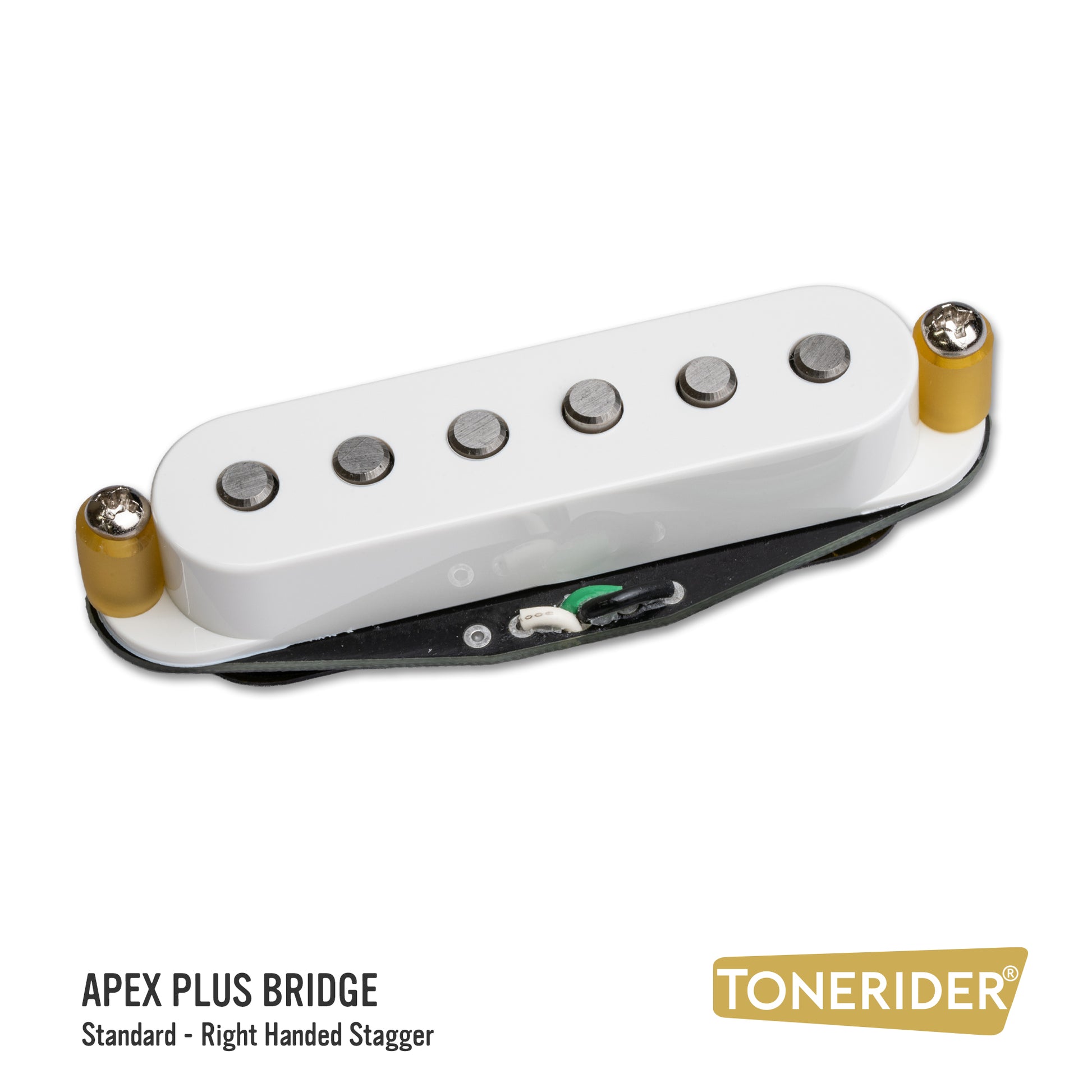

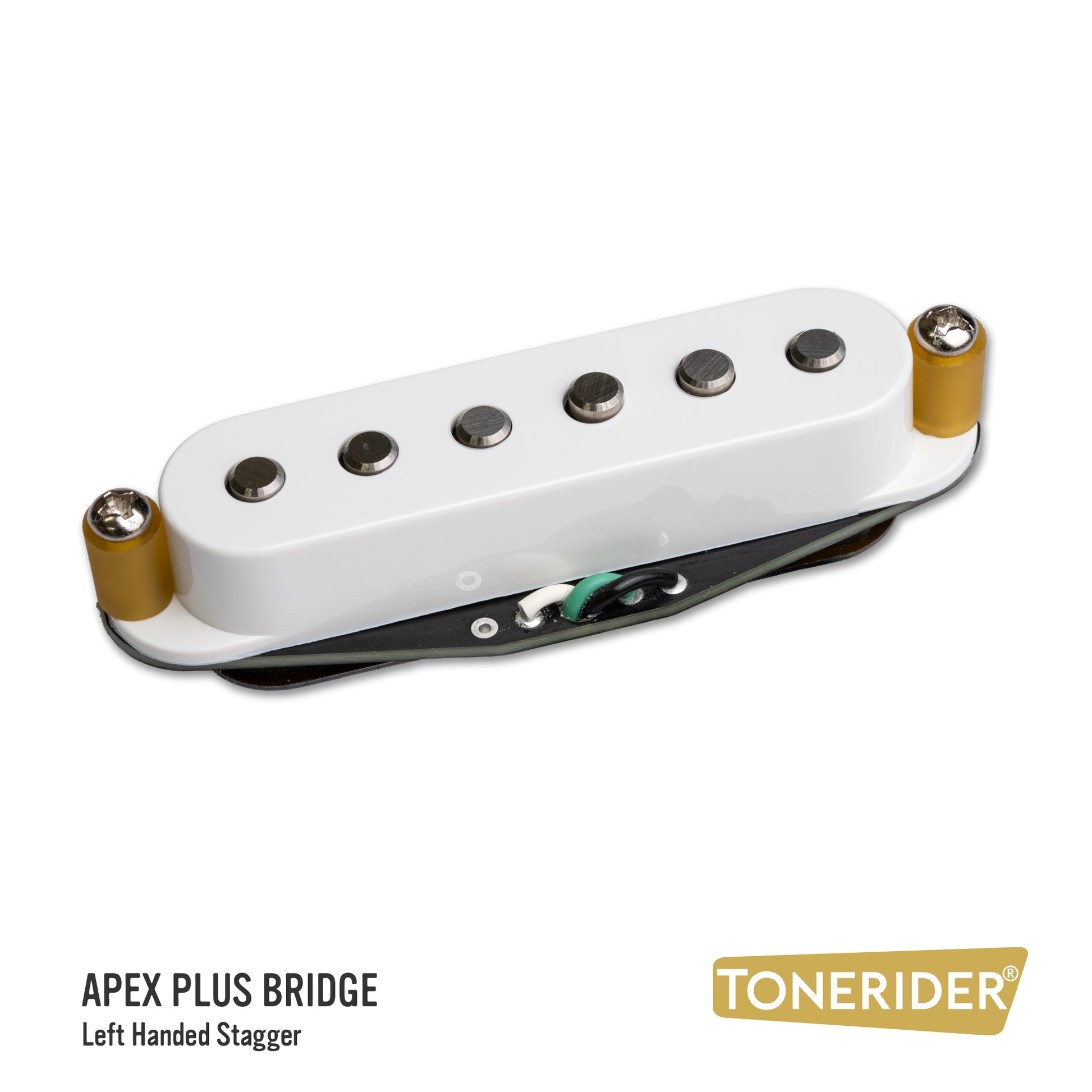

Bridge: 11k
Tech Specs
| Apex Plus Neck | Apex Plus Middle | Apex Plus Bridge | |
|---|---|---|---|
| Model | APS2-N | APS2-M | APS2-B |
| Magnet | Alnico 5 | Alnico 5 | Alnico 5 |
| DCR | 9.9k | 10k | 11k |
| Inductance | 3.7H | 3.9H | 4.38H |

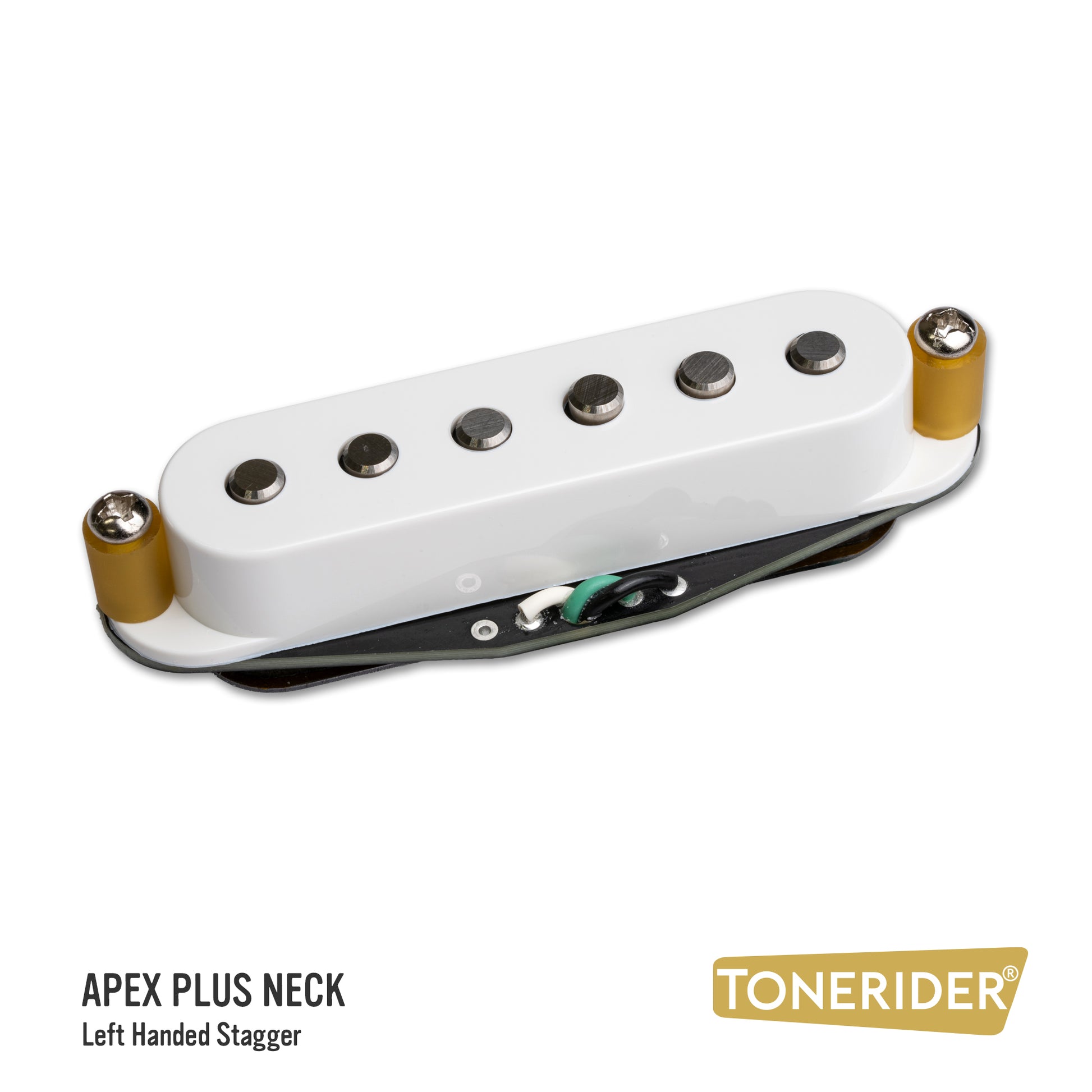

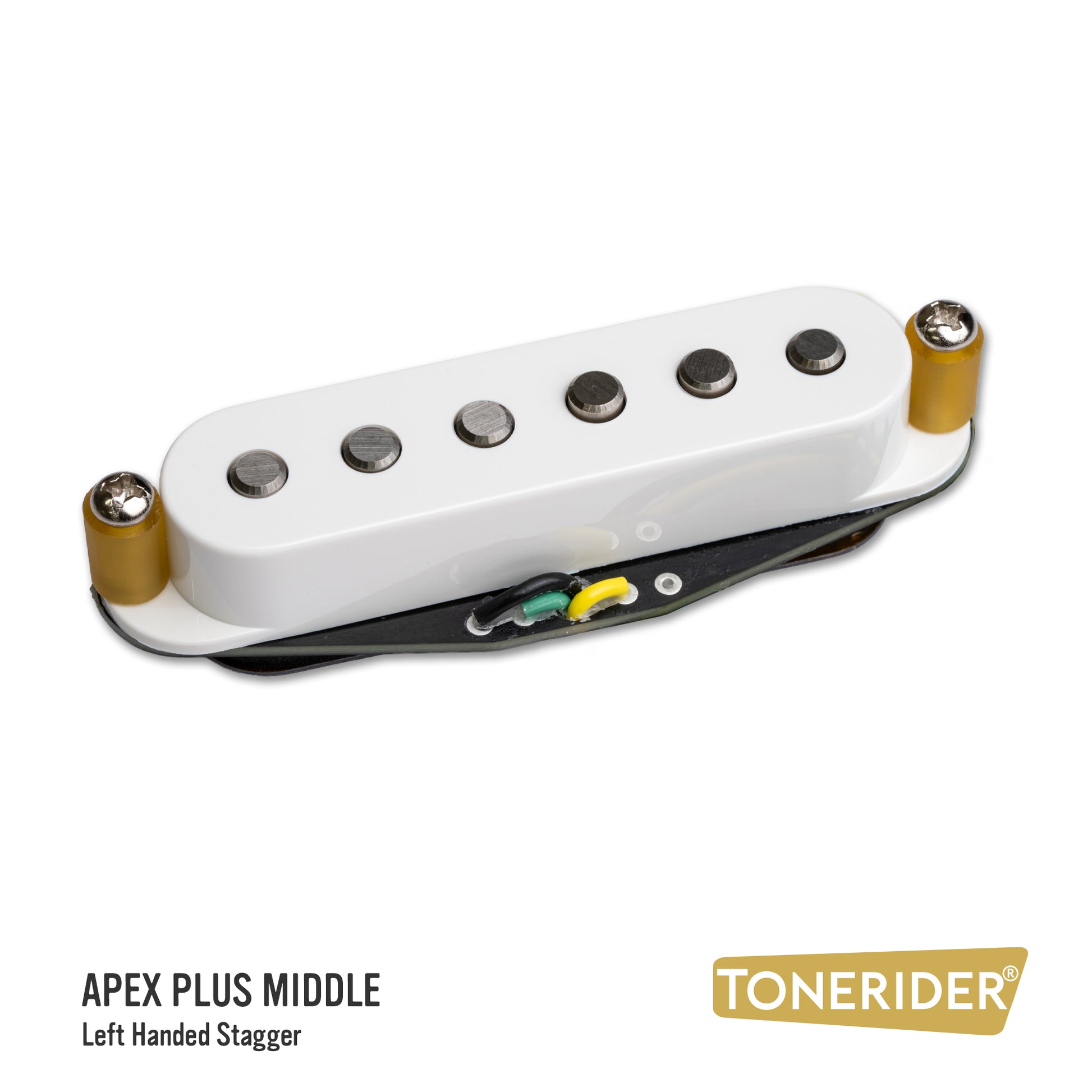

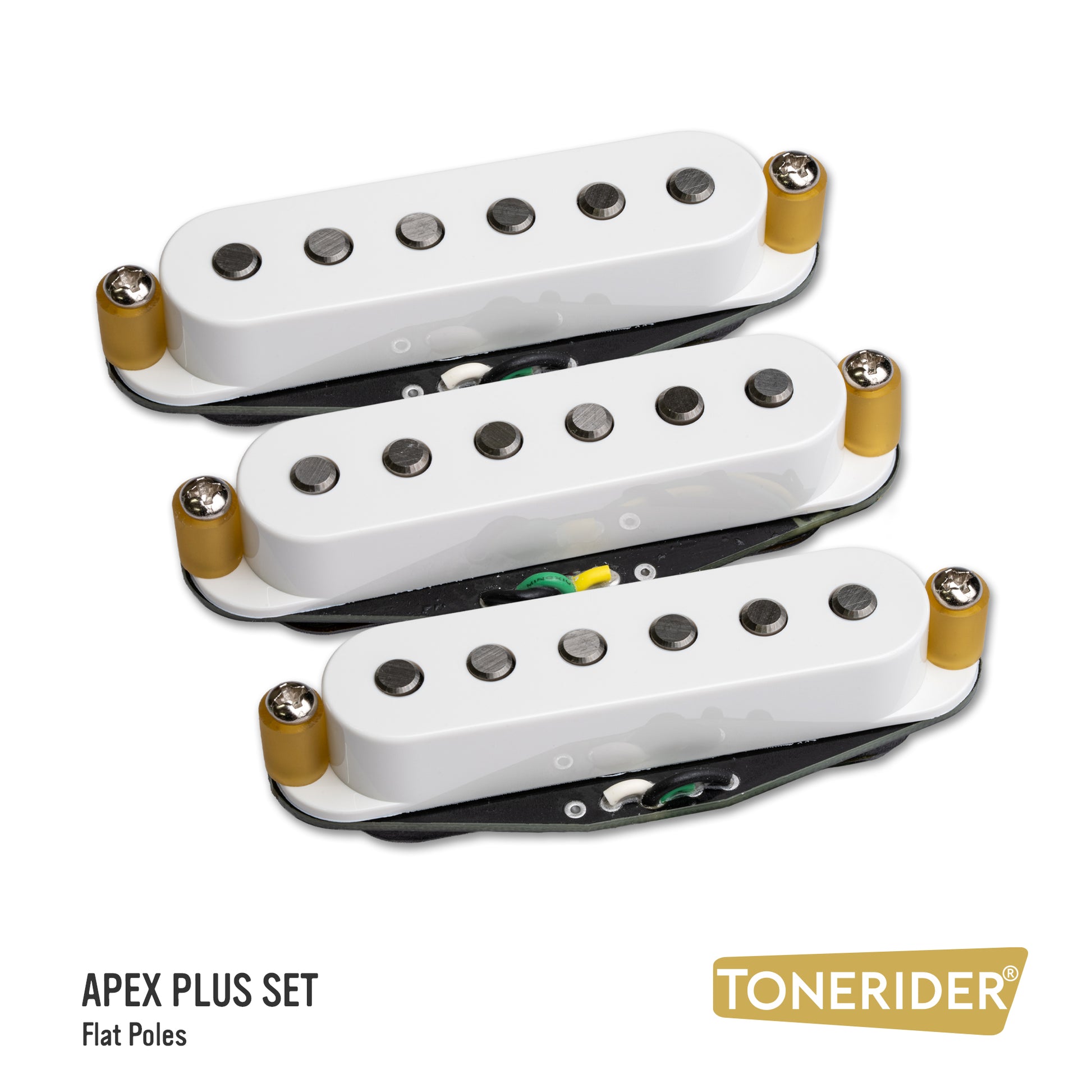

| Magnet Stagger Options | Right, Left or Flat | Right, Left or Flat | Right, Left or Flat |
| Hookup Wire | XLPE | XLPE | XLPE |
Dimensions
Wiring Diagrams
