Full Description

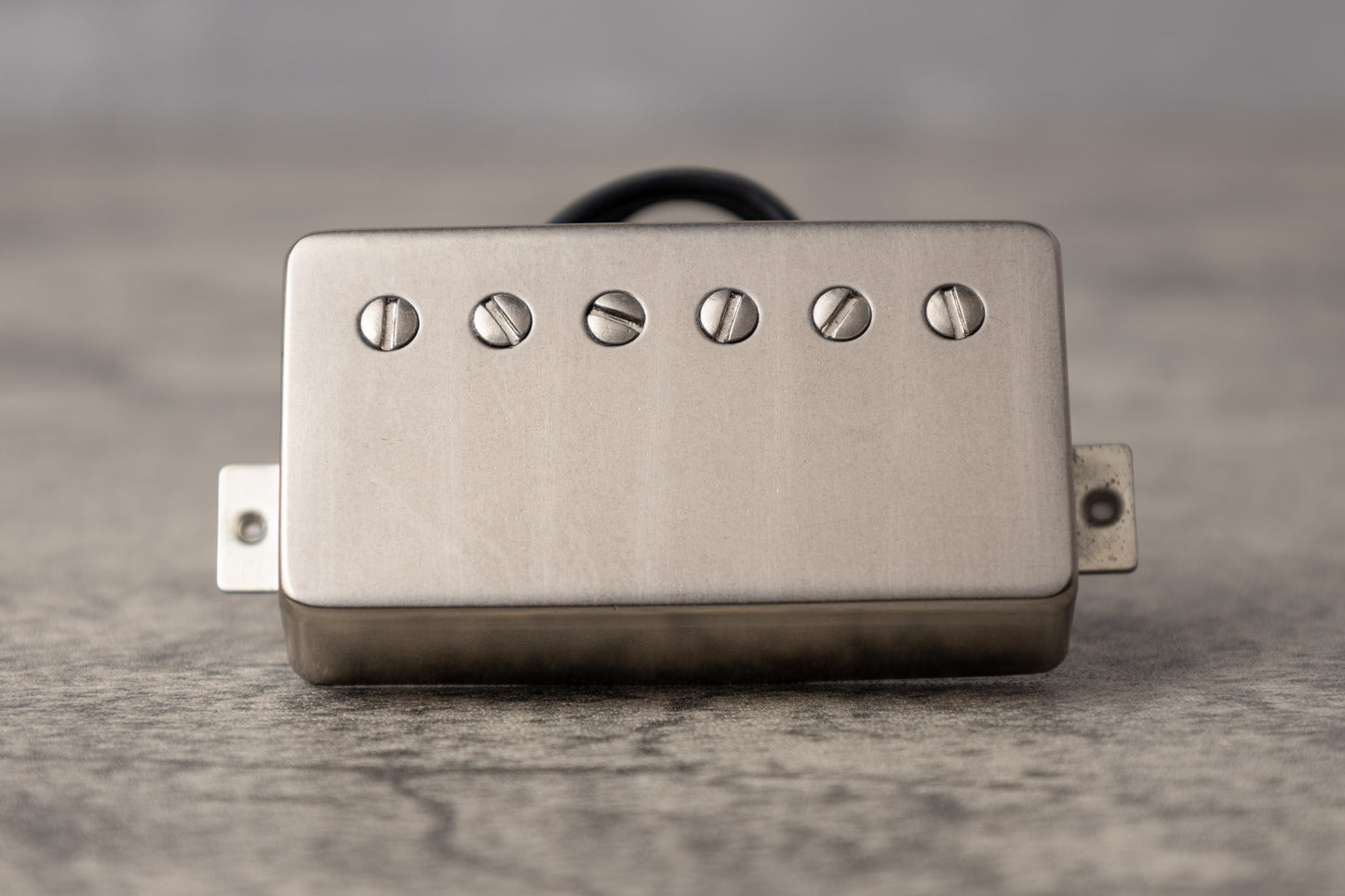

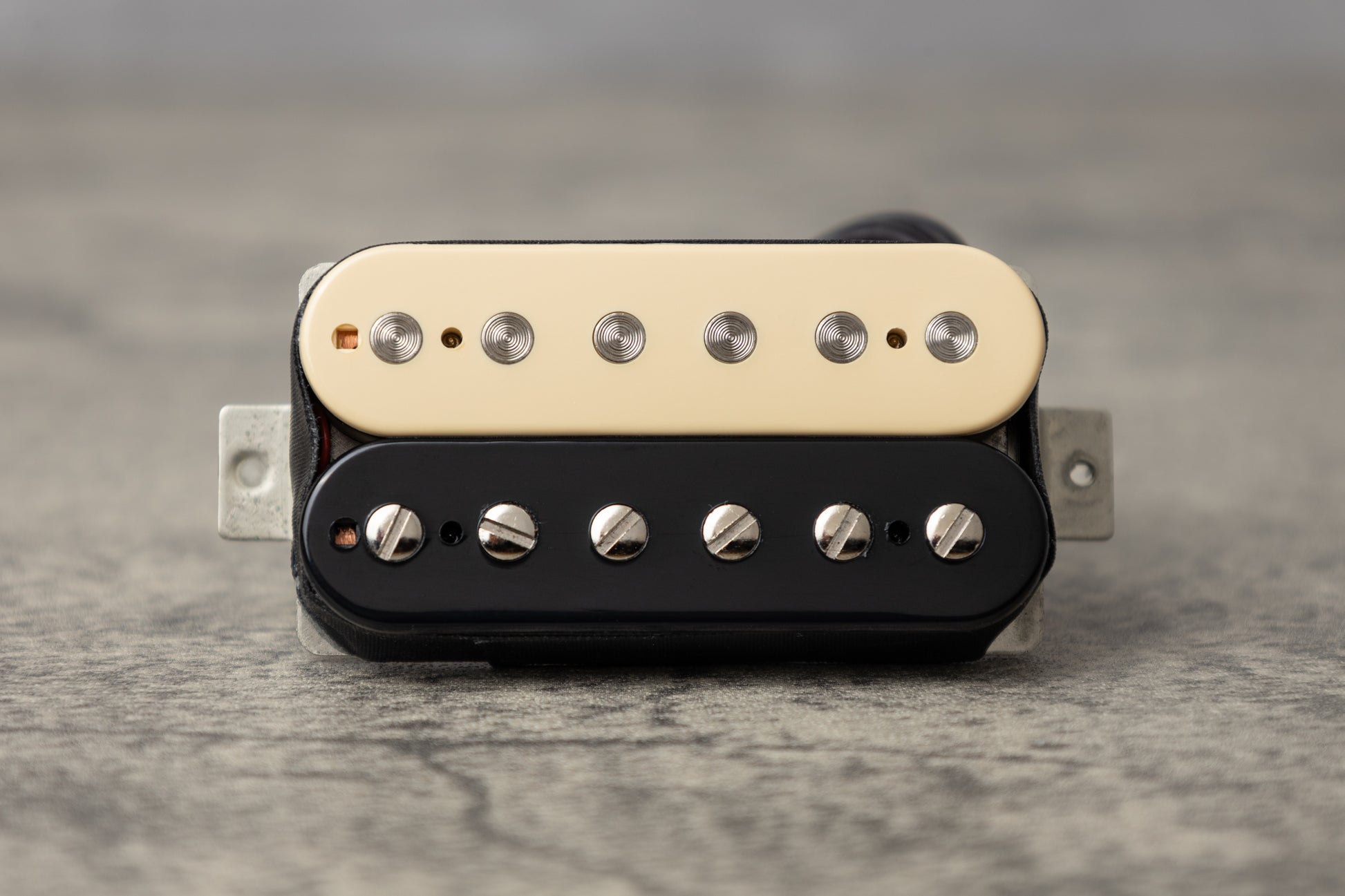

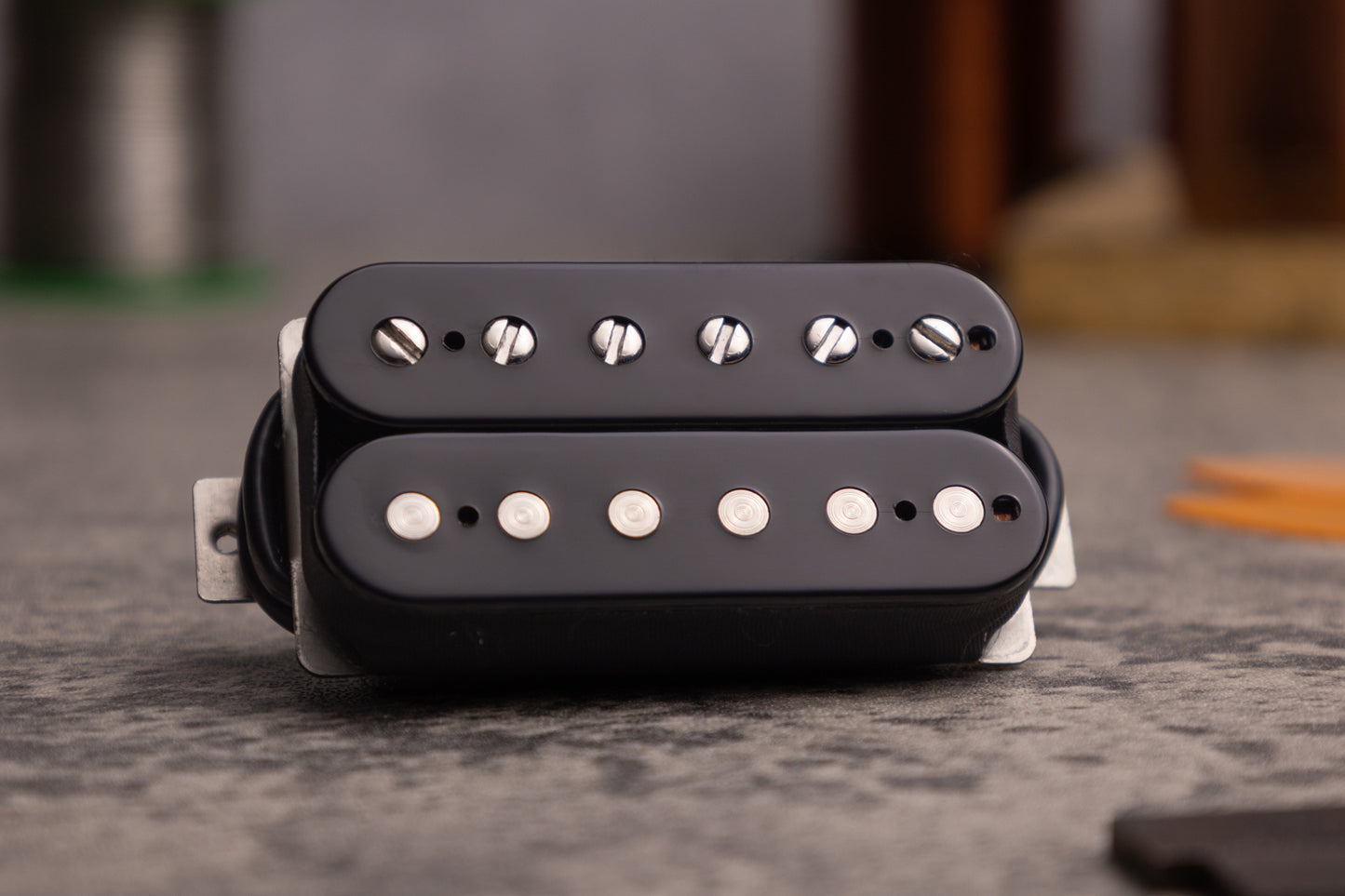

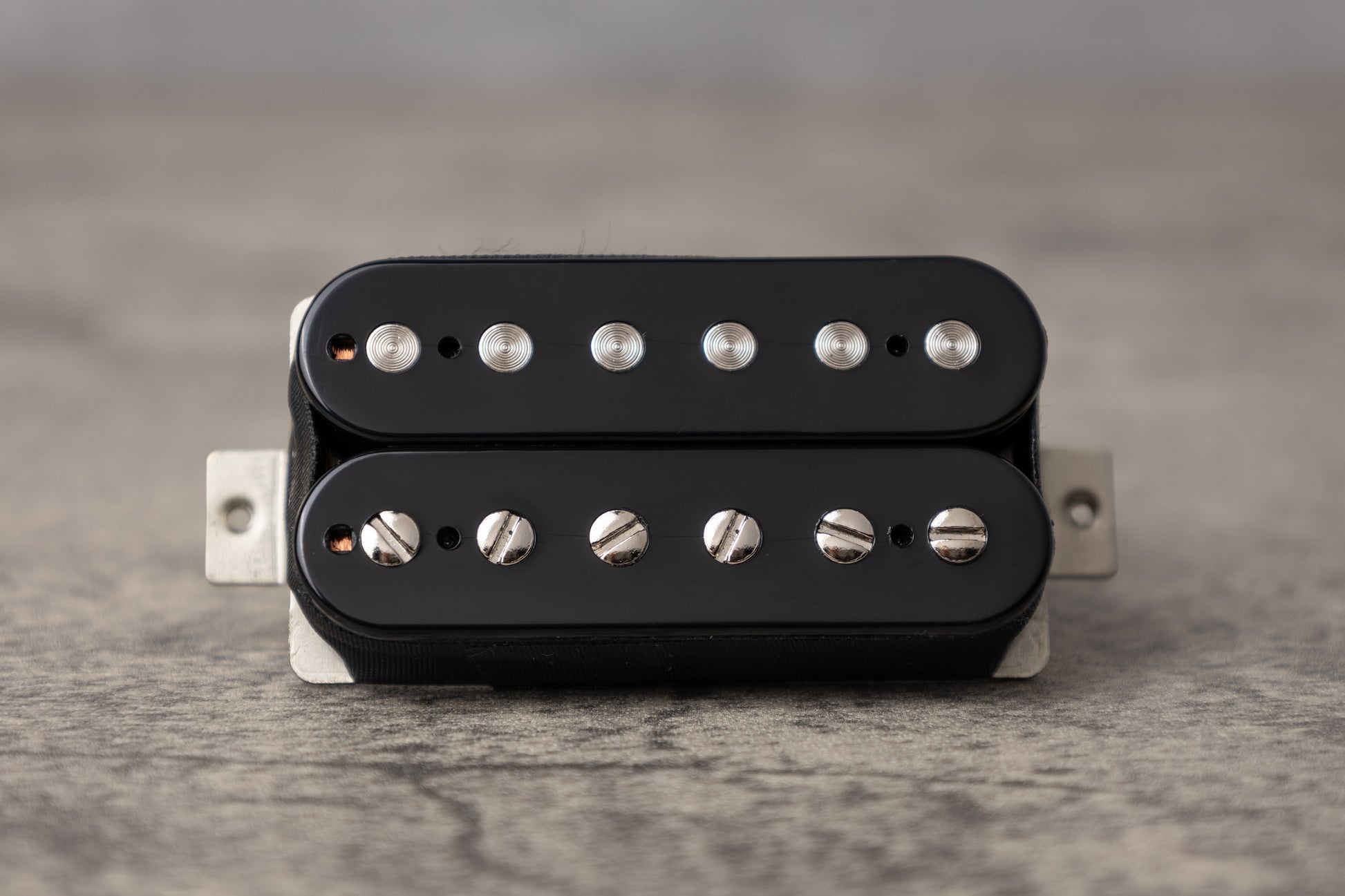

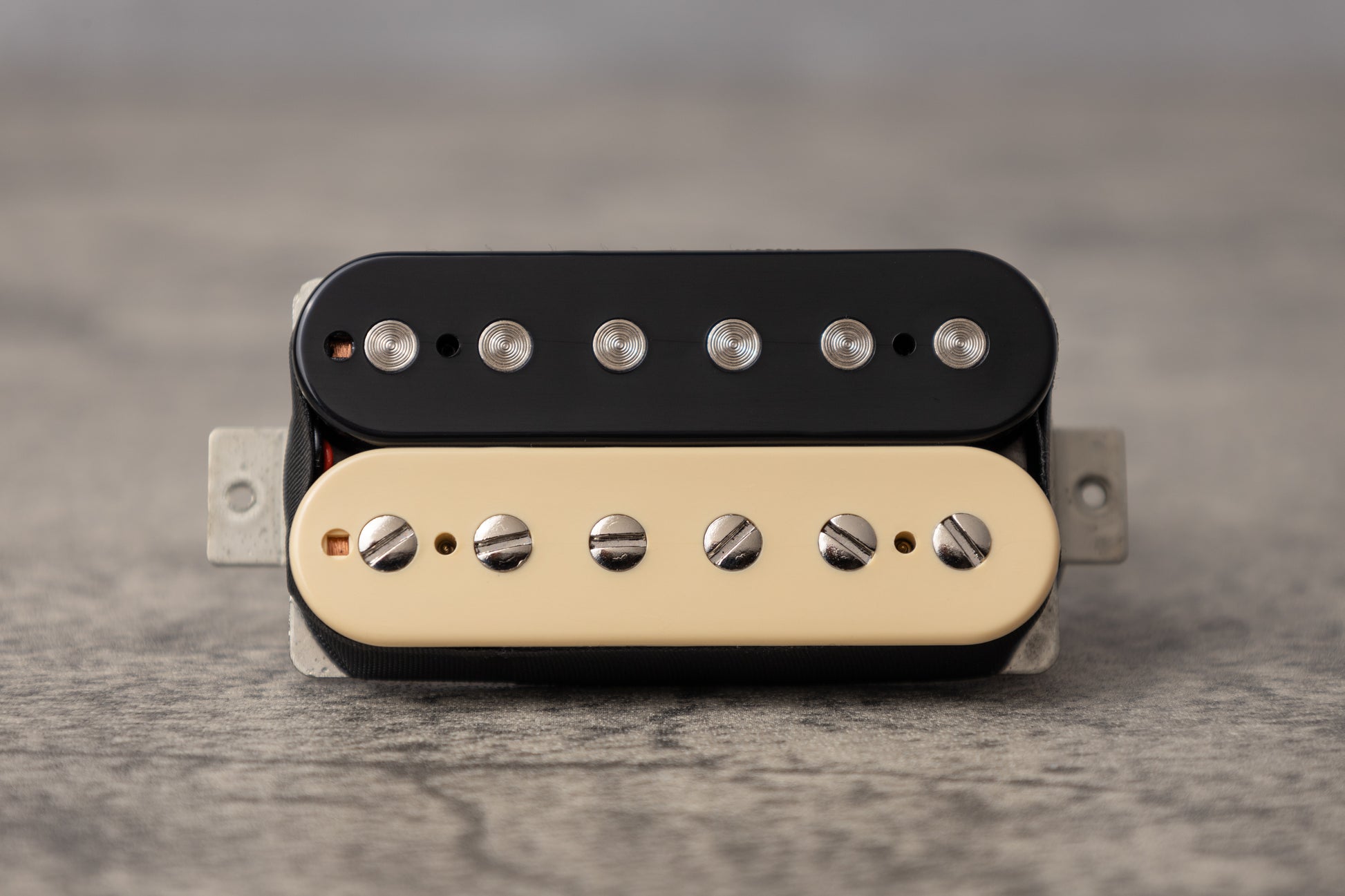

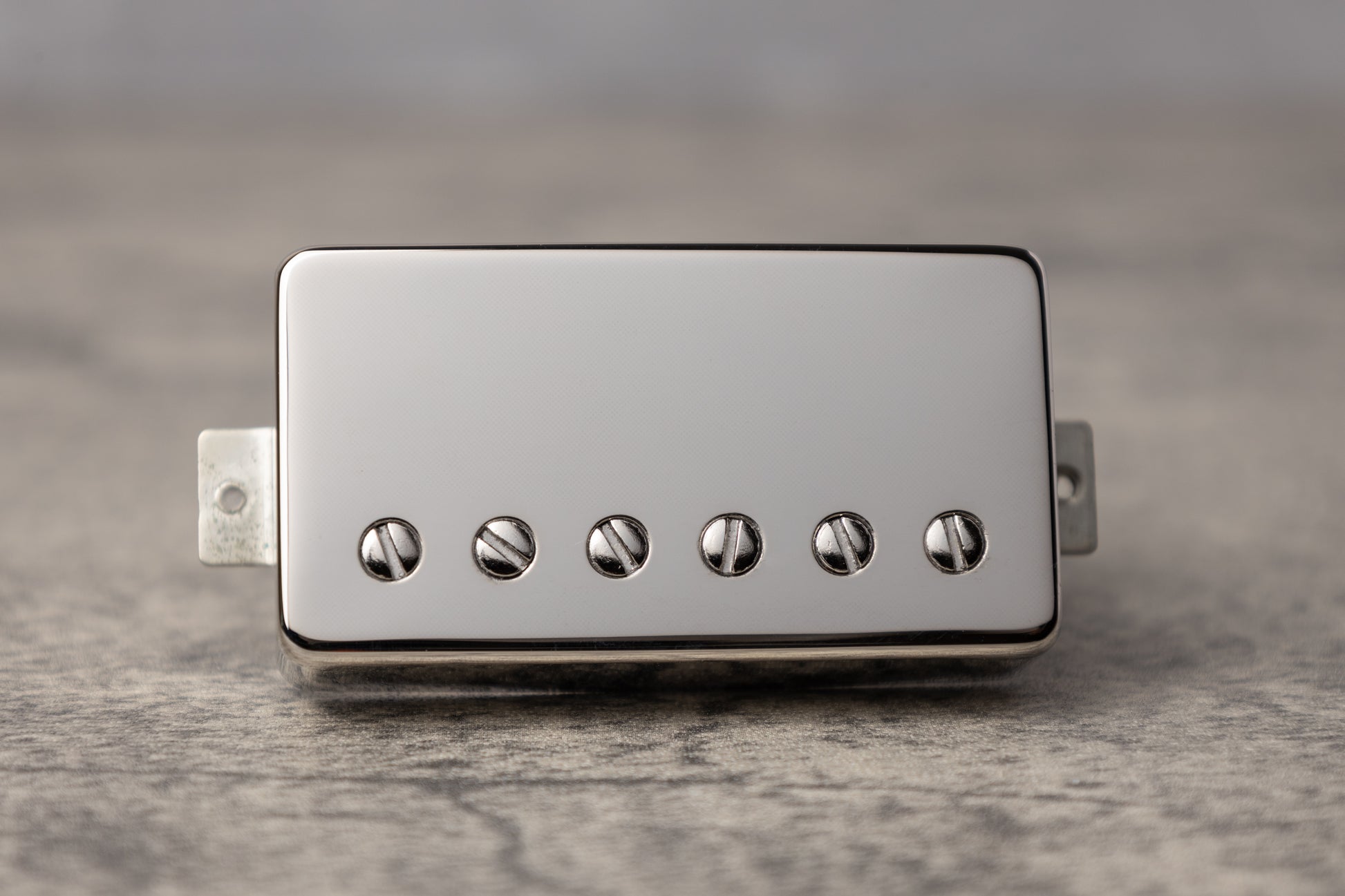

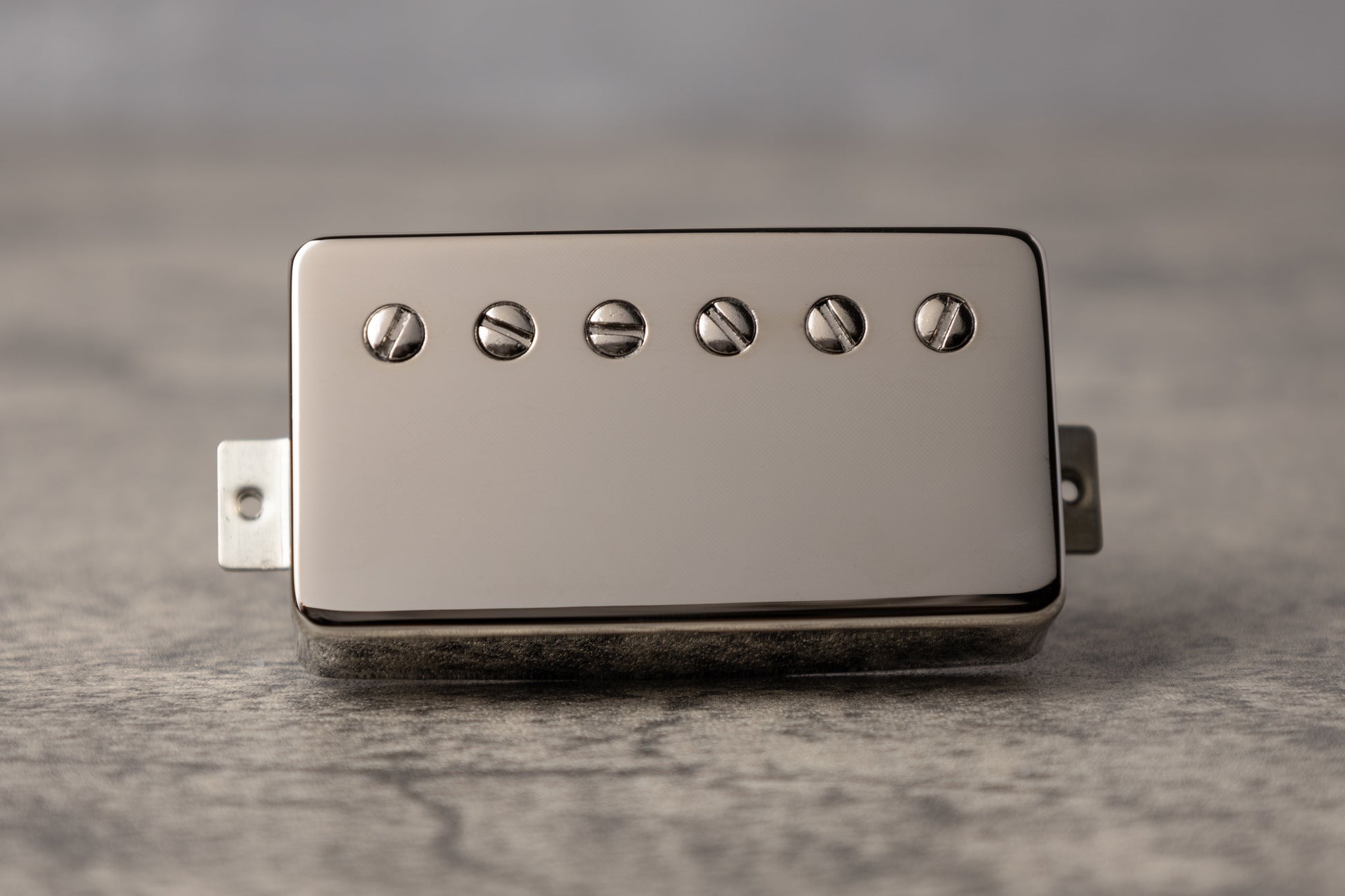

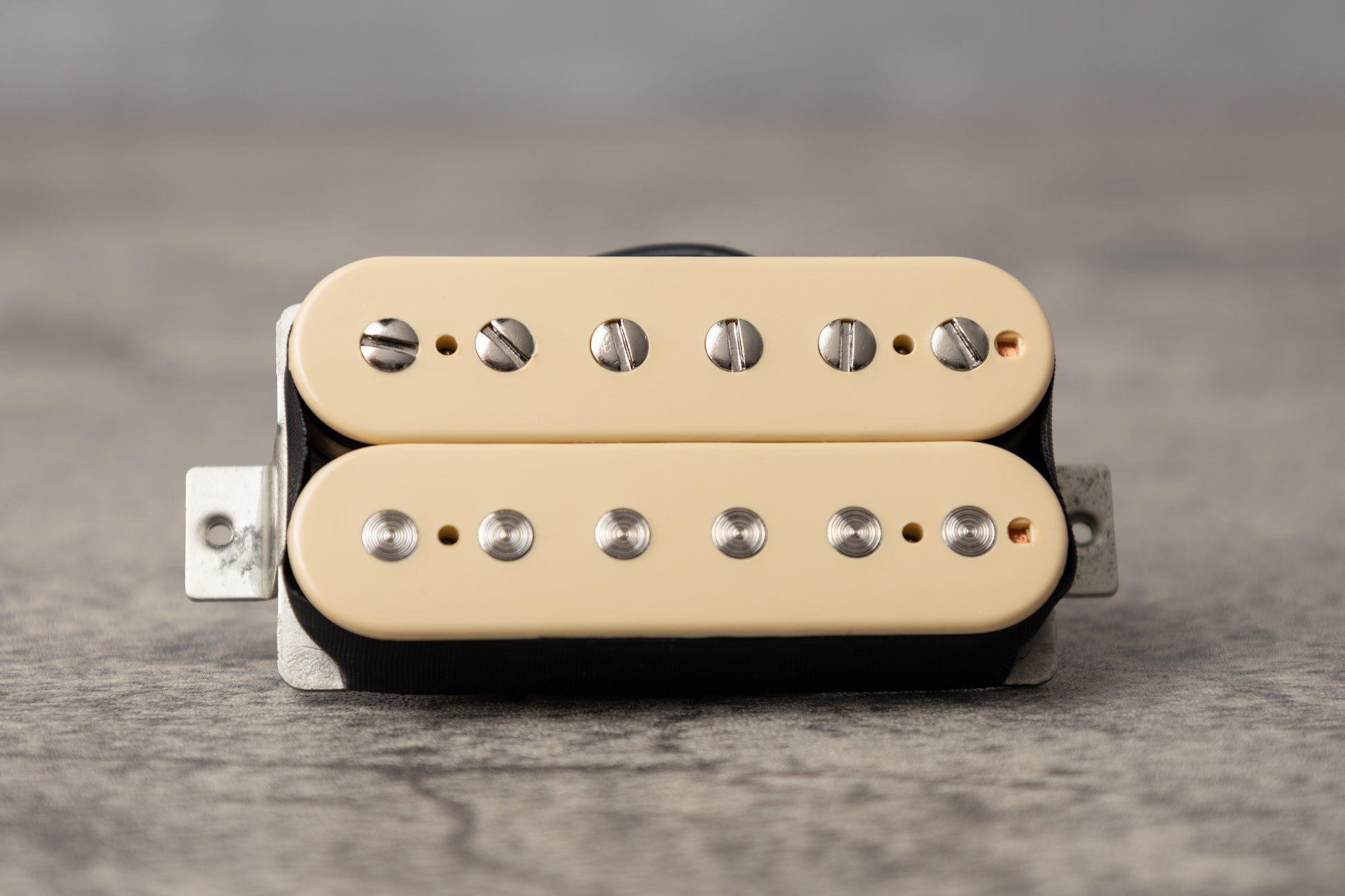

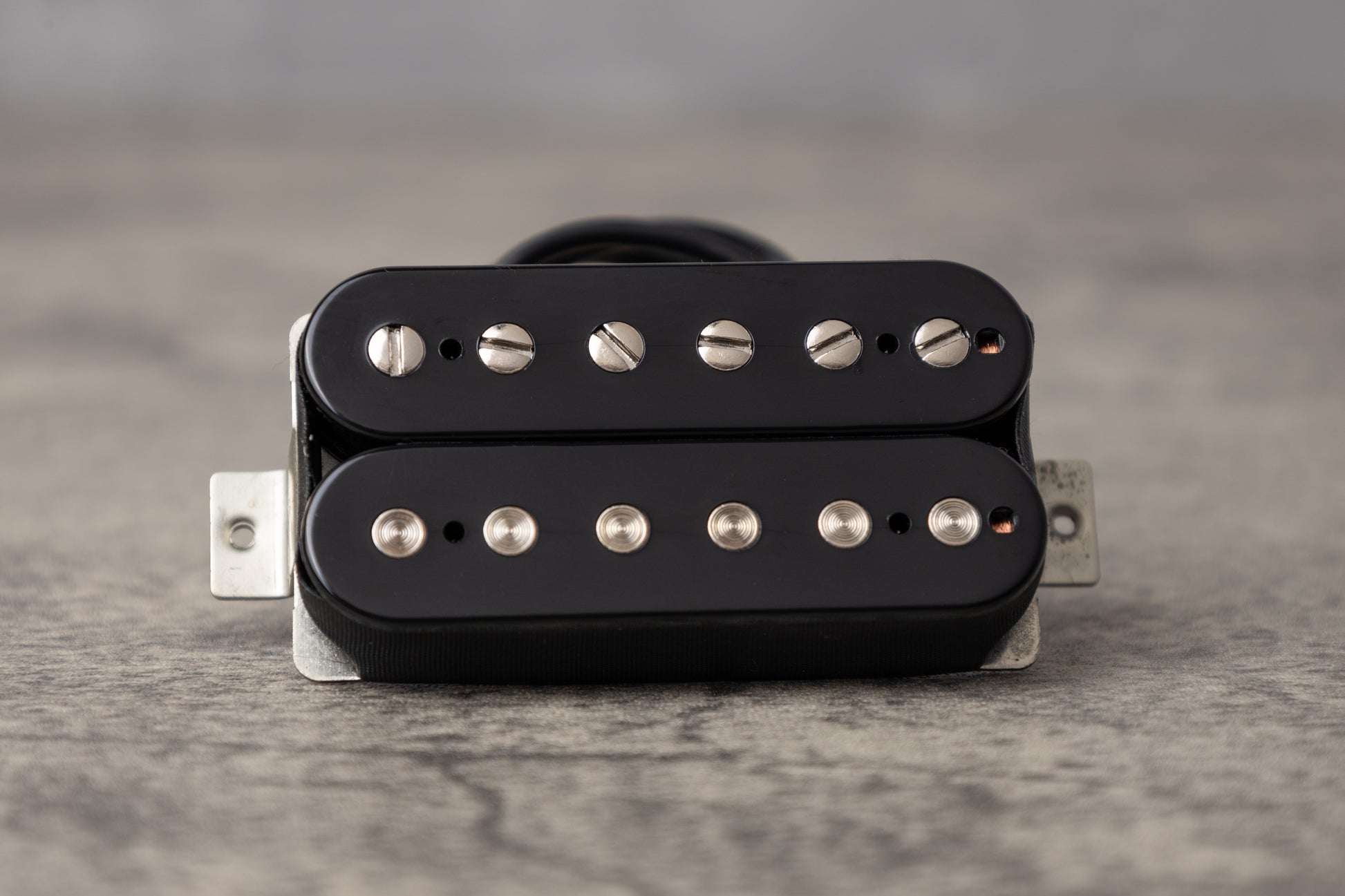

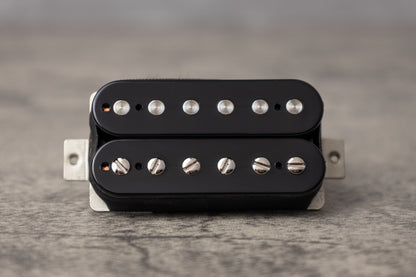

Birmingham, England meet Birmingham, Alabama! This humbucker set delivers classic British crunch and huge mids, but also splits to a killer Southern single coil sound.
The Birmingham takes the best of your favourite 70s tones and slams them into one great humbucker set. Think Angus, Jimmy, Tony and the rest!
All Birmingham pickups are fully wax potted to avoid microphonic feedback, and come supplied with #3/48 screws, springs and an installation guide.
Available individually or as a set. Four conductor wiring as standard.
Neck 7.2k / Bridge 8.7k / F-spaced Bridge 8.9k, Alnico V
Tech Specs
Birmingham Neck | Birmingham Bridge | |
---|---|---|
Model | AC5N | AC5B |
Magnet | Alnico V Bar | Alnico V Bar |
DCR | 7.2k | 8.7k (F-spaced 8.9k) |
Inductance | 4.2H | 5.5H |
Hookup Wire | 4-Conductor | 4-Conductor |

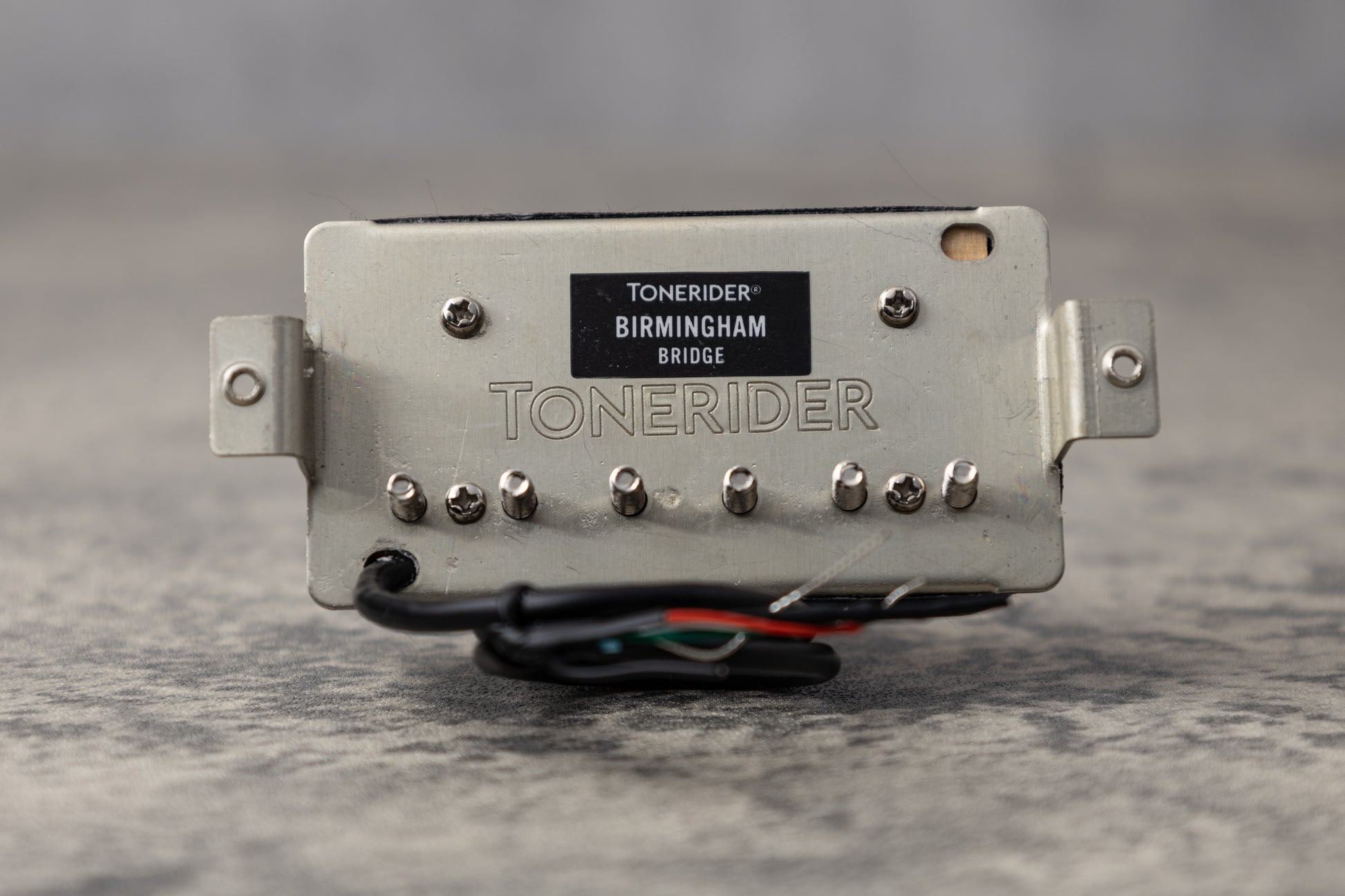

Baseplate | Nickel Silver | Nickel Silver |
Dimensions
Installation & Wiring Diagrams
- 1 Humbucker / 1 Vol
- 1 Humbucker / 1 Vol / 1 Tone
- 1 Humbucker / 1 Vol / 1 Tone / Push-Pull Coil Split (Volume)
- 2 Humbuckers / 1 Vol / 1 Tone / 3-Way Toggle
- 2 Humbuckers / 2 Vol / 2 Tone / 3-Way Toggle
- 2 Humbuckers / 1 Vol / 1 Tone / 3-Way Toggle / Push-Pull Coil Split (Vol)
- 2 Humbuckers / 1 Vol / 1 Tone / 3-Way Toggle / Push-Pull Coil Split (Tone)
- 2 Humbuckers / 2 Vol / 2 Tone / 3-Way Toggle / Push-Pull Coil Split
- 2 Humbuckers / 2 Vol / 2 Tone / 3-Way Toggle (50’s Wiring)
- 2 Humbuckers / 1 Vol / 1 Tone / 5-Way Lever
