Full Description

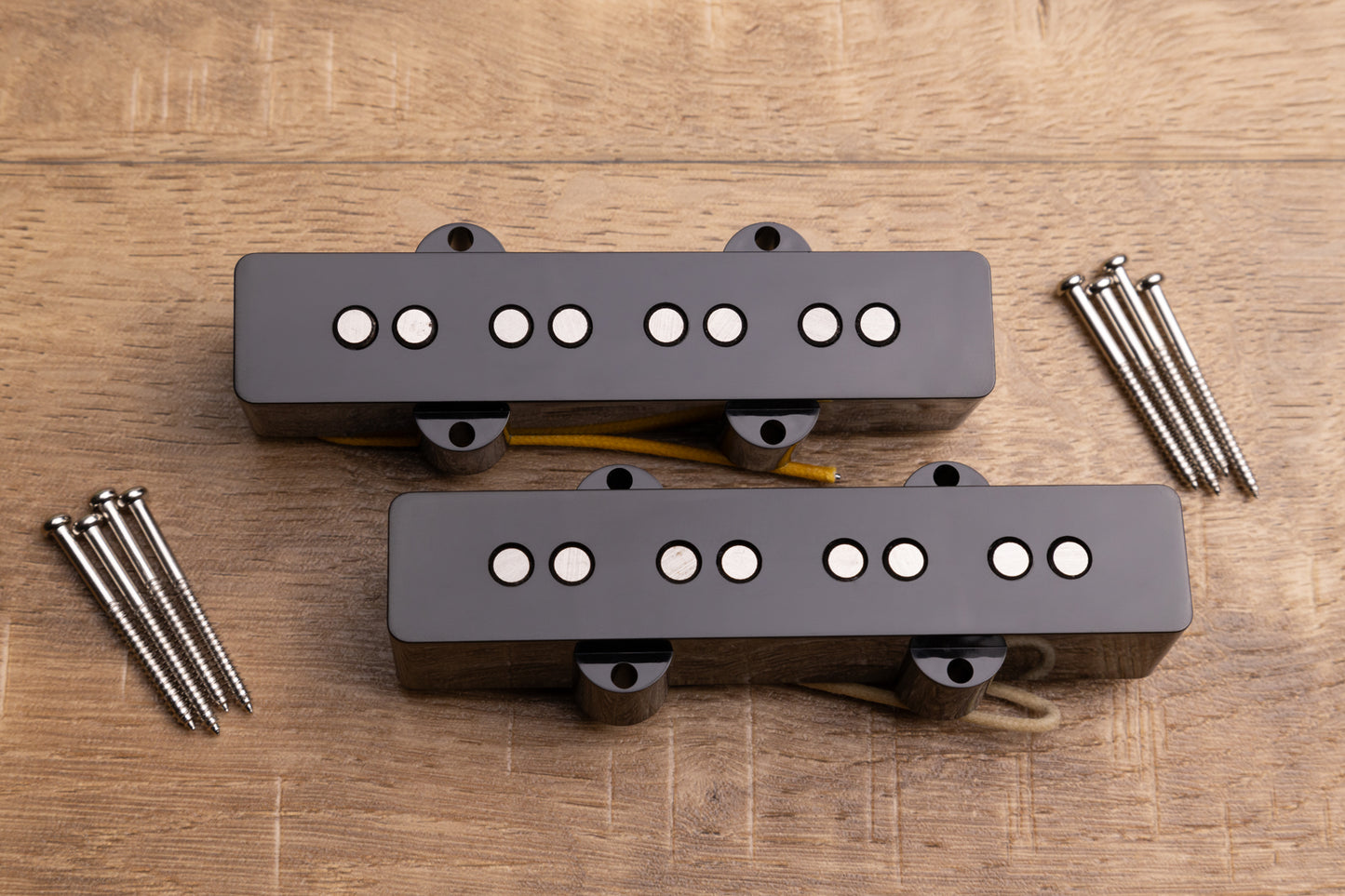

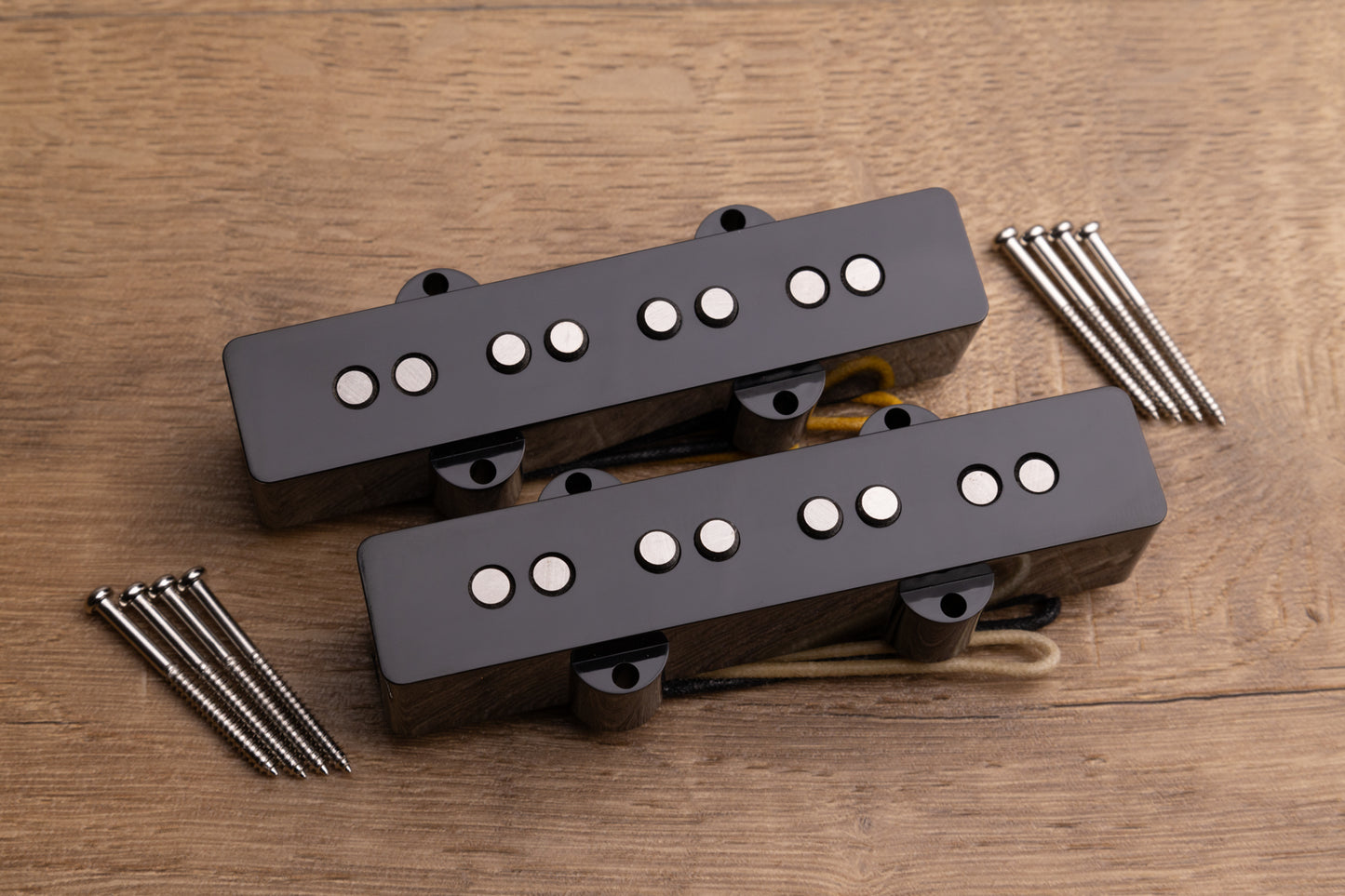

Designed for maximum tonal versatility, the Classic J is the perfect passive pickup for your Jazz Bass. Use the tone control to roll off the high-end and hit the bridge pickup for fat “Jaco” inspired tones, or open up all controls and find enough punch, harmonics and clarity for some serious slap-work. The aged magnets allow for plectrum work that retains detail and a crisp attack.

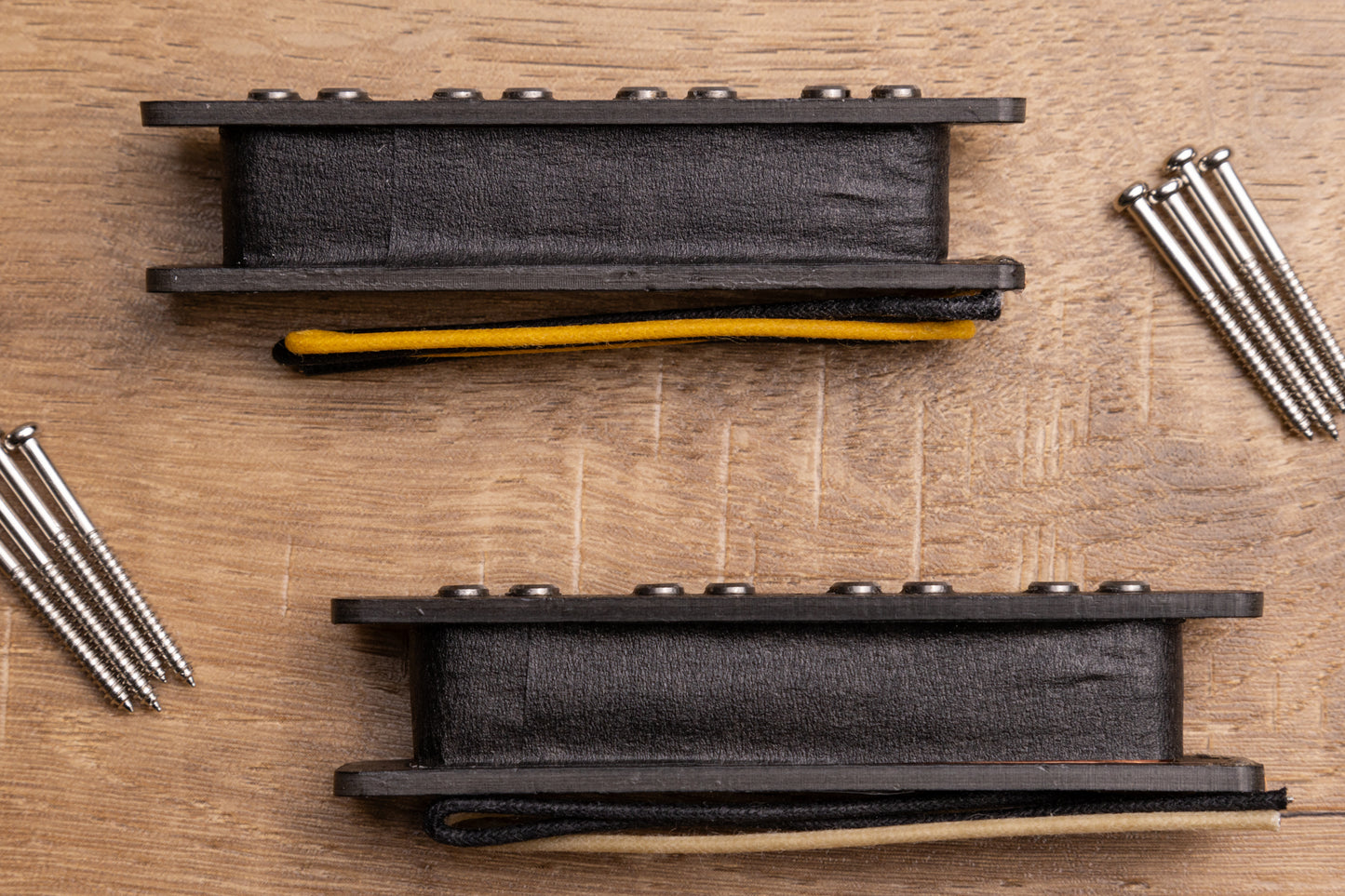

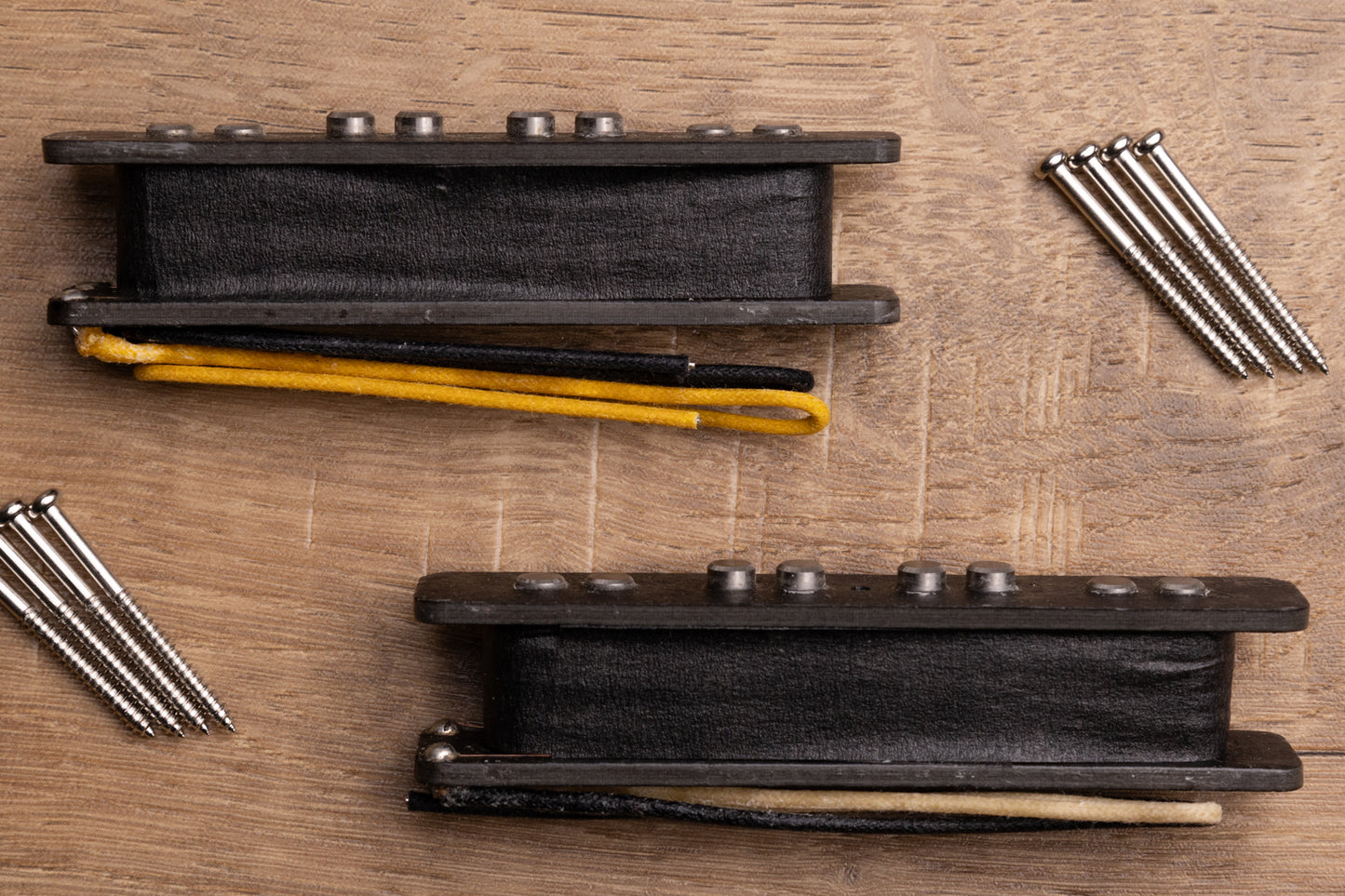

Wax potted to eliminate microphonic feedback. RWRP for noise cancelling operation when both pickups are in series or parallel.
Note: The Classic J set was sold under the name "Jazz Plus" for many years - Nothing has changed except the name!
New for 2024 - Due to popular demand, we've begun to make a variation of the Classic J with staggered poles - these work especially well with basses with more rounded fingerboards, such as the 7 1/4" boards found on vintage models and reissues.
Tech Specs
| Classic J Neck | Classic J Bridge | |
|---|---|---|
| Model | J1N-4 | J1B-4 |
| Magnet | Alnico 5 | Alnico 5 |
| DCR | 7.4k | 8.2k |
| Inductance | 3.2H | 3.8H |
| Hookup Wire | Vintage Braid | Vintage Braid |
| Winding Direction | Counter-Clockwise | Clockwise |
| Polarity | South Pole Up | North Pole Up |
Dimensions
Wiring Diagrams
