Full Description

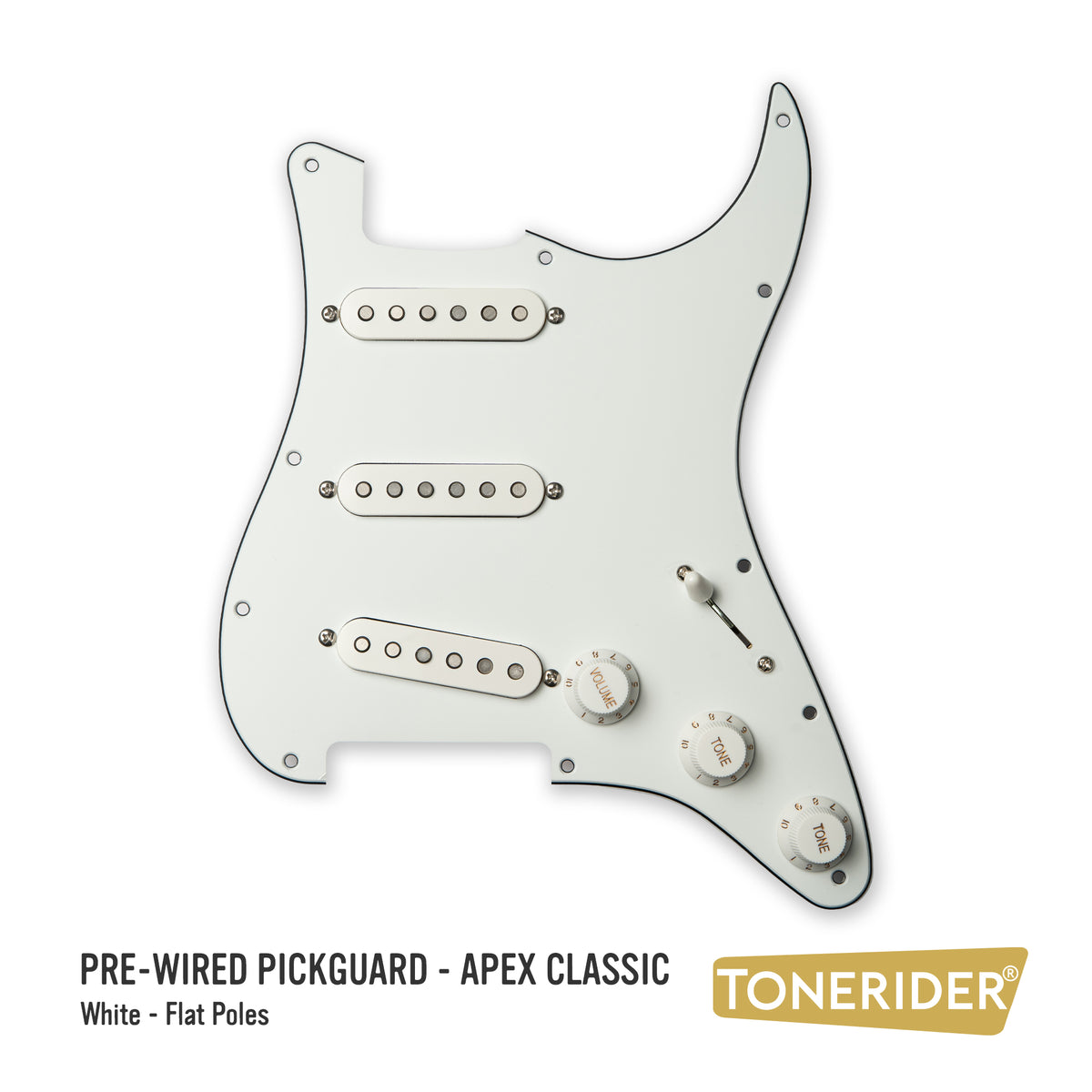

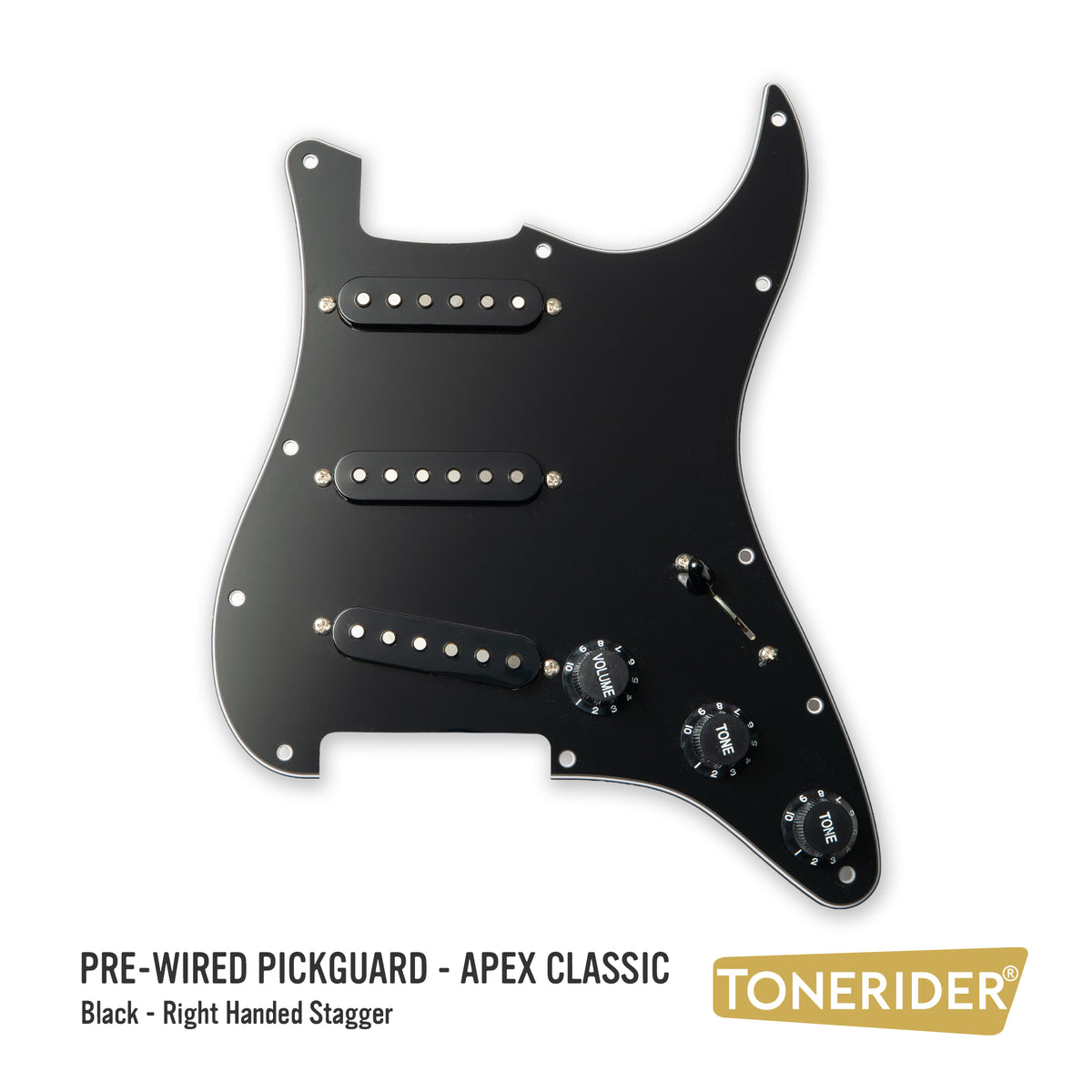

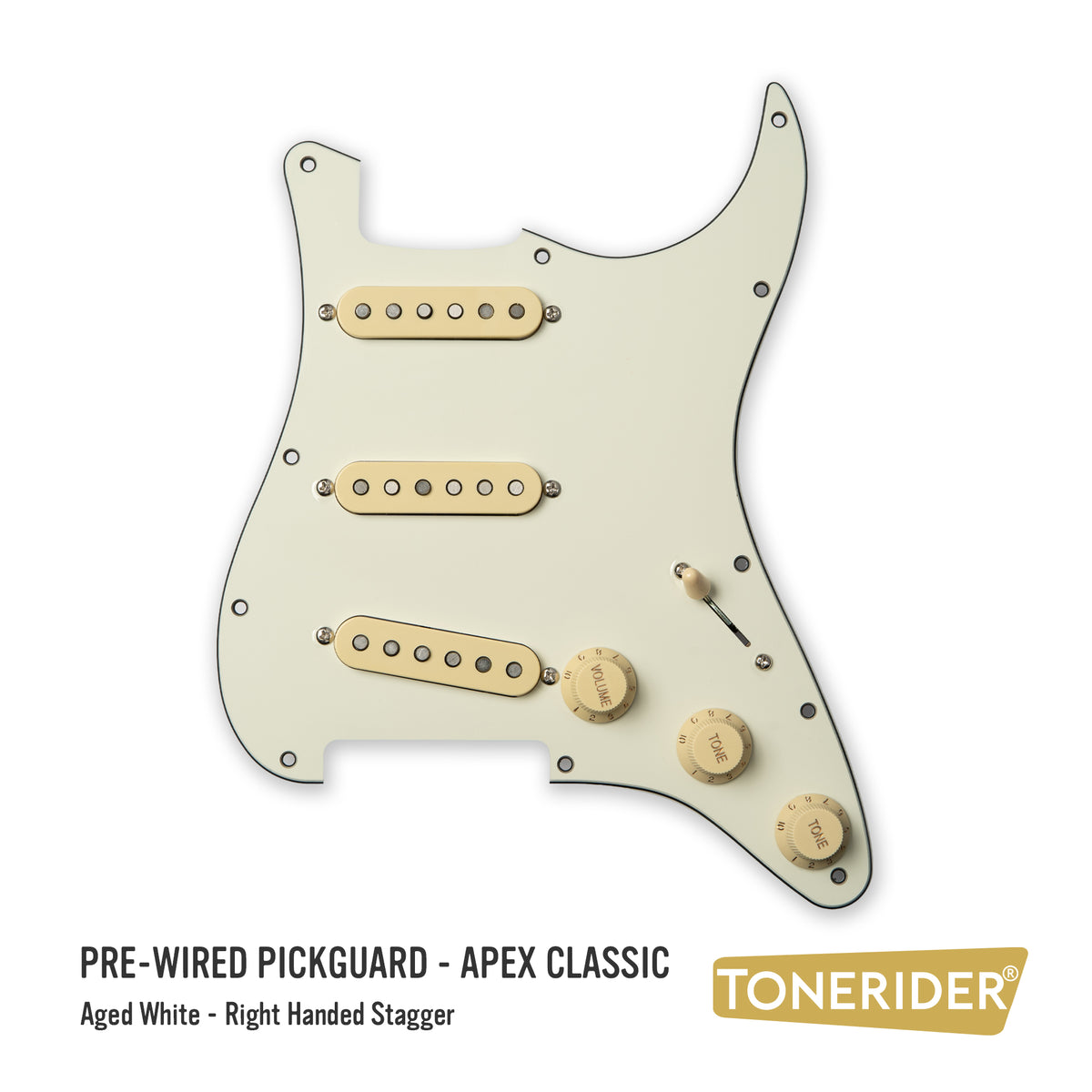

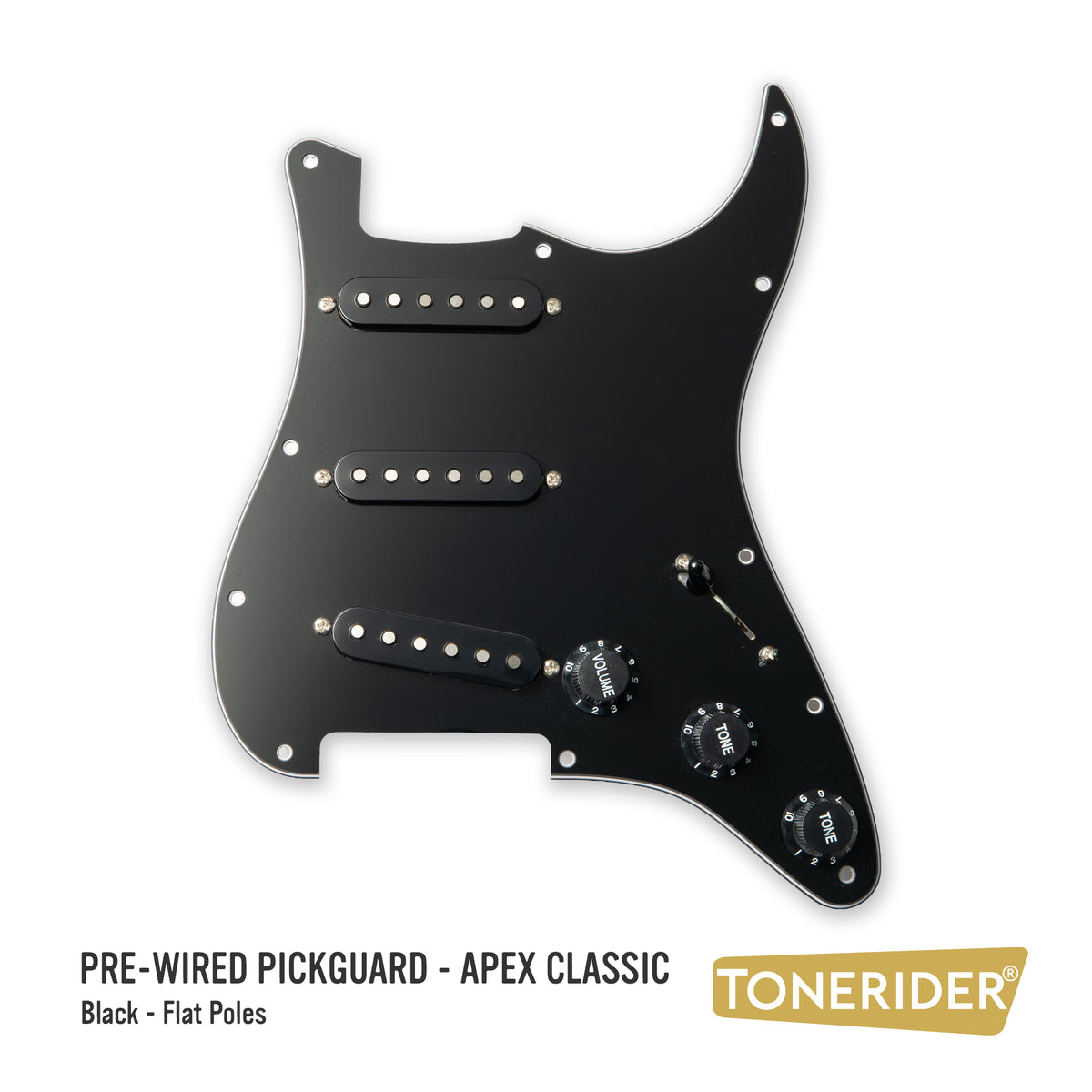

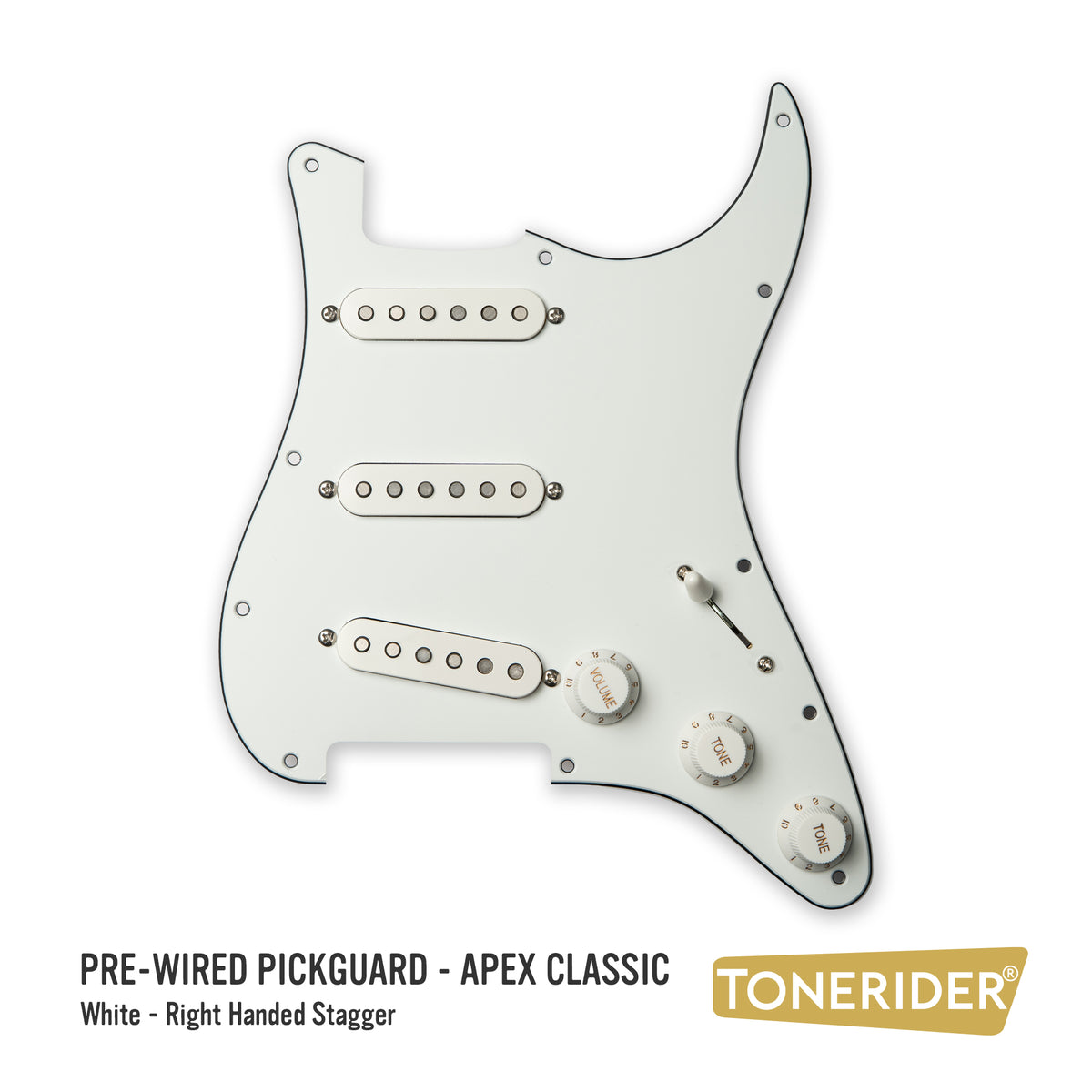

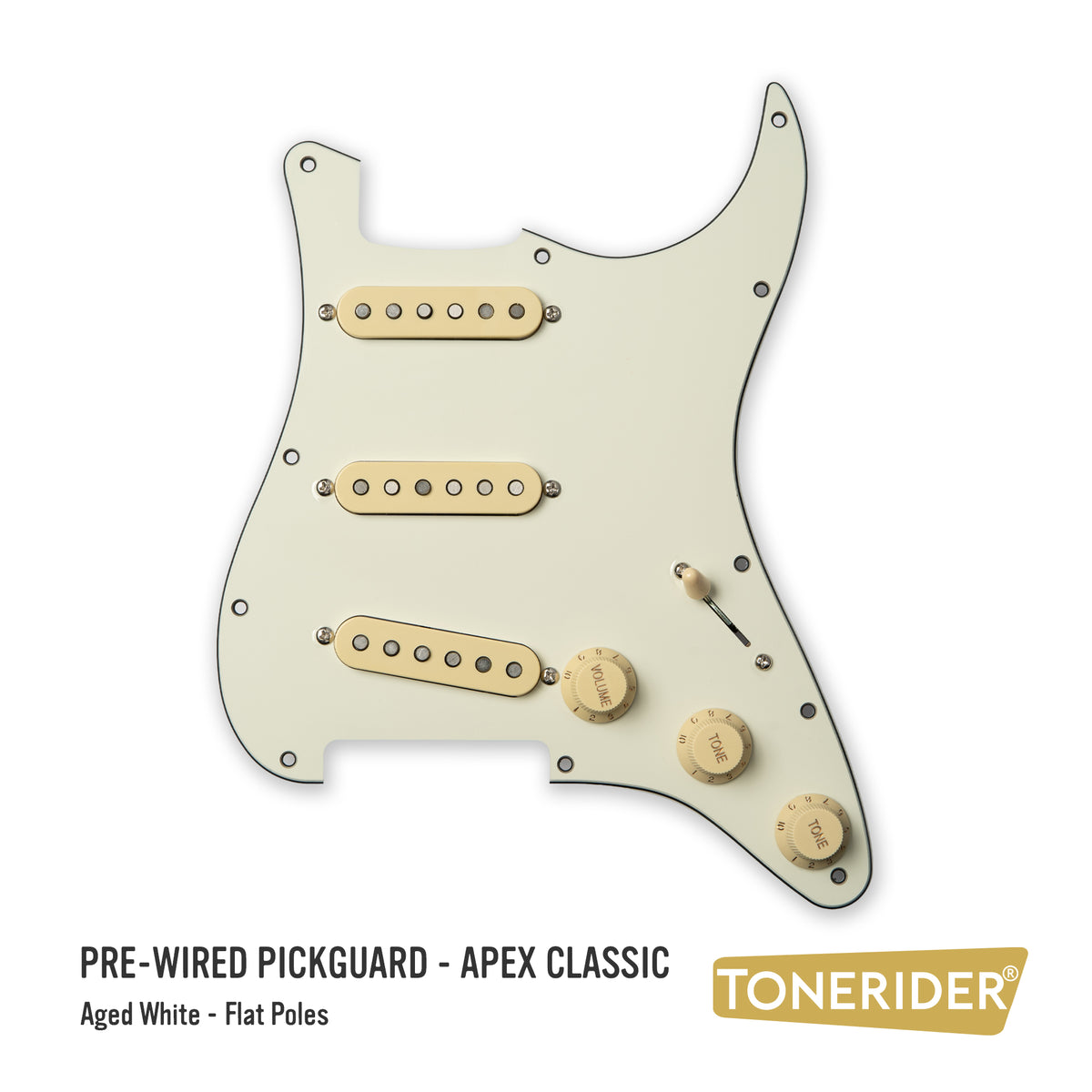

This Pre-Wired Strat® Pickguard from Tonerider combines the Apex Classic pickup set with a premium wiring harness and a modern pattern 11-hole pickguard. Whether you are building a guitar or modding an existing instrument, this assembly delivers great Strat® tone without the need for time consuming and complex wiring work - only the wires to ground and the output jack need to be soldered.
The Apex Classic set delivers the ultimate in vintage Strat® tone, paired with class-leading hum-cancellation. Rich in detail with bell-like chime, this set captures breathtaking vintage character while eliminating unwanted noise, allowing players to enjoy classic Strat® tone without the hum.

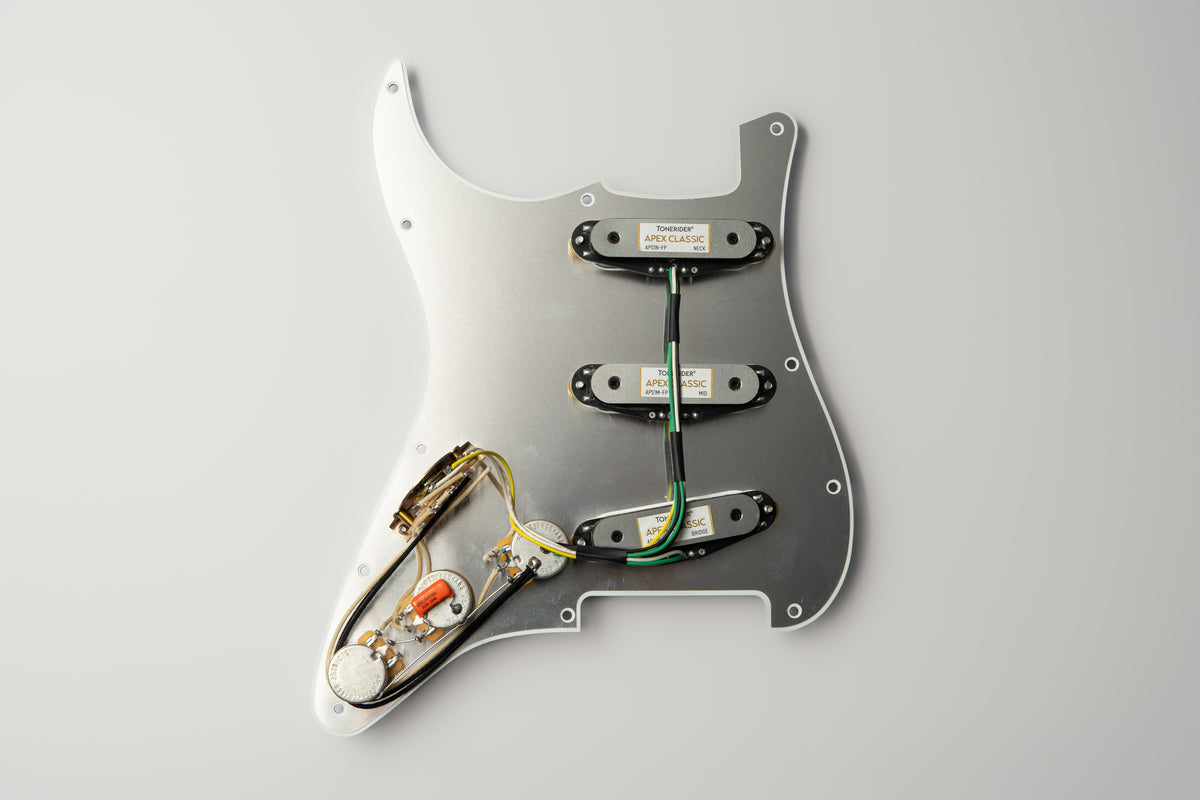

The wiring harness is hand-soldered using the highest quality components: CTS 250k audio pots, a USA-made Oak Grigsby 5-way switch, and an original Orange Drop capacitor. A full aluminium shield covers the entire pickguard.
In addition to the use of quality components, this pickguard uses a wiring scheme that improves on the limitations of 50s Strat® wiring. The volume control features a treble bleed circuit to preserve high-end clarity throughout its rotation. The first tone control is wired to the neck and mid pickups, and the second tone control is wired to the bridge pickup. Both tone controls share a 0.022µF capacitor, providing a smooth and usable range of treble control.
Component Guide
• Tonerider Apex Classic Pickup Set ( 6.3k neck / 6.3k middle / 7k bridge)
• 11-Hole 3-Ply Pickguard with full-size Aluminium shield
• 3 × CTS 250k Audio Taper Pots (20% “BD” taper)
• USA Made Oak-Grigsby 5-Way Switch
• 0.022µF CDE Orange Drop Capacitor
• Treble Bleed Circuit (150kOhm resistor & 680pF capacitor)
• Vintage Braid Hook-Up Wire
• Switchcraft 1/4" Mono Output Jack
• Installation Guide
Dimensions
