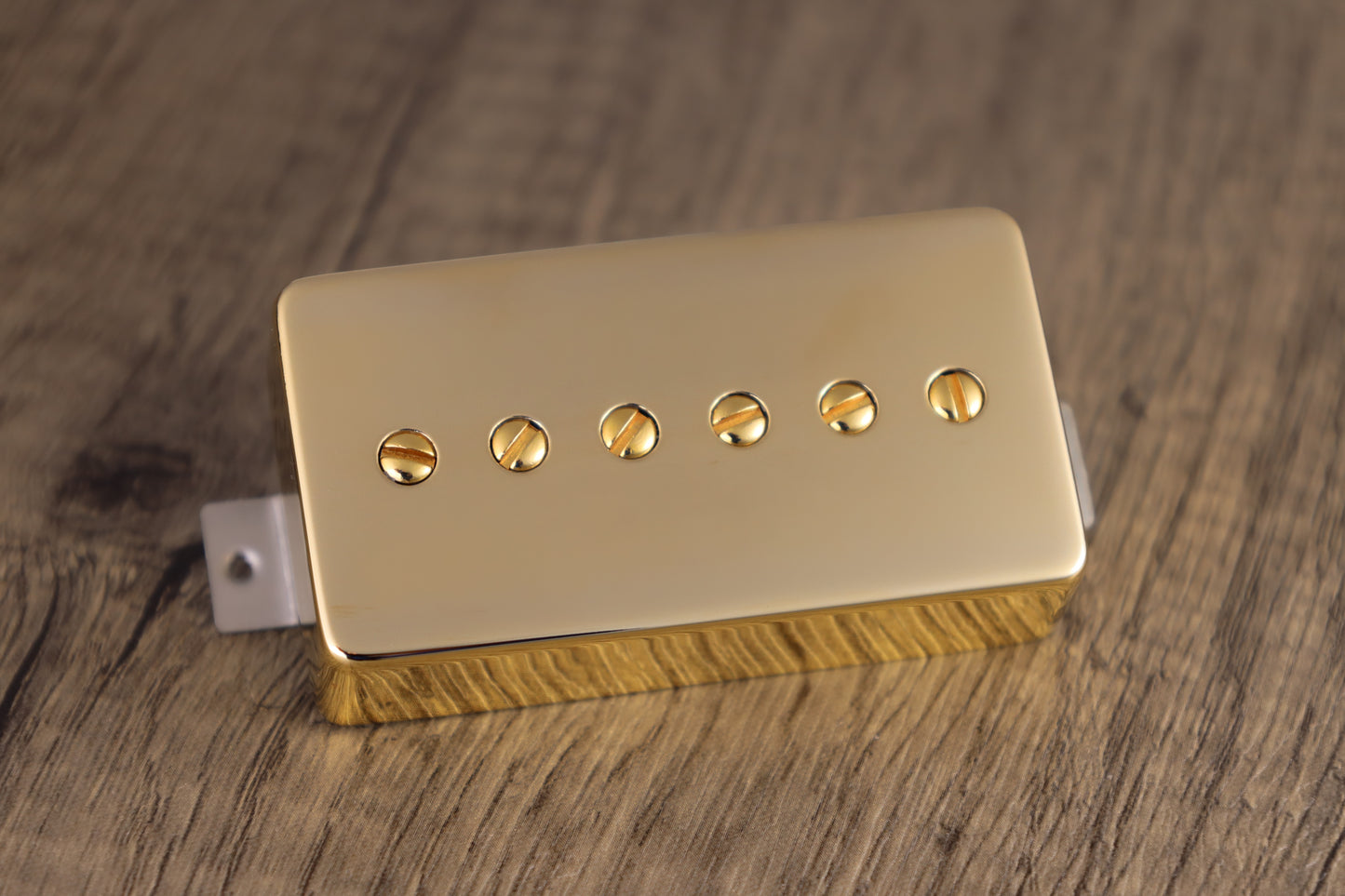

Full Description

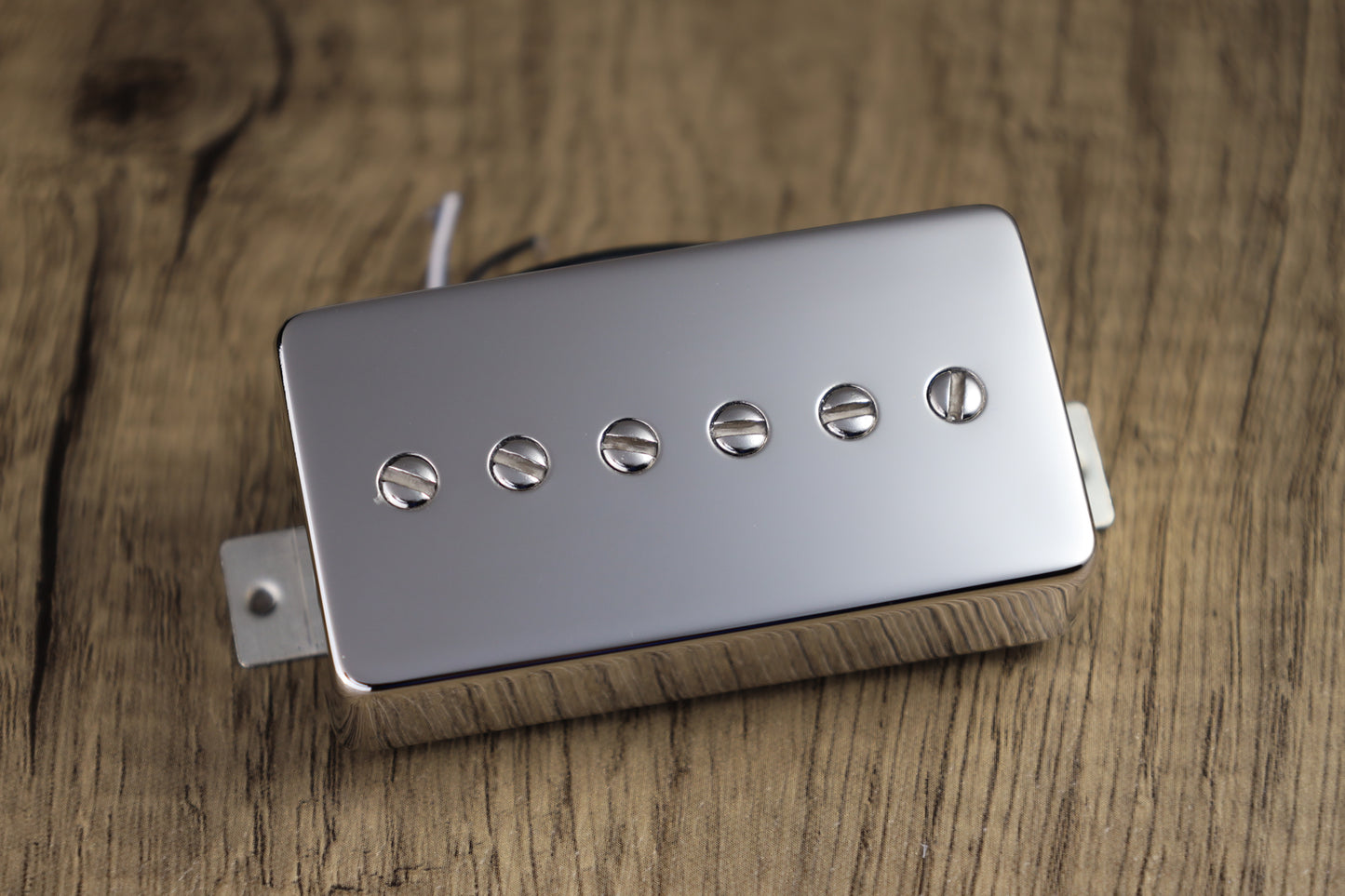

A huge number of guitars come equipped with standard humbuckers, but the fun doesn’t have to stop there. Using a humbucker-sized P90 can offer a wider, more open sound, and open up new musical avenues.
Powered by twin Alnico 2 bar magnets, and with a strong bass and crisp highs, the Rebel 90 finds the sweet spot between single coil and humbucker tonalities.

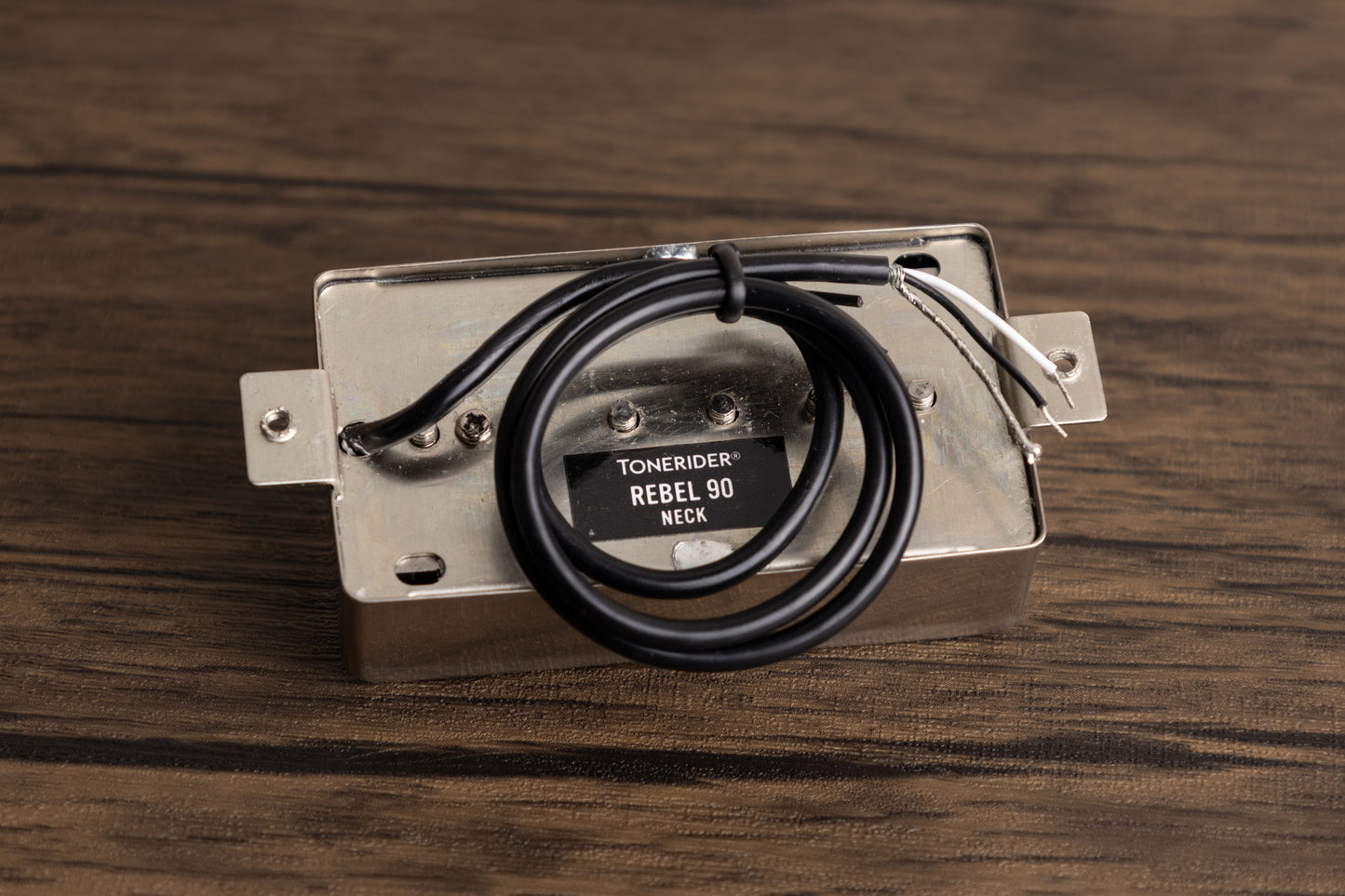

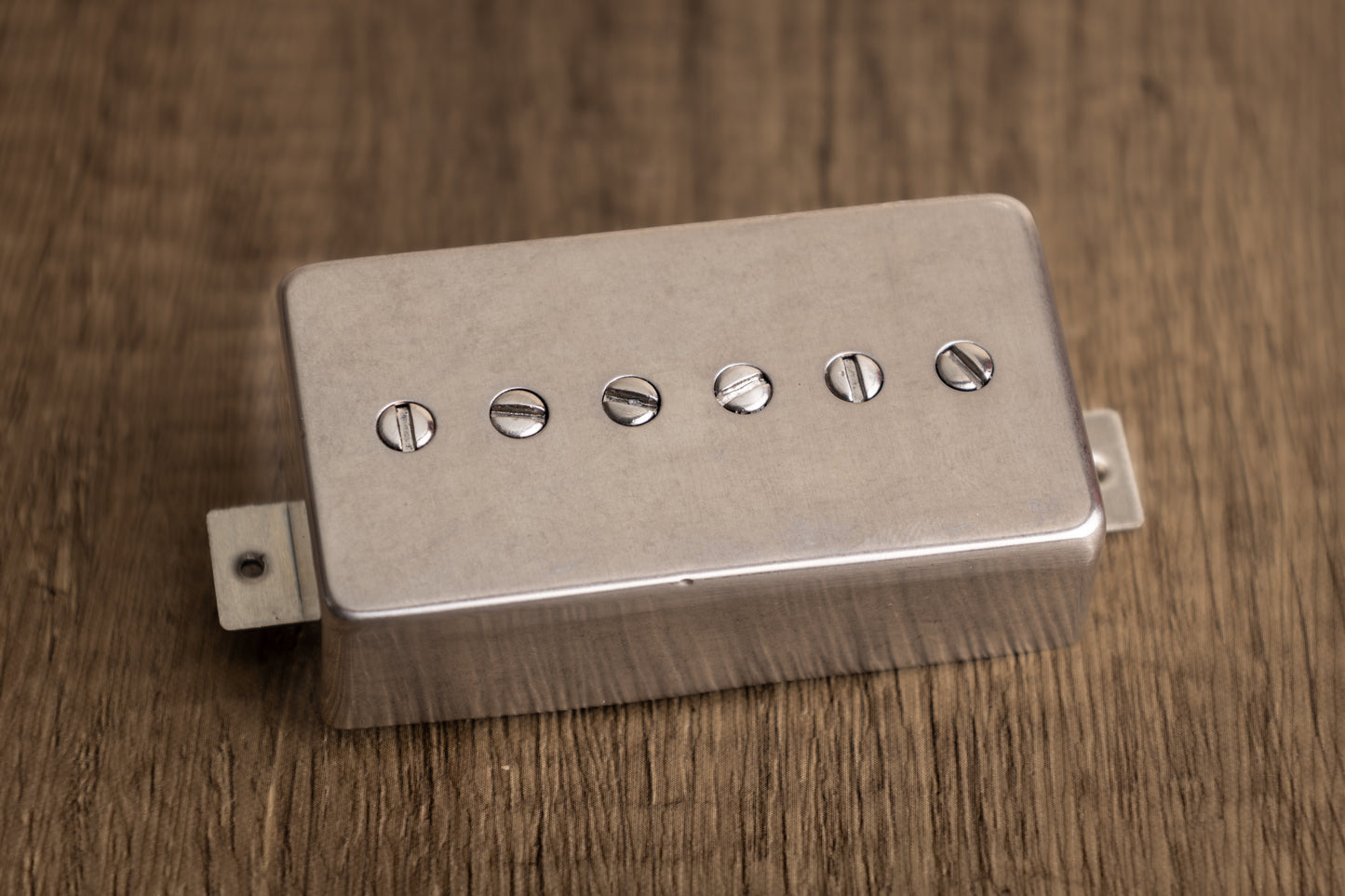

Aged Nickel Covers now available!
#3-48 screws and springs supplied and a full installation guide supplied.
Neck 7.6k / Bridge 7.9k, Alnico 2
Tech Specs
| Rebel 90 Neck | Rebel 90 Bridge | ||
|---|---|---|---|
| Model | R90V-N | R90V-B | |
| Magnet | Twin Alnico 2 Bar | Twin Alnico 2 Bar | |
| DCR | 7.6k | 7.9k | |
| Inductance | 3.4H | 4.2H | |
| Hookup Wire | 2-Conductor | 2-Conductor | |
| Winding Direction | Counter-Clockwise | Clockwise | |
| Polarity | South Pole Up | North Pole Up |
Dimensions
Wiring Diagrams
- 1 Rebel 90, 1 Humbucker / 1 Vol / 1 Tone / 3-Way Toggle / Push-Pull Coil Split
- 1 Rebel 90, 1 Humbucker / 1 Vol / 1 Tone / 3-Way Toggle
- 1 Rebel 90, 1 Humbucker, 2 Volume, 2 Tone
- 1 Rebel 90 / 1 Vol / 1 Tone
- 1 Rebel 90 / 1 Vol
- 2 Rebel 90s / 2 Vol / 2 Tone / 3-Way Toggle
- 2 Rebel 90s / 1 Vol / 1 Tone / 3-Way Toggle
Full Description
A huge number of guitars come equipped with standard humbuckers, but the fun doesn’t have to stop there. Using a humbucker-sized P90 can offer a wider, more open sound, and open up new musical avenues.
Powered by twin Alnico 2 bar magnets, and with a strong bass and crisp highs, the Rebel 90 finds the sweet spot between single coil and humbucker tonalities.
Aged Nickel Covers now available!
#3-48 screws and springs supplied and a full installation guide supplied.
Neck 7.6k / Bridge 7.9k, Alnico 2
Tech Specs
| Rebel 90 Neck | Rebel 90 Bridge | ||
|---|---|---|---|
| Model | R90V-N | R90V-B | |
| Magnet | Twin Alnico 2 Bar | Twin Alnico 2 Bar | |
| DCR | 7.6k | 7.9k | |
| Inductance | 3.4H | 4.2H | |
| Hookup Wire | 2-Conductor | 2-Conductor | |
| Winding Direction | Counter-Clockwise | Clockwise | |
| Polarity | South Pole Up | North Pole Up |
Dimensions
Installation & Wiring Diagrams
- 1 Rebel 90, 1 Humbucker / 1 Vol / 1 Tone / 3-Way Toggle / Push-Pull Coil Split
- 1 Rebel 90, 1 Humbucker / 1 Vol / 1 Tone / 3-Way Toggle
- 1 Rebel 90, 1 Humbucker, 2 Volume, 2 Tone
- 1 Rebel 90 / 1 Vol / 1 Tone
- 1 Rebel 90 / 1 Vol
- 2 Rebel 90s / 2 Vol / 2 Tone / 3-Way Toggle
- 2 Rebel 90s / 1 Vol / 1 Tone / 3-Way Toggle
Media
The Rebel P90 on neck position brought my Epi LP Standard to the next level. And it's beautiful! Played in single mode I'm getting a rich, warm and also crisp sound, and also in mixed mode it boosts the sound enormously. Great value for affordable price. Wondering whether I should use it in bridge position, too (or go for a firebird mini HB, bur unfortunately Tonerider haven't got one in their portfolio yet).

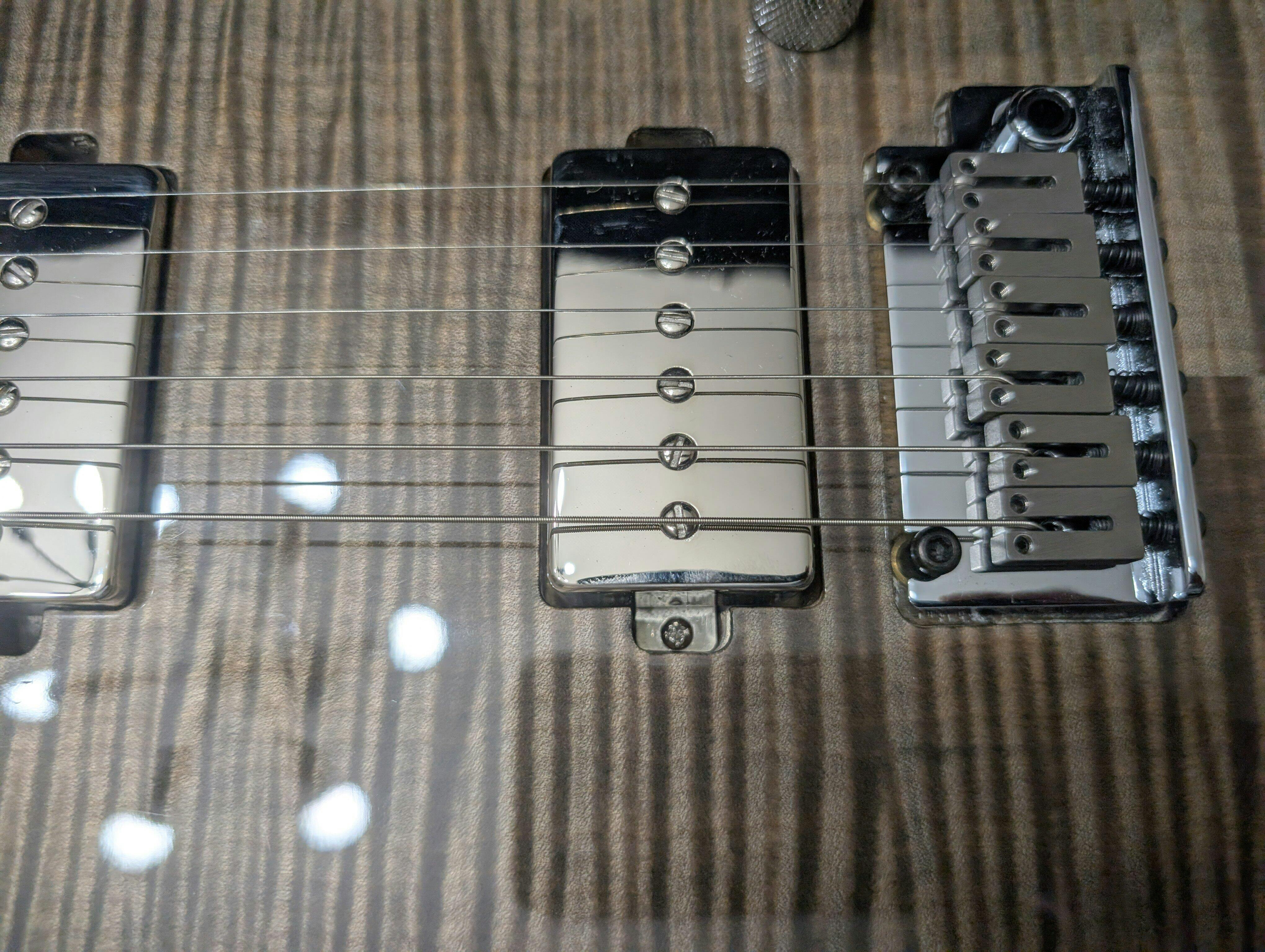

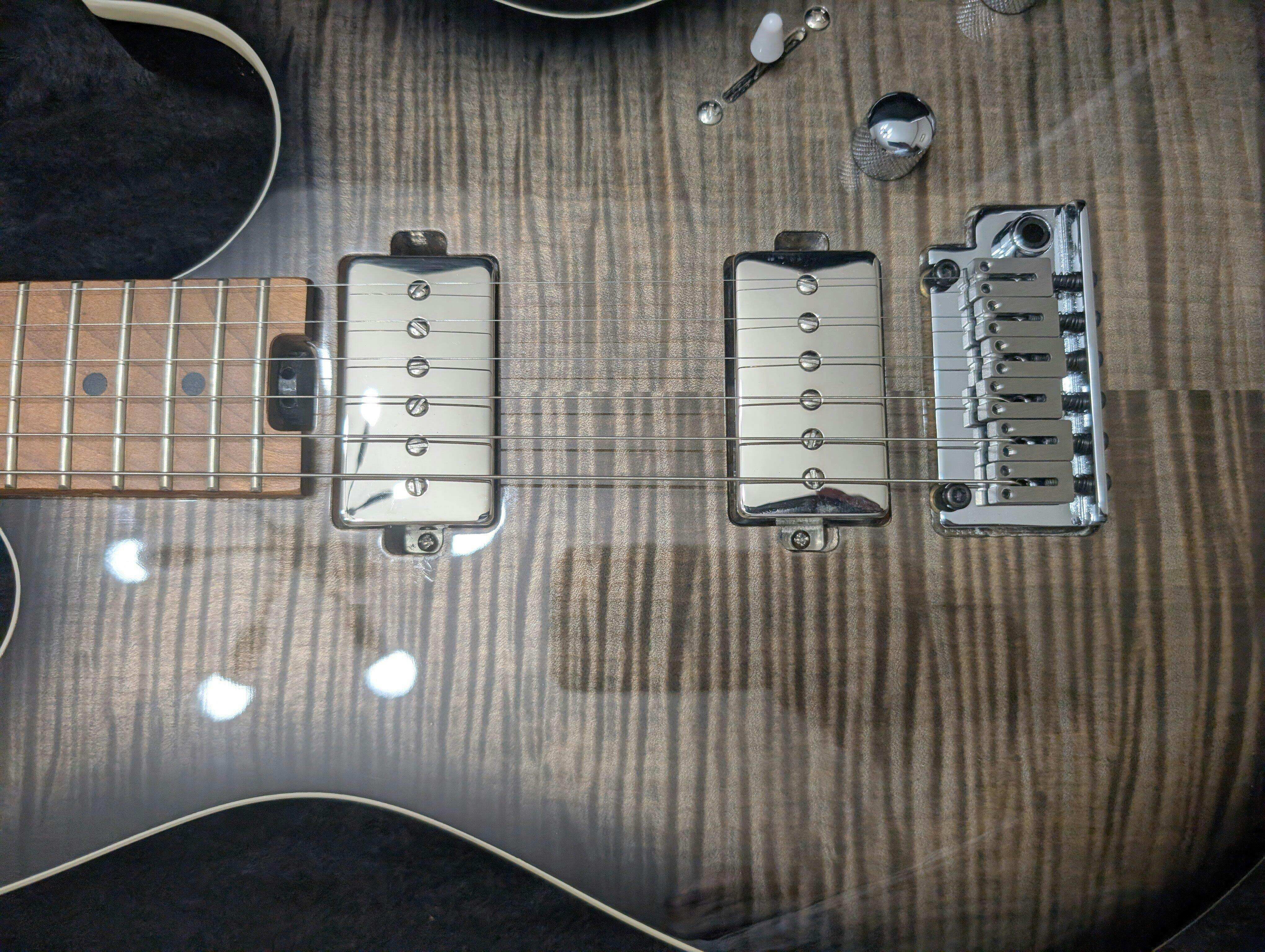

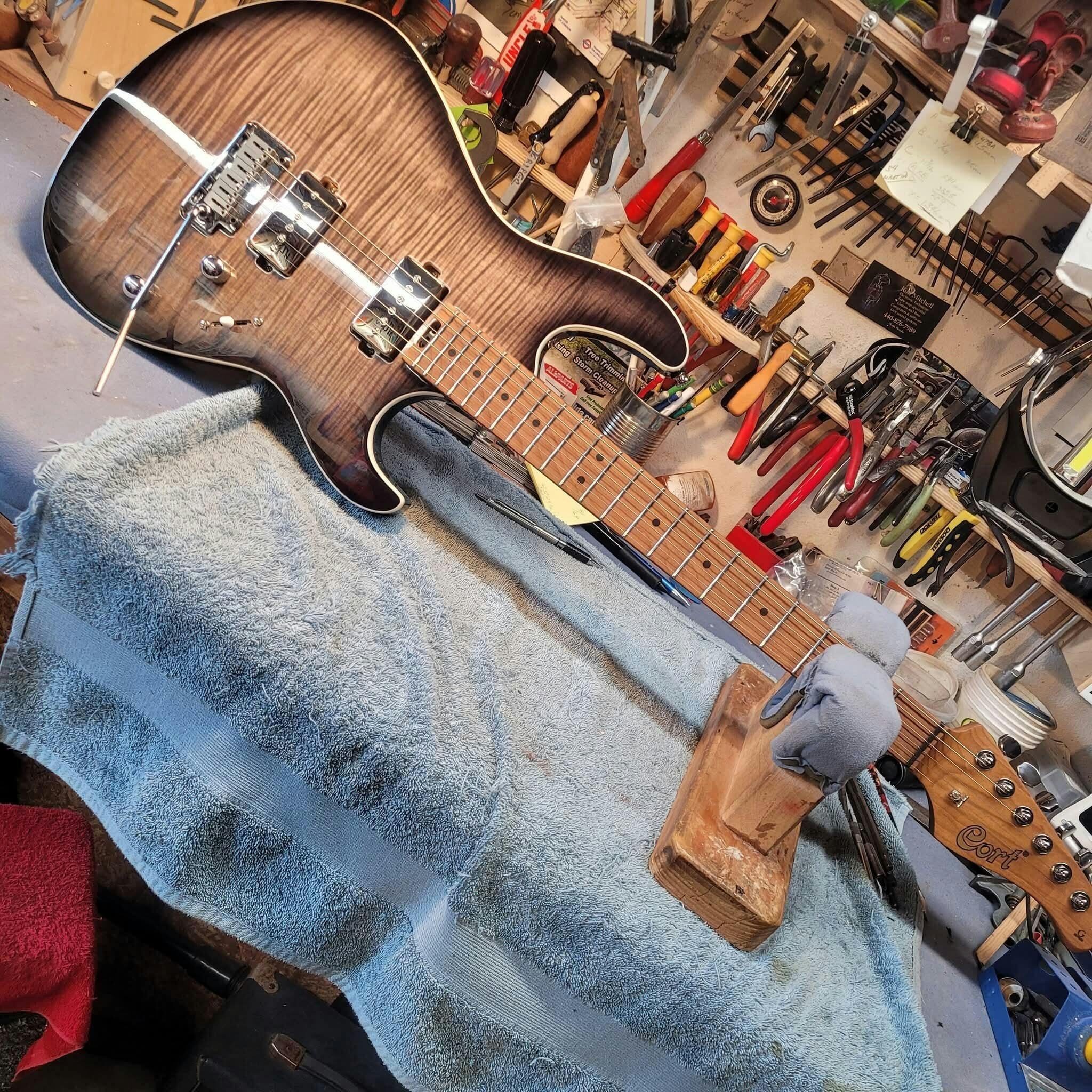

I installed these in a Cort G290 Fat II and it made a huge difference in the guitar tone! Played thru my Supro a dual tone I can fail up a variety of tones. I took an average guitar and turned it into a tone monster!
Watch out if you want to install them in a Tokai Love Rock. The routing does not fit, and you need to enlarge the space for the pickups
I've always heard that humbucker-sized P90s "don't sound like" real P90s.
As someone who has had both from Tonerider, I can say that Rebel 90s absolutely do capture the sound.
I took apart a Rebel 90, as I like to modify my P90s with a magnet swap. The construction is similar - two alnico bar magnets, magnetizing the adjustable pole pieces. The bobbin is nice and deep, like a real P90.
Installed, these pickups have that P90 thing - fast attack, great clarity, fat singing mids. I'm very impressed with the quality and the tone of Rebel 90s!
Fitted into the neck position of my tele / jazzmaster hybrid. The Rebal sounds absolutely fantastic clean and has a nice earthy quality when pushed hard with a fuzz pedal. Now considering replacing the humbuckers in my Les Paul with a pair of Rebels.
