Full Description
A huge number of guitars come equipped with standard humbuckers, but the fun doesn’t have to stop there. Using a humbucker-sized P90 can offer a wider, more open sound, and open up new musical avenues.
Powered by twin Alnico 2 bar magnets, and with a strong bass and crisp highs, the Rebel 90 finds the sweet spot between single coil and humbucker tonalities.

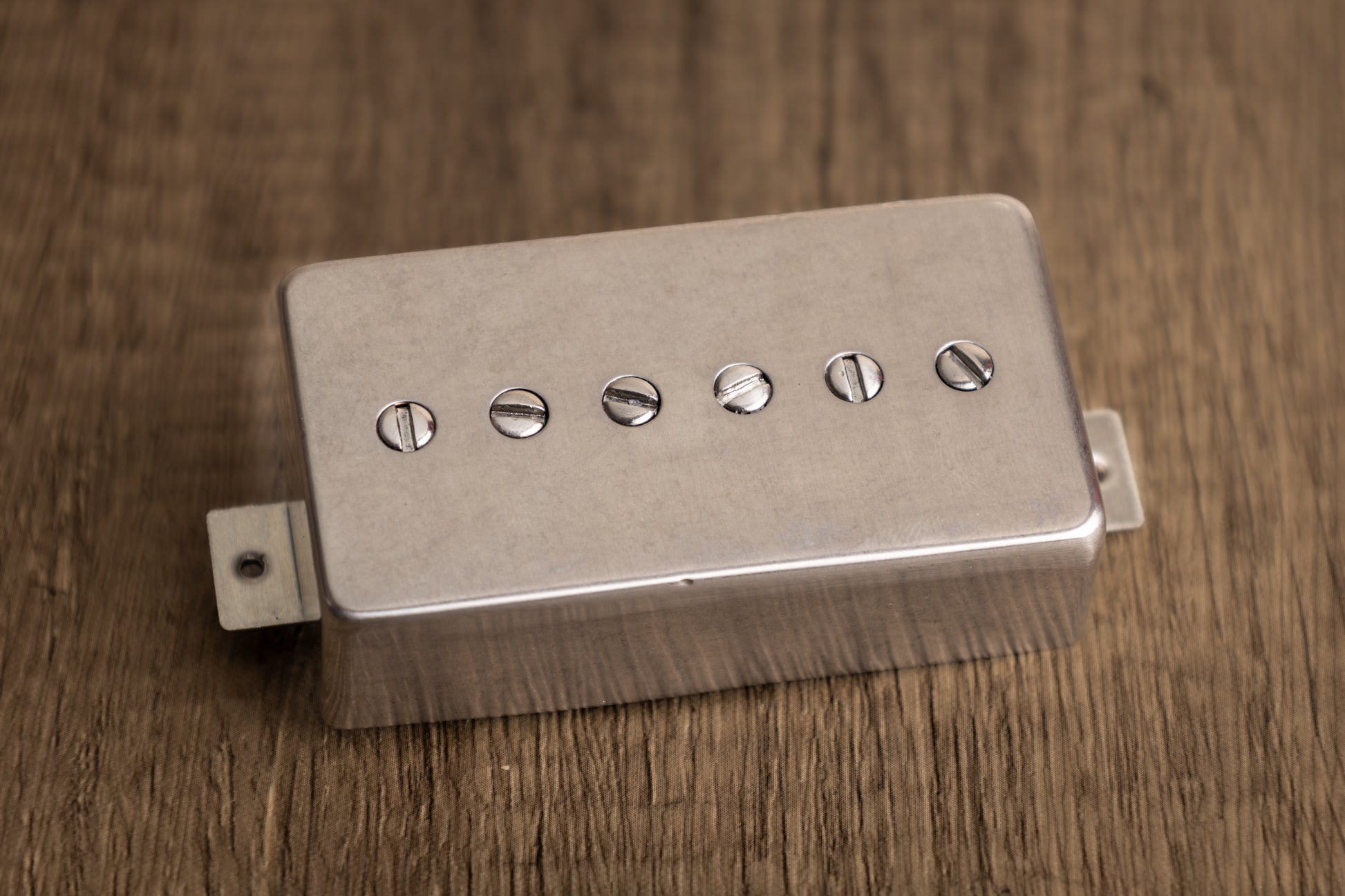

Aged Nickel Covers now available!
#3-48 screws and springs supplied and a full installation guide supplied.
Neck 7.6k / Bridge 7.9k, Alnico 2
Tech Specs
| Rebel 90 Neck | Rebel 90 Bridge | ||
|---|---|---|---|
| Model | R90V-N | R90V-B | |
| Magnet | Twin Alnico 2 Bar | Twin Alnico 2 Bar | |
| DCR | 7.6k | 7.9k | |
| Inductance | 3.4H | 4.2H | |
| Hookup Wire | 2-Conductor | 2-Conductor | |
| Winding Direction | Counter-Clockwise | Clockwise | |
| Polarity | South Pole Up | North Pole Up |
Dimensions
Wiring Diagrams
- 1 Rebel 90, 1 Humbucker / 1 Vol / 1 Tone / 3-Way Toggle / Push-Pull Coil Split
- 1 Rebel 90, 1 Humbucker / 1 Vol / 1 Tone / 3-Way Toggle
- 1 Rebel 90, 1 Humbucker, 2 Volume, 2 Tone
- 1 Rebel 90 / 1 Vol / 1 Tone
- 1 Rebel 90 / 1 Vol
- 2 Rebel 90s / 2 Vol / 2 Tone / 3-Way Toggle
- 2 Rebel 90s / 1 Vol / 1 Tone / 3-Way Toggle
