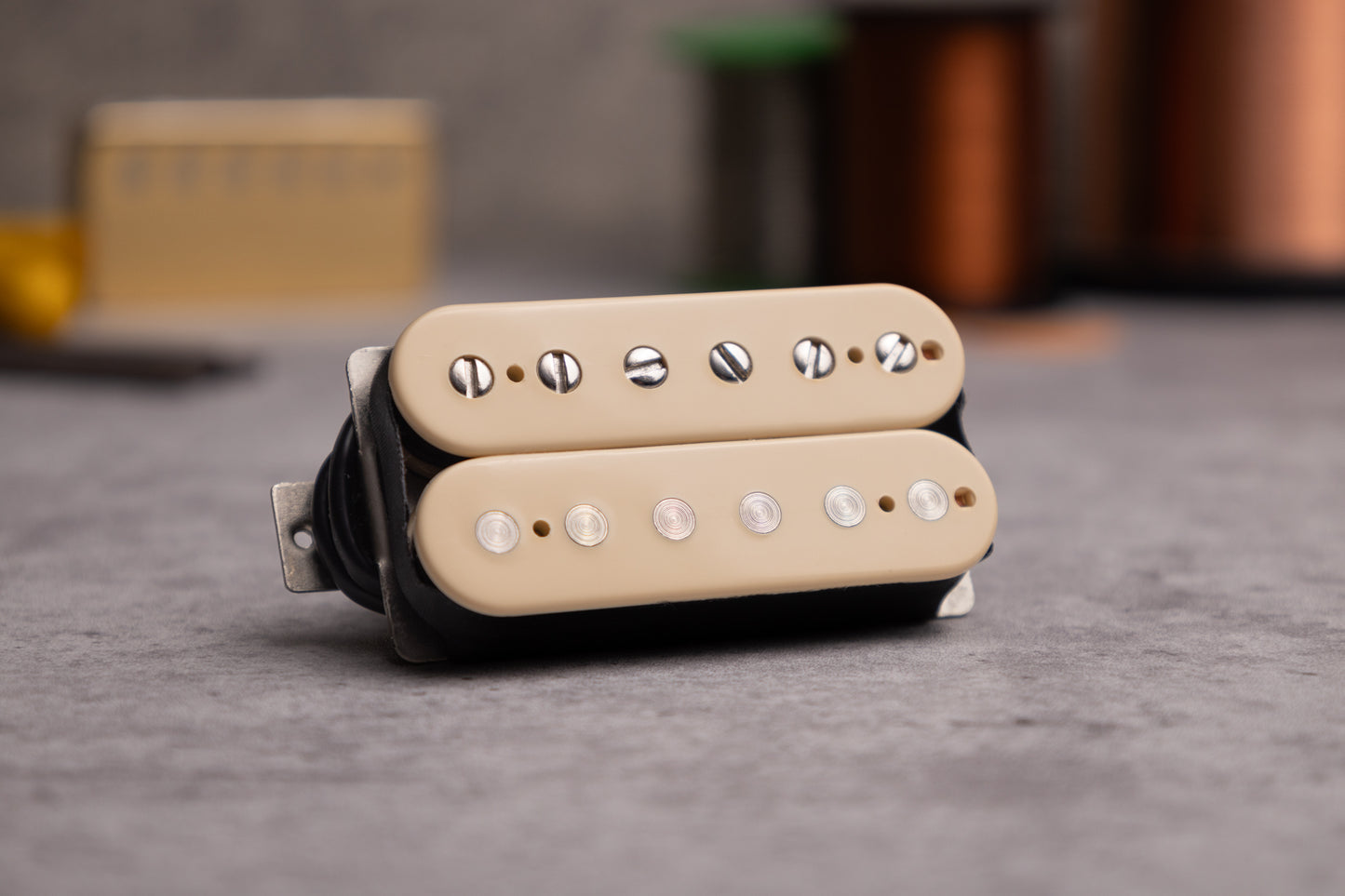

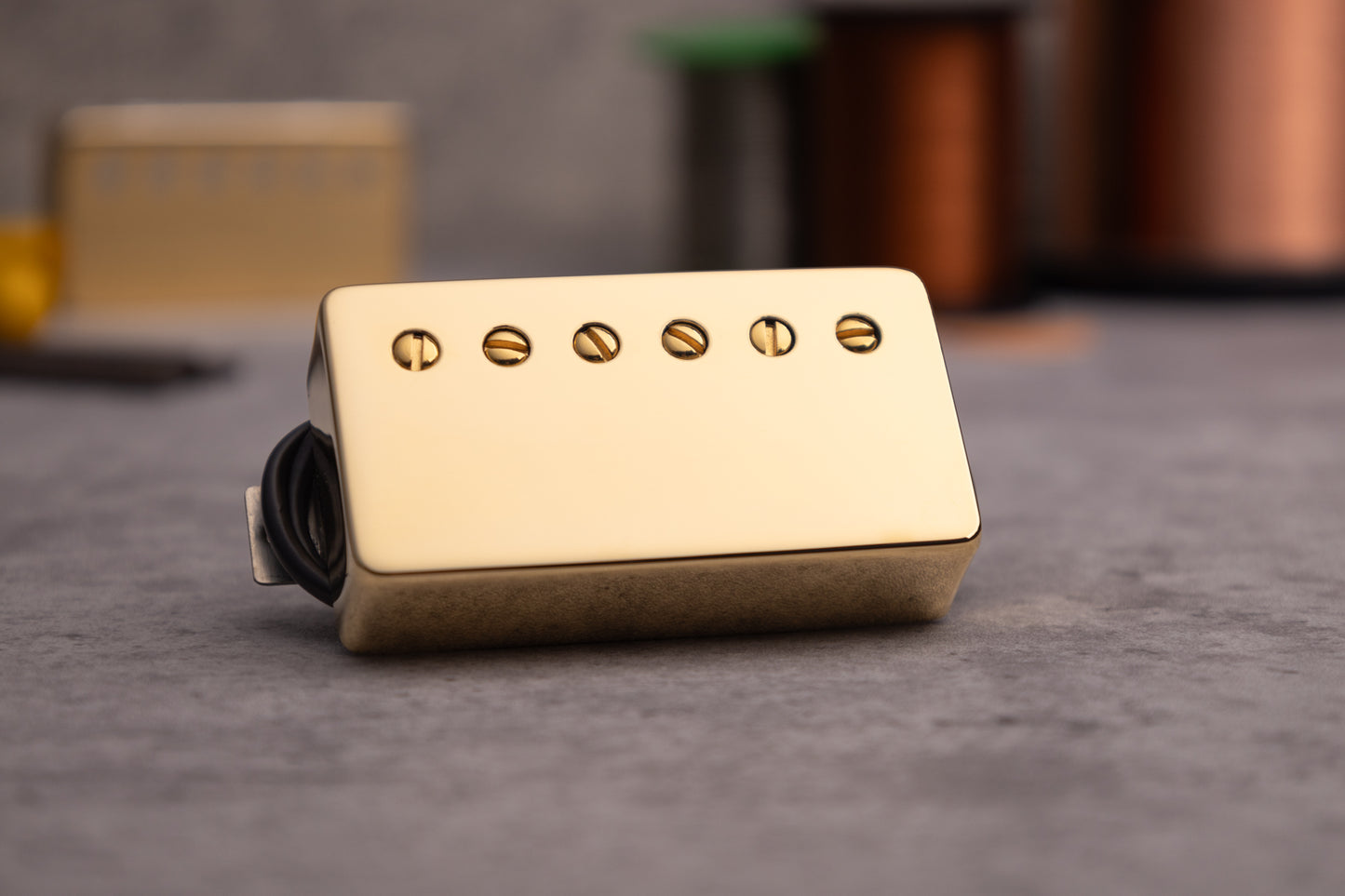

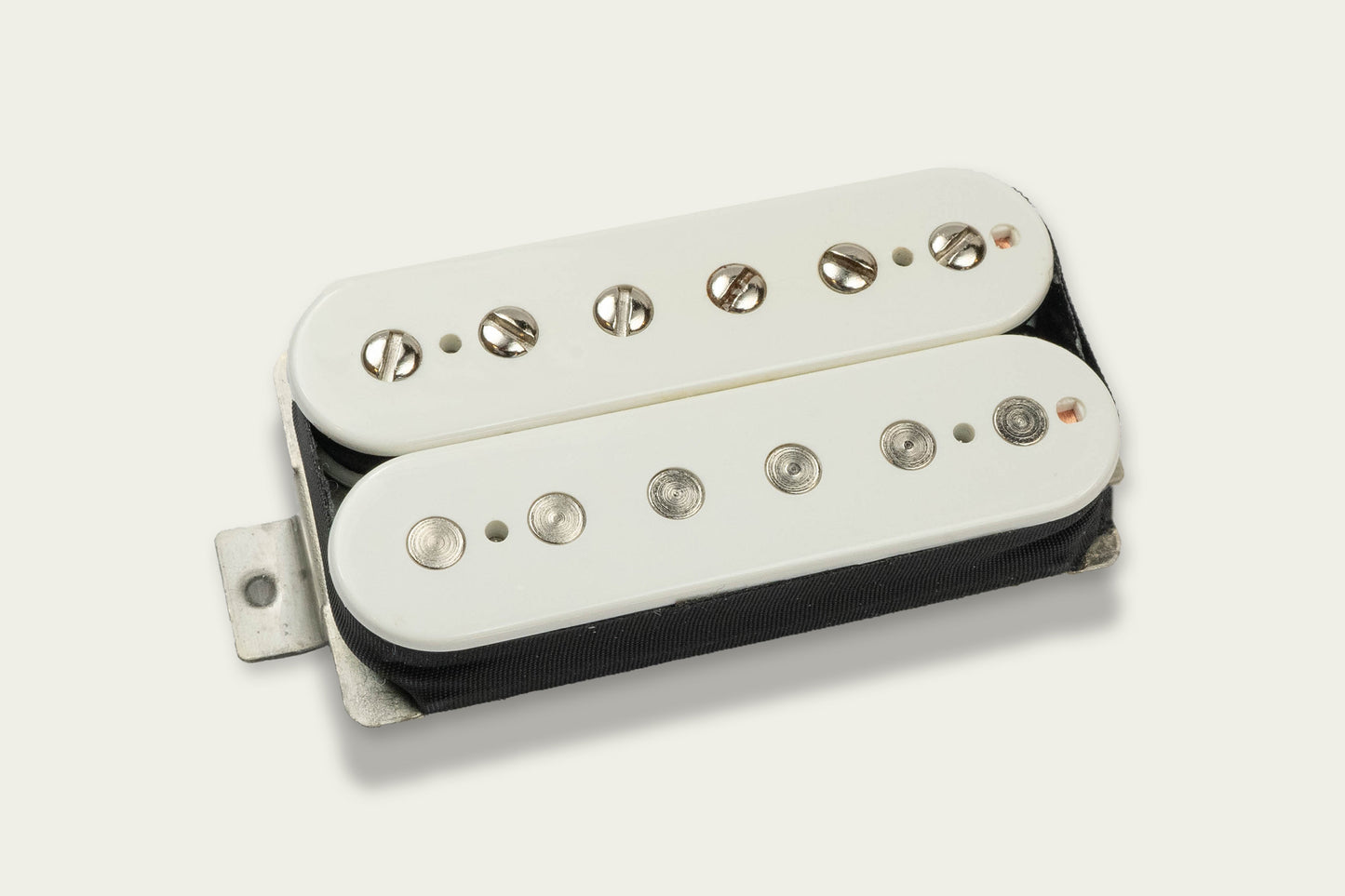

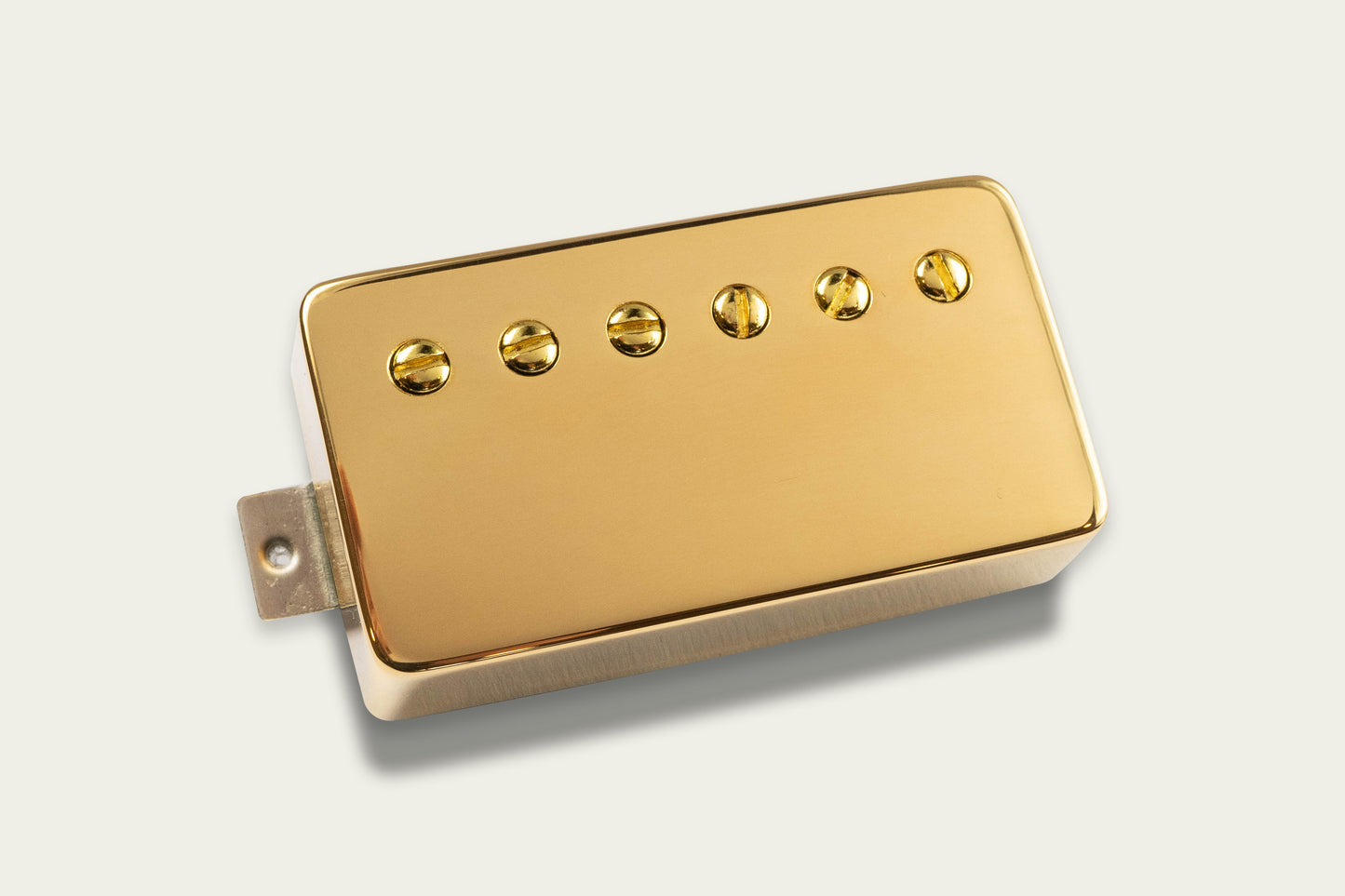

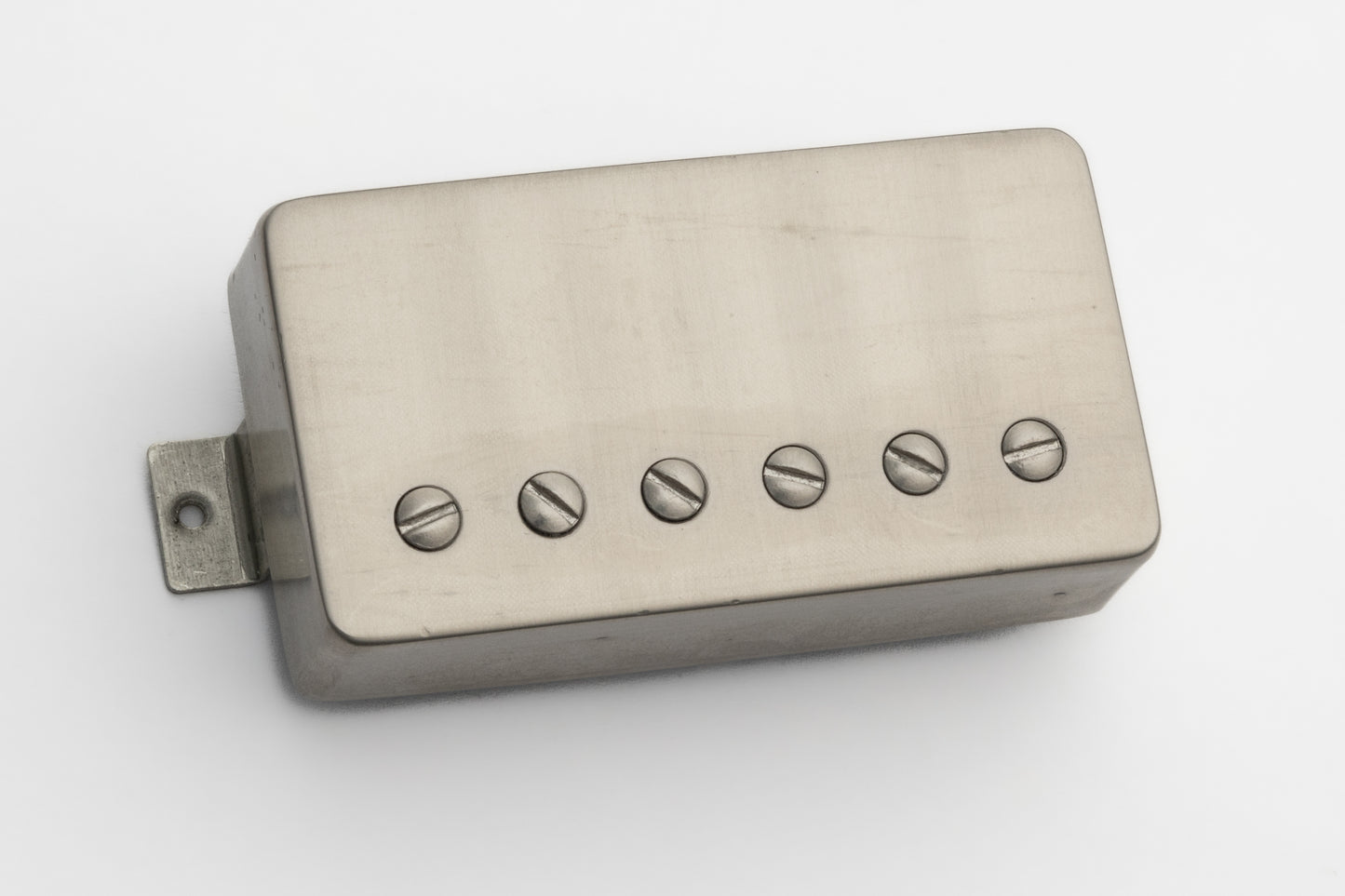

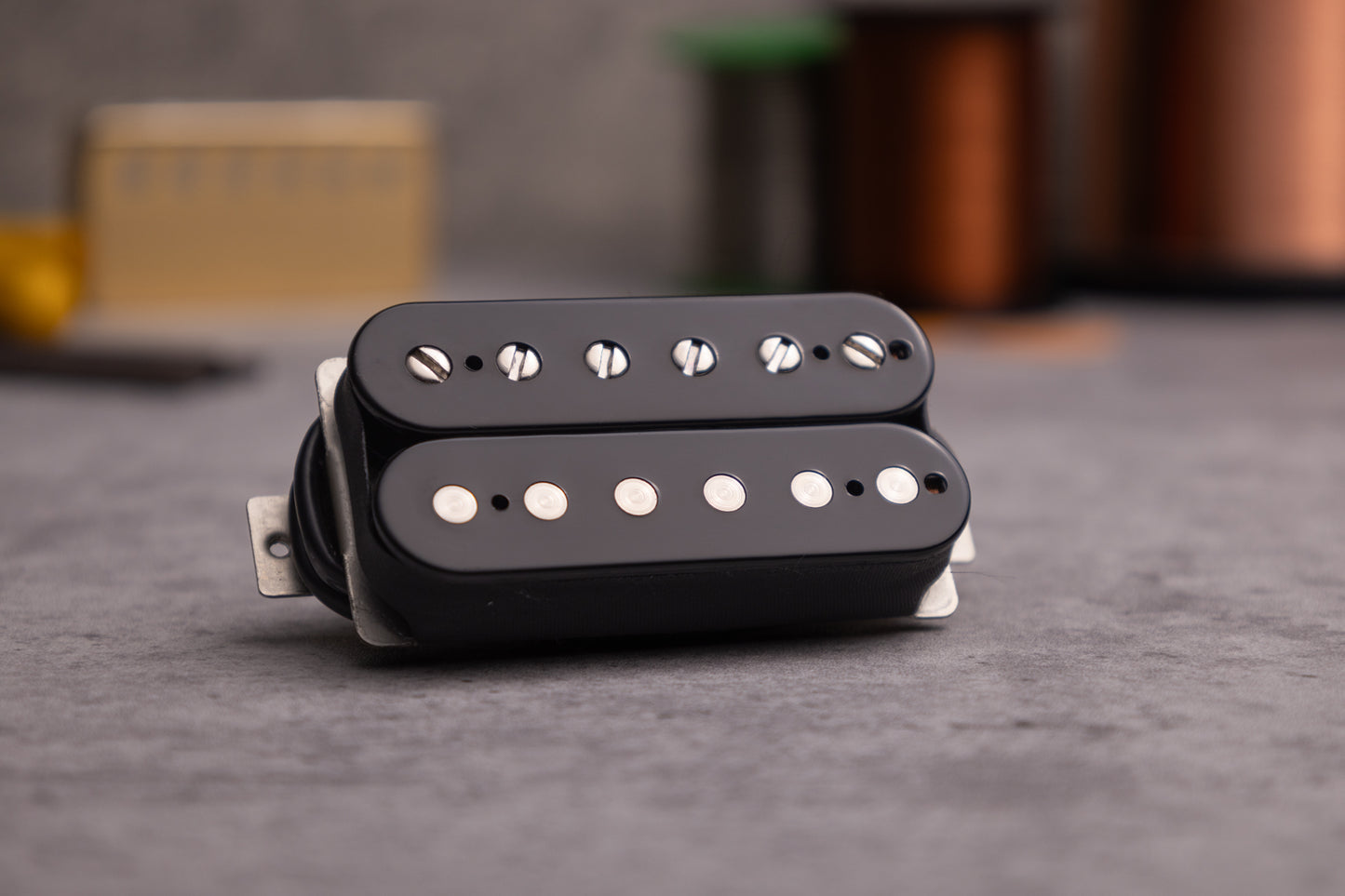

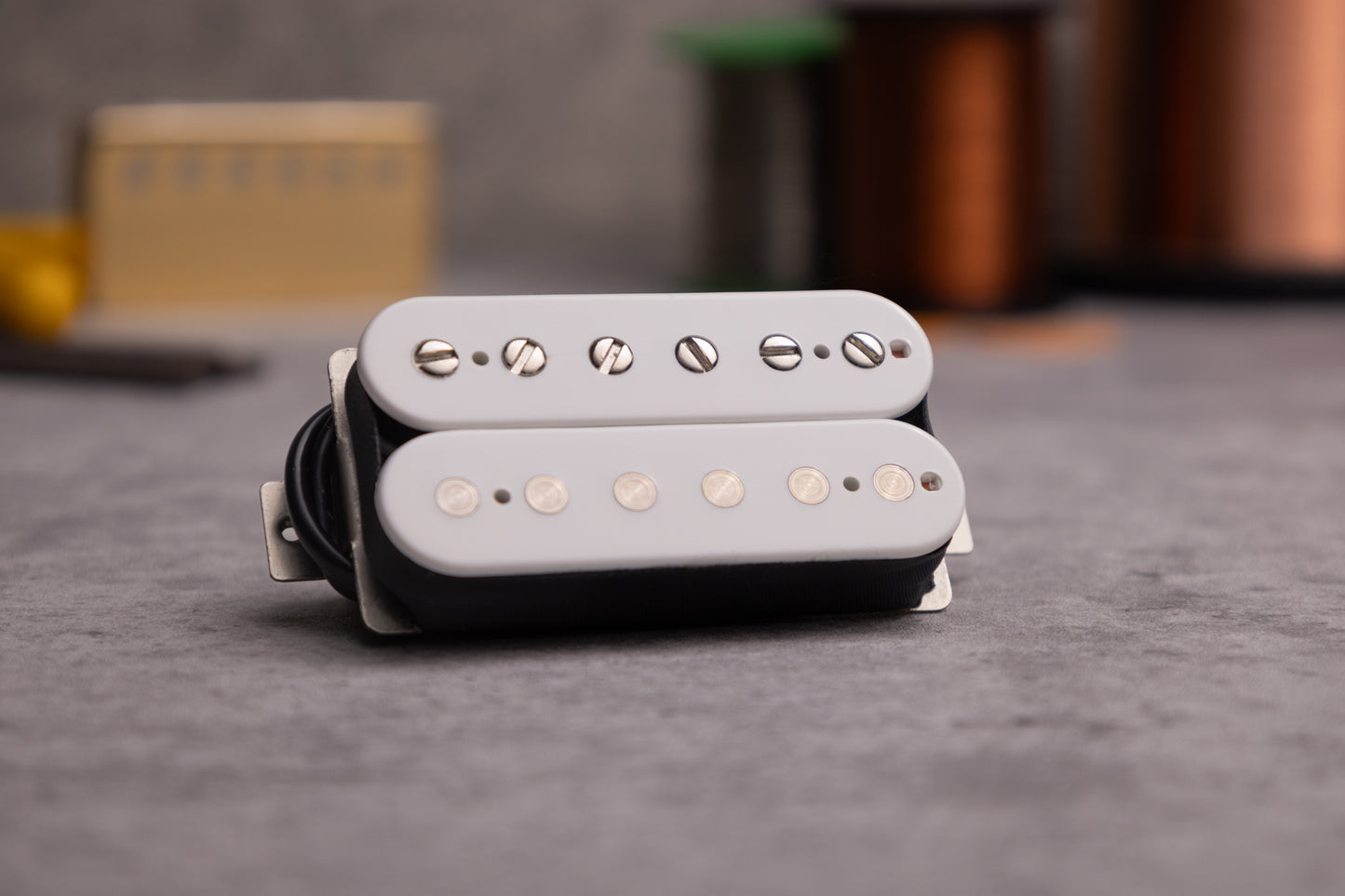

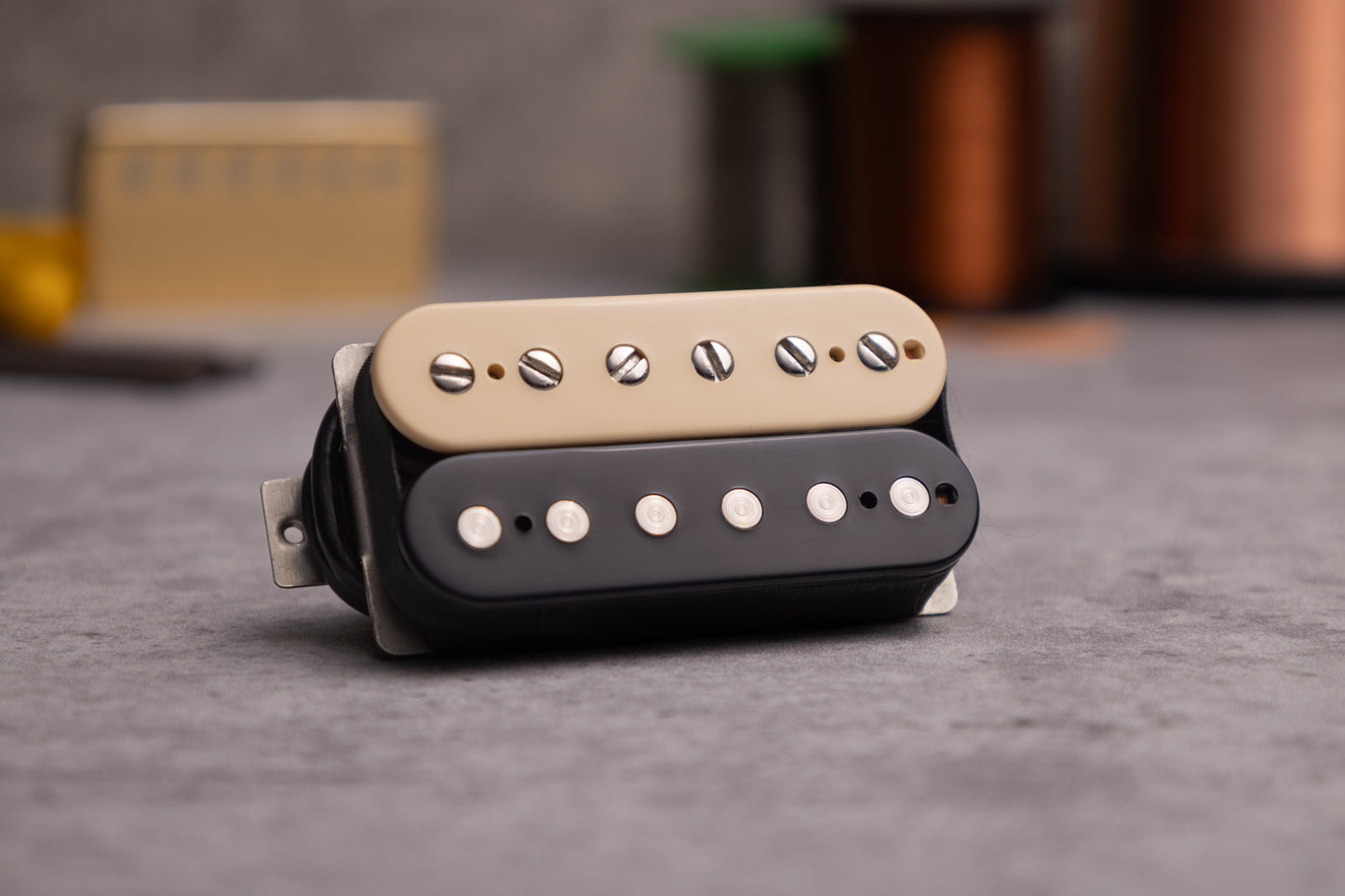

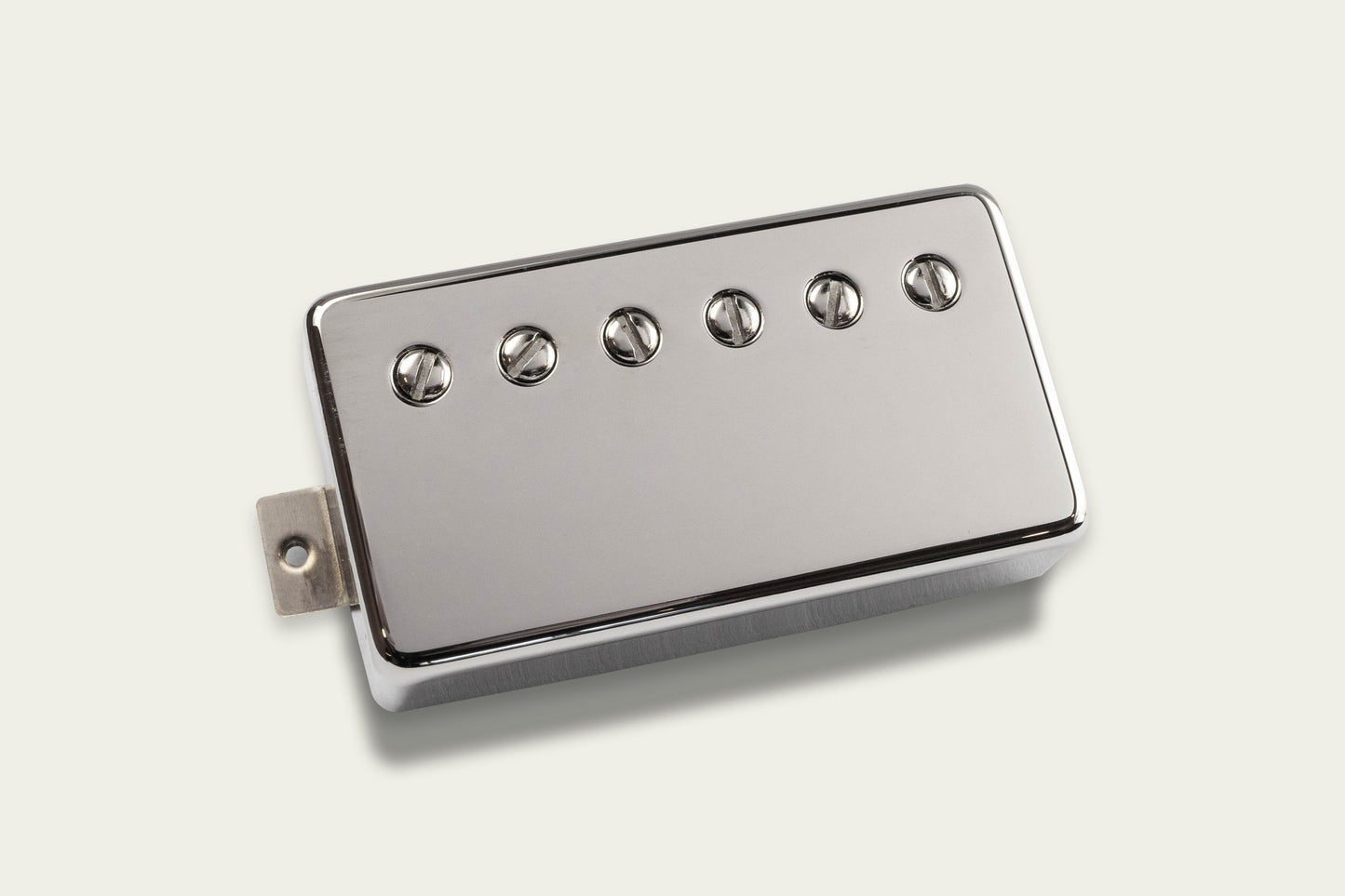

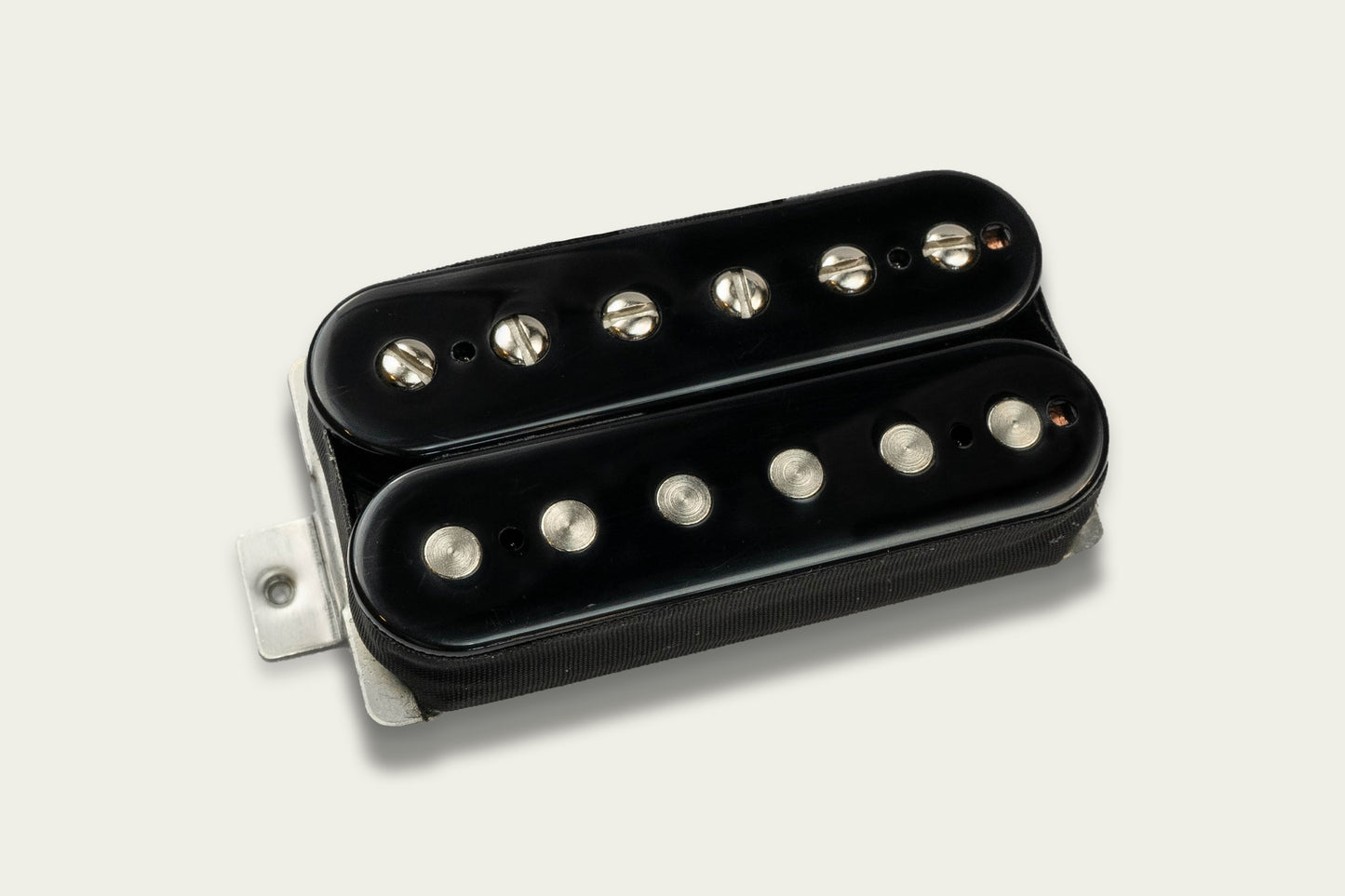

Used by some of the world’s leading custom guitar makers, our Rocksong set is the perfect “hybrid-vintage” set.
The neck pickup is smooth and sustainful – perfect for everything from jazz to distortion saturated rock. The bridge pickup is a super-charged vintage PAF, offering power and dynamics with a clear top end.
All Rocksong pickups are fully wax potted to avoid microphonic feedback, and come supplied with #3/48 screws, springs and an installation guide.
Available individually or as a set. Four conductor wiring as standard on all models.
Neck 7.9k / Bridge 11.8k / F-spaced Bridge 12.2k, Alnico 2
Tech Specs
| Rocksong Neck | Rocksong Bridge | |
|---|---|---|
| Model | H1N | H1B |
| Magnet | Alnico 2 Bar | Alnico 2 Bar |
| DCR | 7.9k | 11.8k (F-spaced 12.2k) |
| Inductance | 4.4H | 6.6H |
| Hookup Wire | 4-Conductor | 4-Conductor |
| Baseplate | Nickel Silver | Nickel Silver |
Dimensions
Installation & Wiring Diagrams
- 2 Humbuckers / 1 Vol / 1 Tone / 3-Way Toggle
- 2 Humbuckers / 1 Vol / 1 Tone / 3-Way Toggle / Push-Pull Coil Split (Vol)
- 2 Humbuckers / 1 Vol / 1 Tone / 3-Way Toggle / Push-Pull Coil Split (Tone)
- 2 Humbuckers / 2 Vol / 2 Tone / 3-Way Toggle
- 2 Humbuckers / 2 Vol / 2 Tone / 3-Way Toggle / Push-Pull Coil Split
- 1 Humbucker / 1 Vol
- 1 Humbucker / 1 Vol / 1 Tone
- 1 Humbucker / 1 Vol / 1 Tone / Push-Pull Coil Split (Volume)
- 2 Humbuckers / 2 Vol / 2 Tone / 3-Way Toggle (50’s Wiring)
- 2 Humbuckers / 1 Vol / 1 Tone / 5-Way Lever
