Apex Classic HSS Set

Full Description

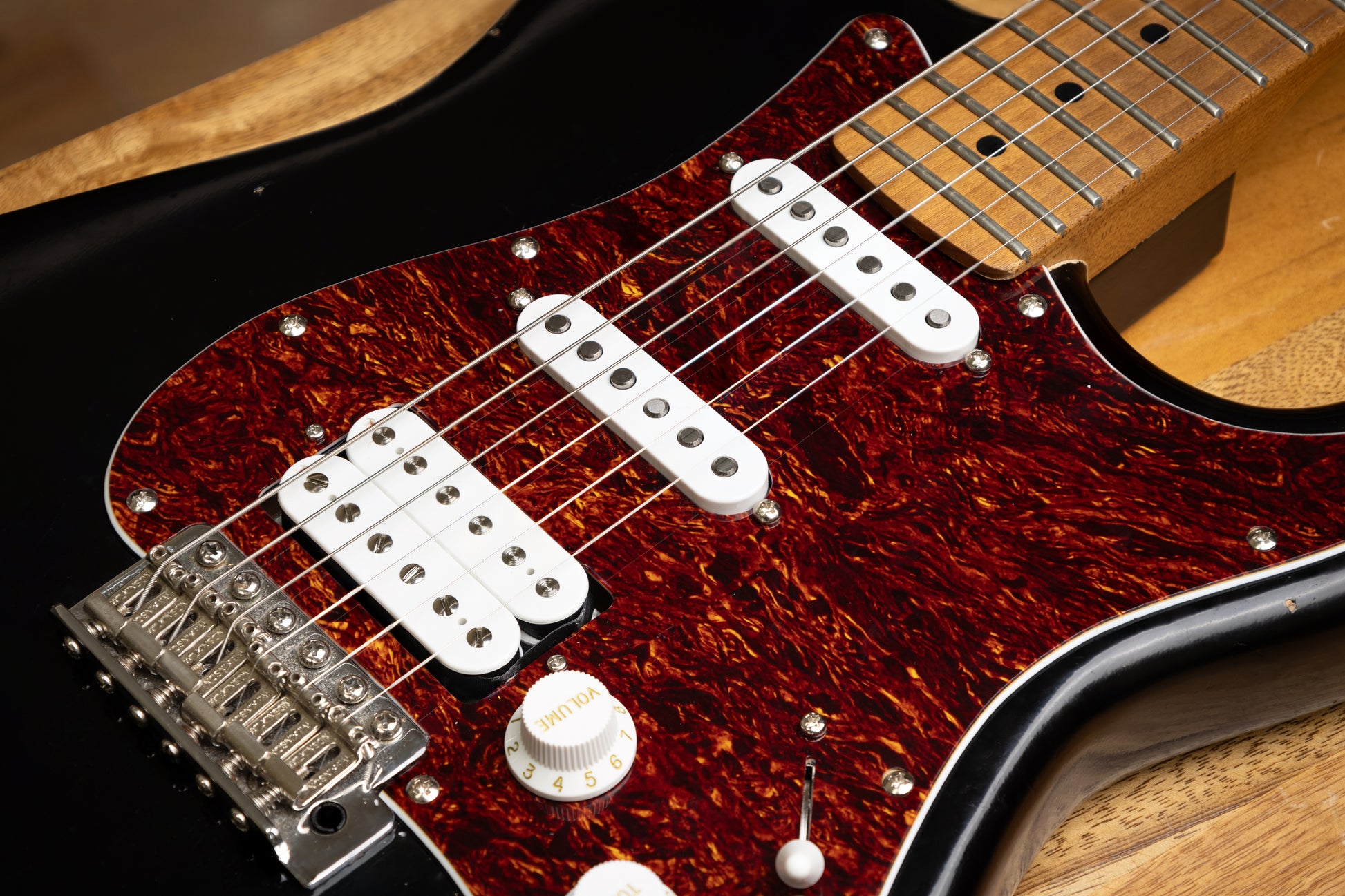

The Tonerider Apex Classic HSS Set is a vintage-voiced inspired HSS set for all Strat type guitars. It features two hum-cancelling Apex Classic neck and middle pickups combined with the Alnico 2 Classic humbucker.

The Apex Classic Neck and Middle Pickups allows players to enjoy breathtaking vintage Strat tone - rich with detail and with bell-like chime, but without the hum. From stage to studio, our twin coil design allows for the natural movement of the strings to be unimpeded. The Apex Classic doesn't have the harsh, nasal sound of many other hum-cancelling pickups.

In the Bridge position, the Alnico 2 Classic is the perfect humbucker for clean tones all the way to overdrive sounds, providing warmth, fullness and sustain.

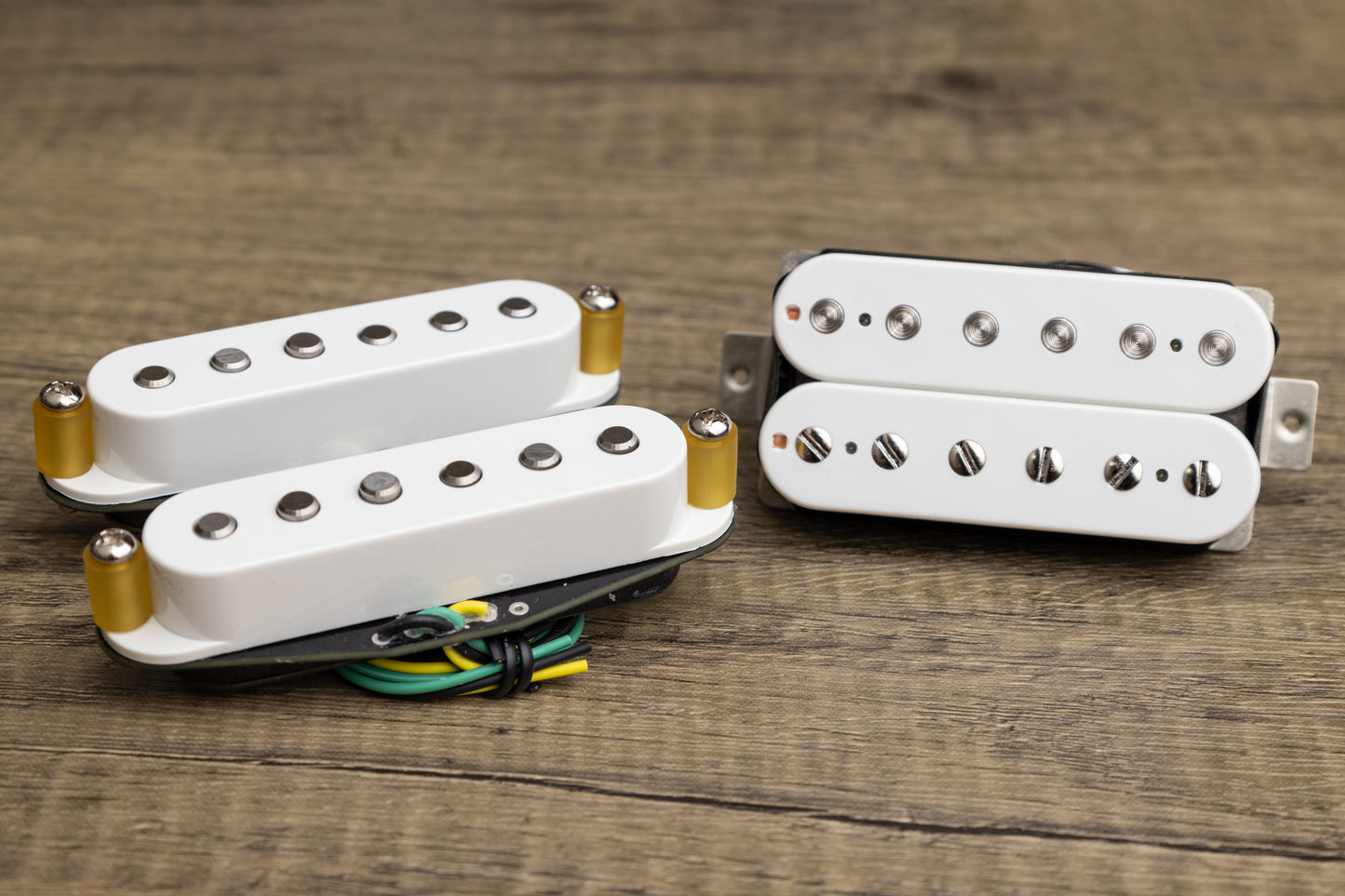

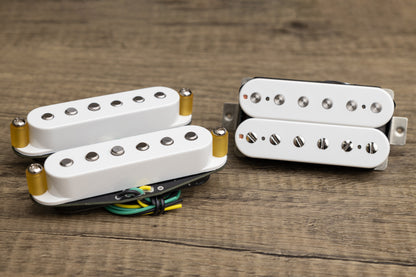

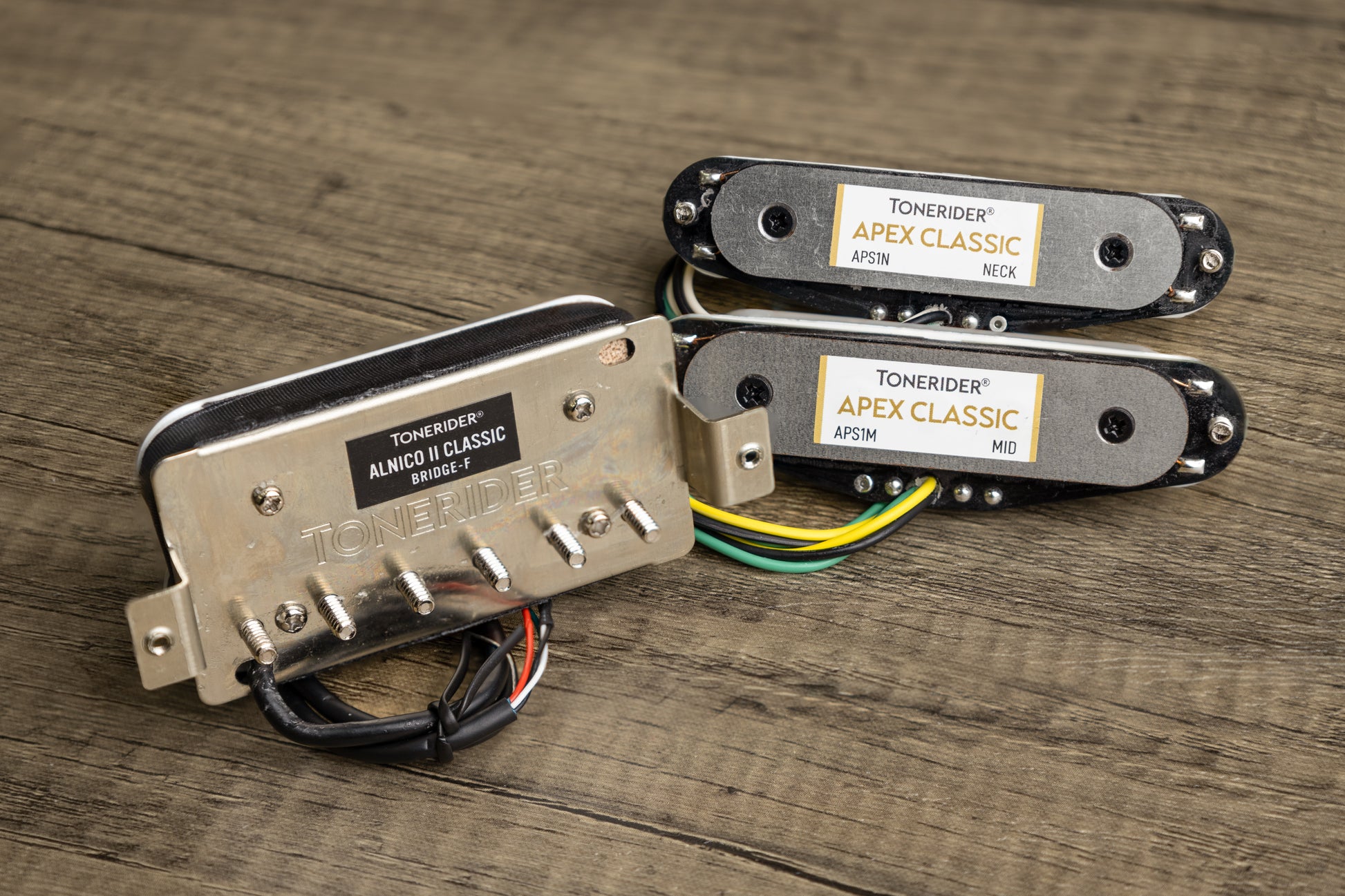

The Apex Classic HSS comprises of the following three pickups:

Neck: Apex Classic Neck Pickup for Stratocasters (APS1-N)

    6.3k, Alnico 5 Magnet, Two-Conductor Wiring

Mid: Apex Classic Mid Pickup for Stratocasters (APS1-M)

    6.3k, Alnico 5 Magnet, Two-Conductor Wiring

Bridge: Alnico II Classic F-Spaced Bridge Pickup (AC2B-F)

    8.5k, Alnico 2 Magnet, Four Conductor Wiring

Tech Specs

Dimensions

• F-spaced 52.4mm Uncovered Humbucker
• F-spaced 52.4mm Covered Humbucker
• Apex Stratocaster Pickups

Installation & Wiring Diagrams

• 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade / Push-Pull Coil Split (Volume)
• 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade (Autosplit)
• 1 Humbucker / 2 Single Coils / 1 Vol / 1 Tone / 5-Way Blade (Autosplit)
• 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade
• 1 Humbucker / 2 Single Coils / 1 Vol / 1 Tone / 5-Way Blade
