Full Description

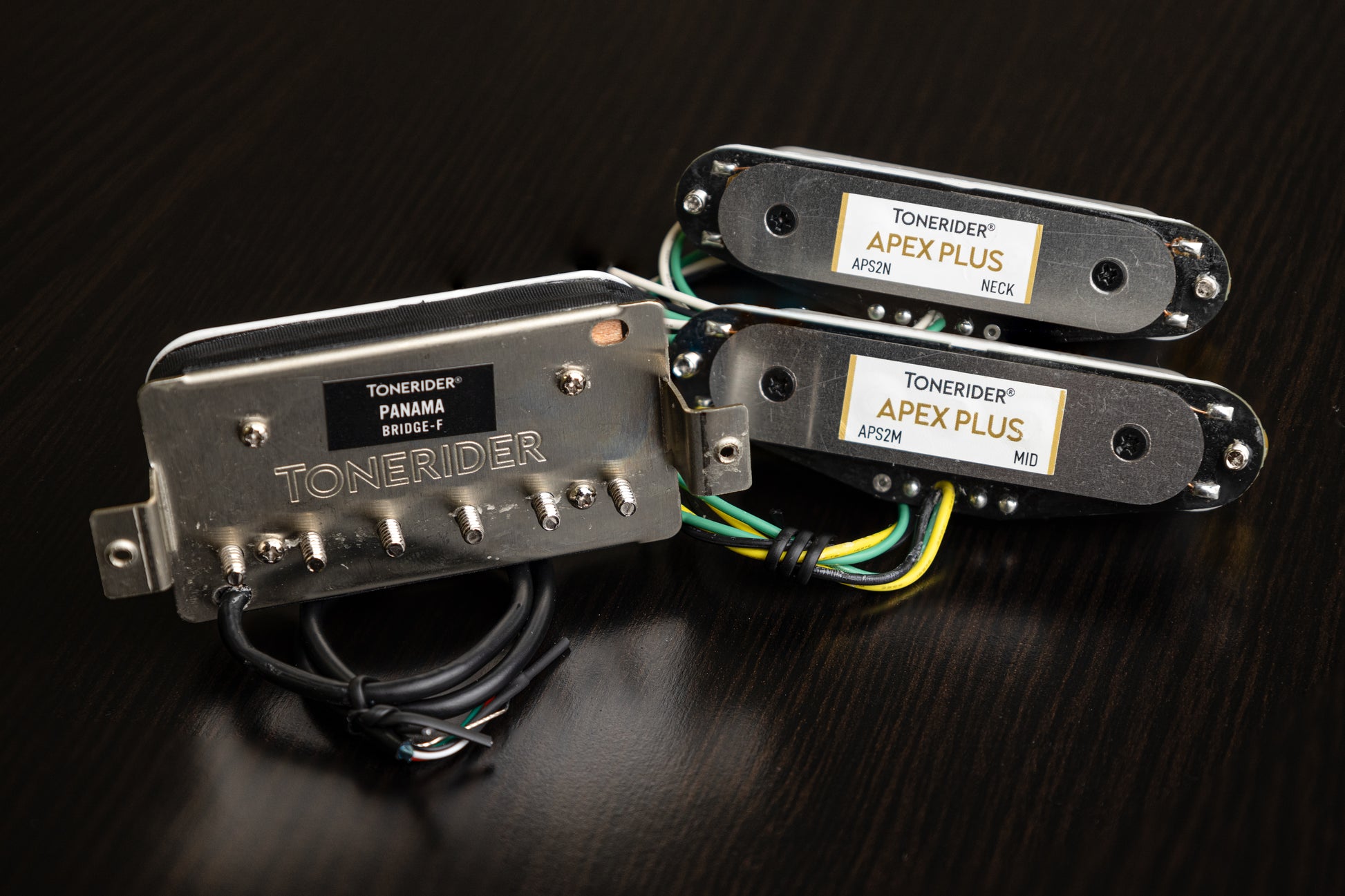

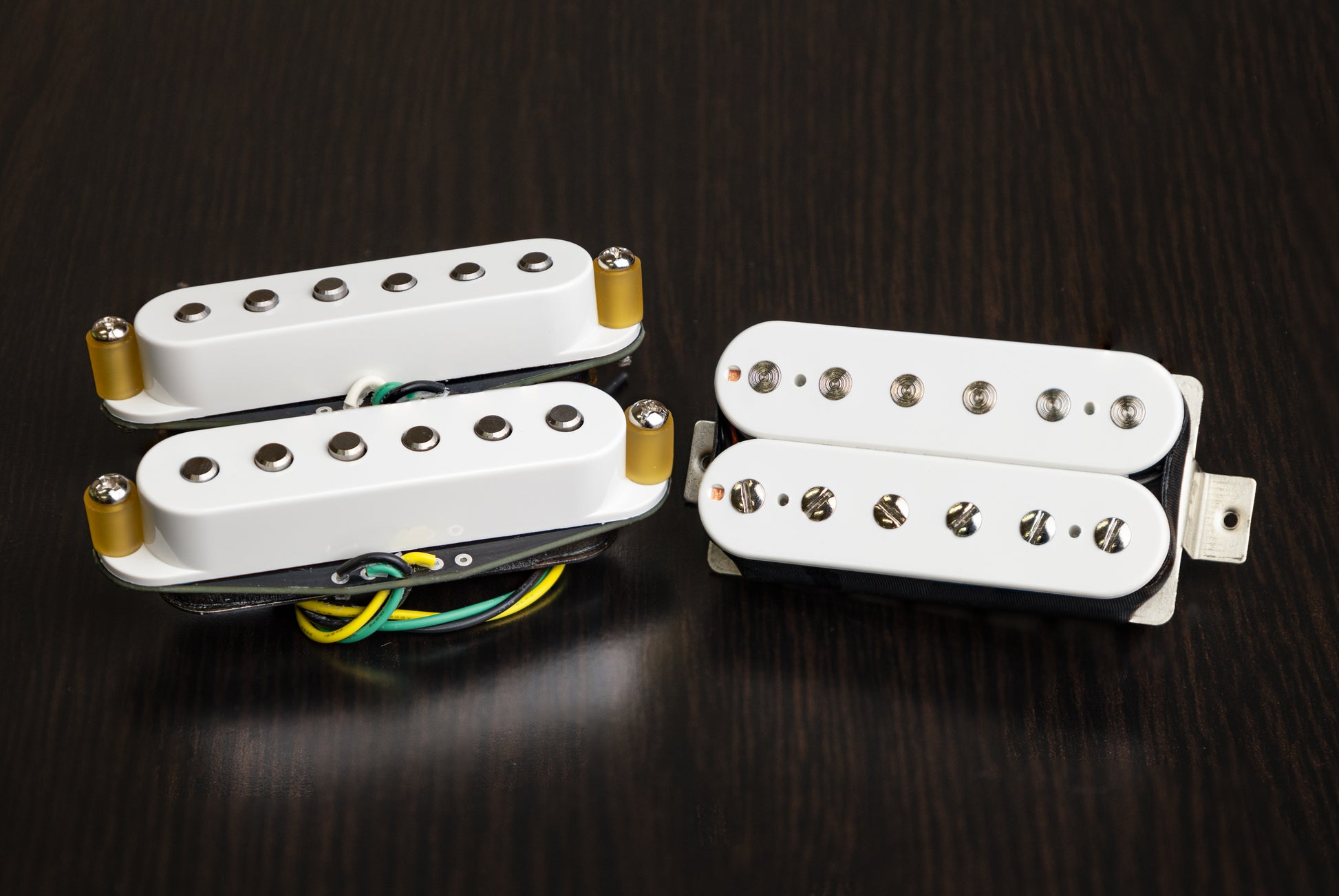

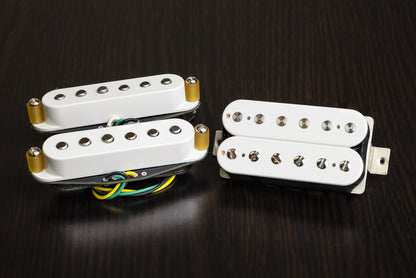

The Apex Plus HSS Set uses a pair of Tonerider Apex Plus hum-cancelling strat pickups in the neck and middle positions, combined with a bridge humbucker that packs a punch - the Tonerider Panama. The result? A range of higher output sounds that'll take you from blues to full-on rock, metal and shred sounds!
The neck and middle pickups deliver classic Strat tones with enough punch for Texas blues and rock, all with studio level hum-cancellation from our Apex dual coil technology.
The Panama, a medium-high output humbucker, has more output than the Apex Plus in the neck and middle positions - so switching to the bridge position feels like shifting up an extra gear. The EQ's of the Apex Plus and Panama are wonderfully complimentary, meaning that no large adjustment of your amp's settings are needed when switching between positions.
The Apex Plus HSS comprises of the following three pickups:
Neck: Apex Plus Neck Pickup for Stratocasters (APS2-N)
9.9k Alnico 5 Two-Conductor
Mid: Apex Plus Mid Pickup for Stratocasters (APS2-M)
10.0k Alnico 5 Two-Conductor
Bridge: Panama F-Spaced Bridge Pickup (H4B-F)
14.5k Custom Ceramic Four Conductor
Tech Specs
| Apex Plus Neck | Apex Plus Middle | Panama Bridge F | |
|---|---|---|---|
| Model | APS2-N | APS2-M | H4B-F |
| Magnet | Alnico 5 Rod | Alnico 5 Rod | Ceramic Bar |
| DCR | 9.9k | 10k | 14.5k |
| Inductance | 3.7H | 3.9H | 7.6H |
| Stagger | Right, Left or Flat | Right, Left or Flat |
Dimensions
Wiring Diagrams
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade / Push-Pull Coil Split (Volume)
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade (Autosplit)
- 1 Humbucker / 2 Single Coils / 1 Vol / 1 Tone / 5-Way Blade (Autosplit)
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade
- 1 Humbucker / 2 Single Coils / 1 Vol / 1 Tone / 5-Way Blade
