Full Description

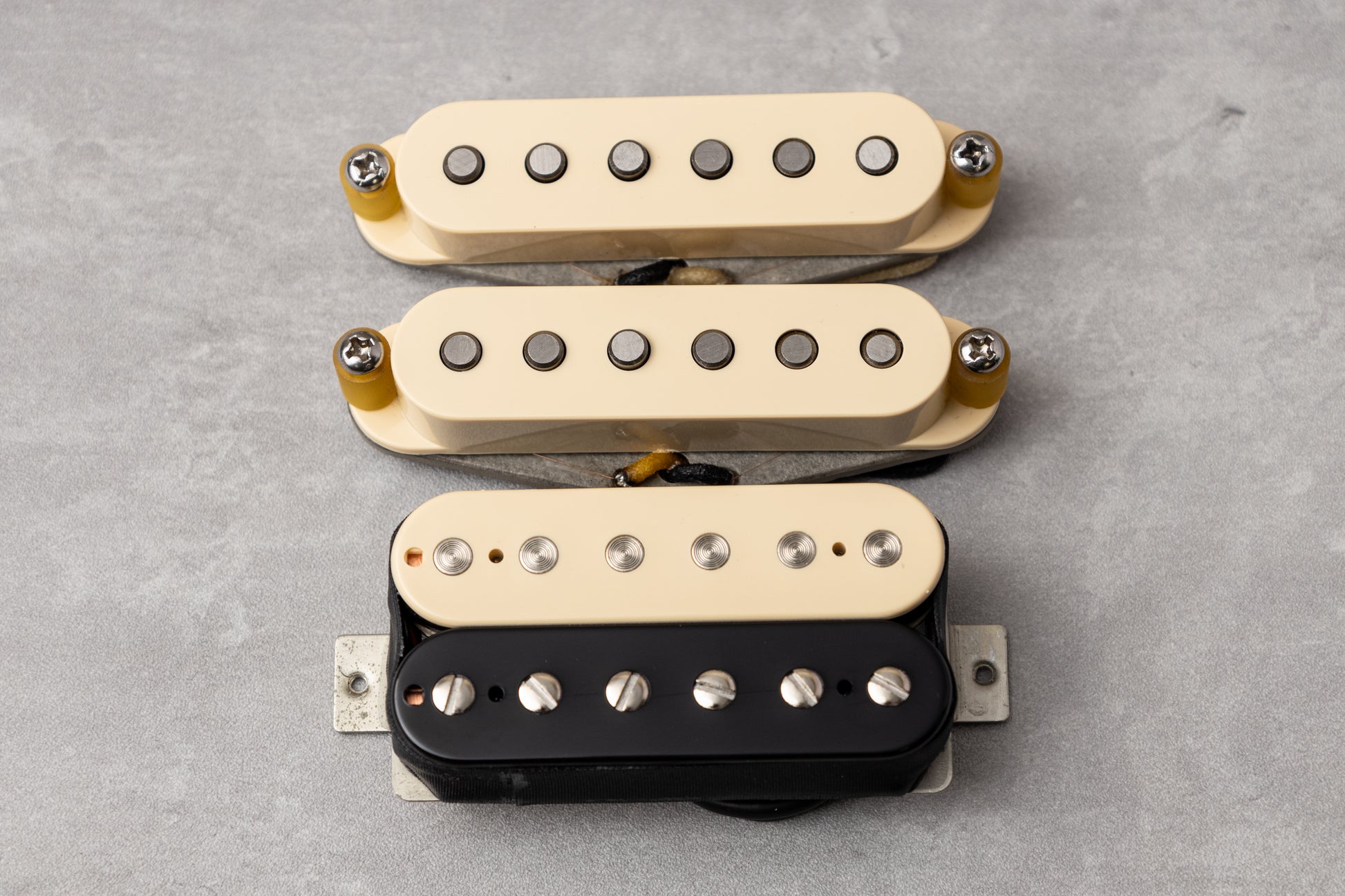

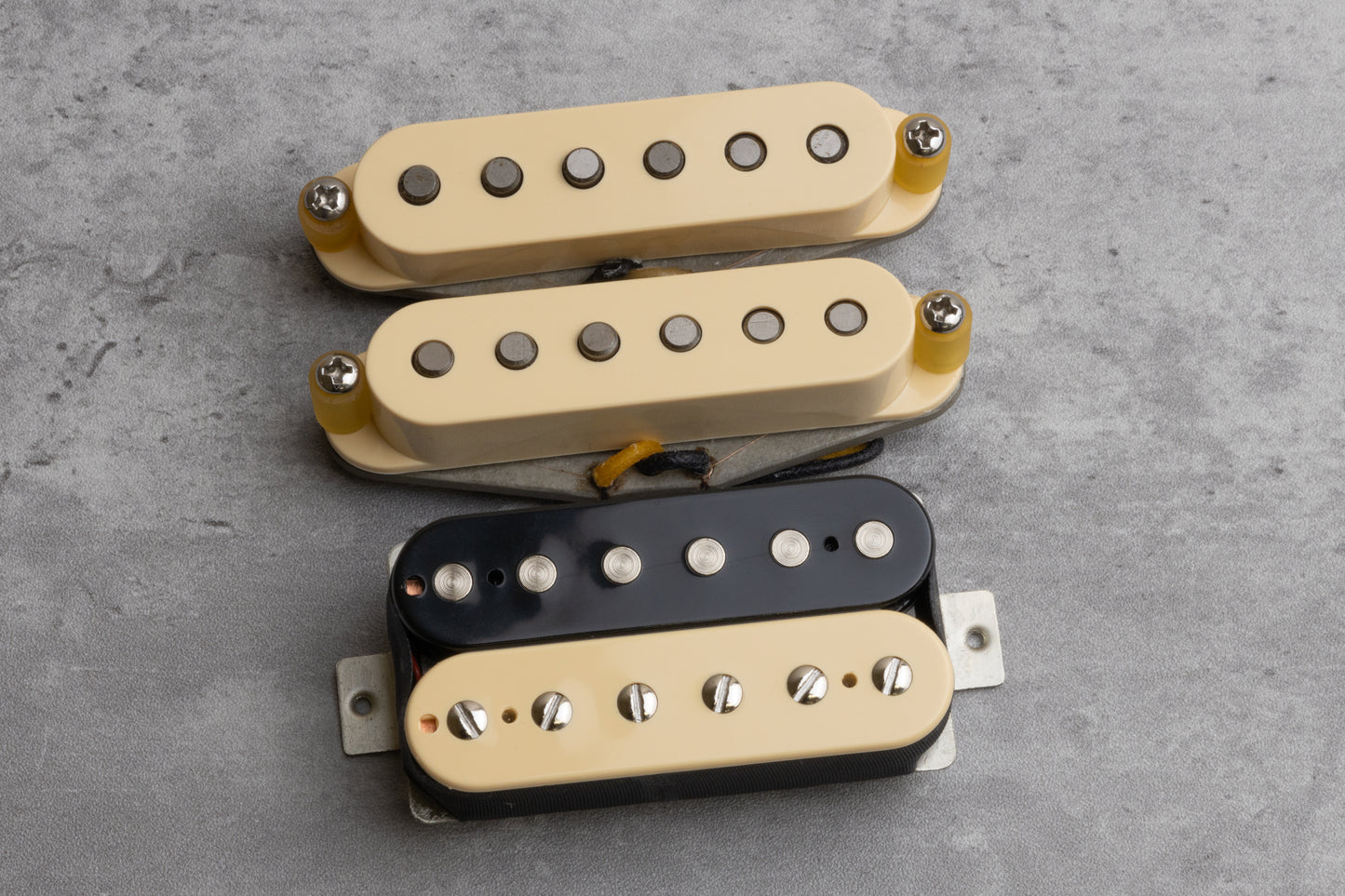

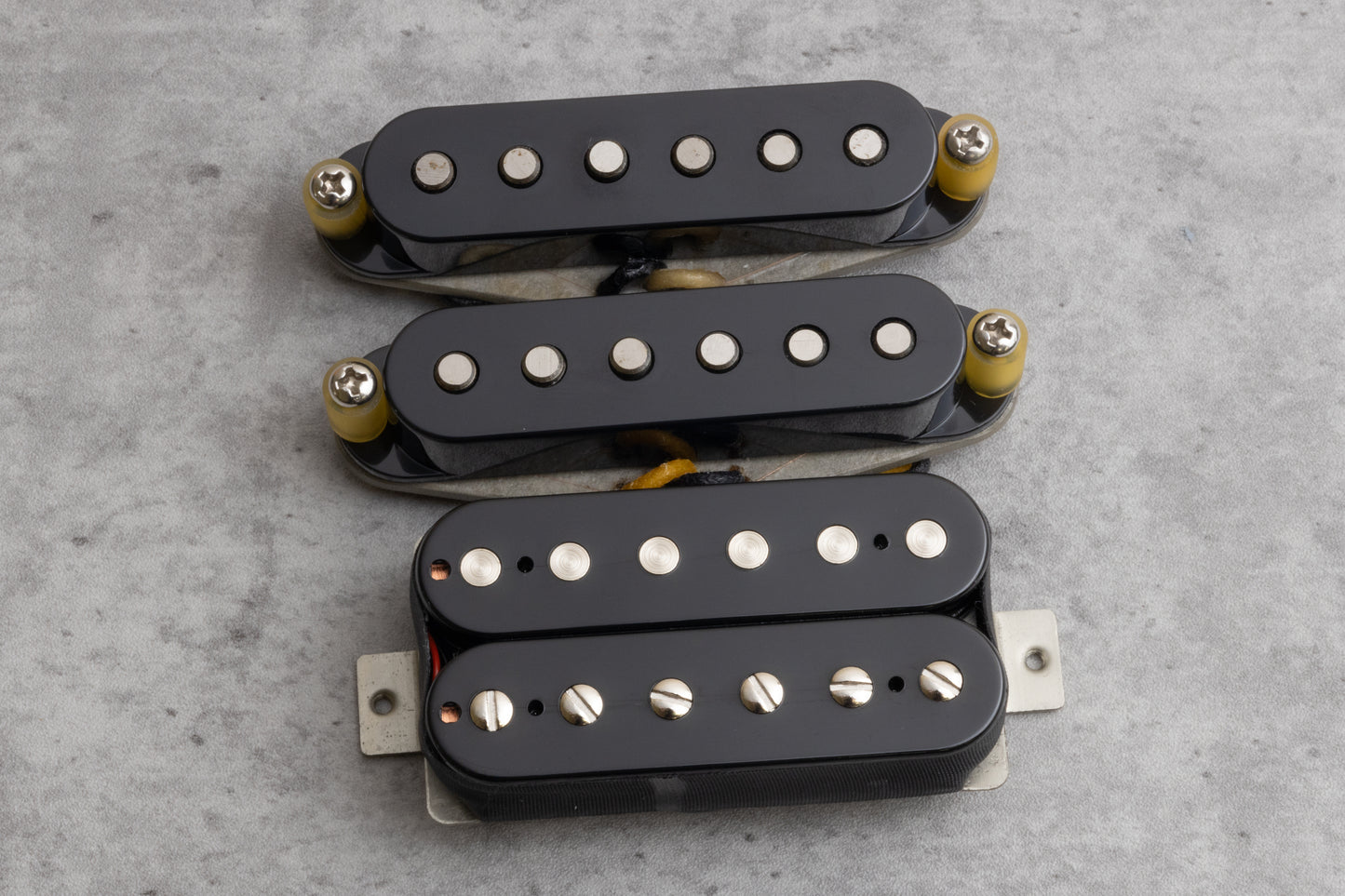

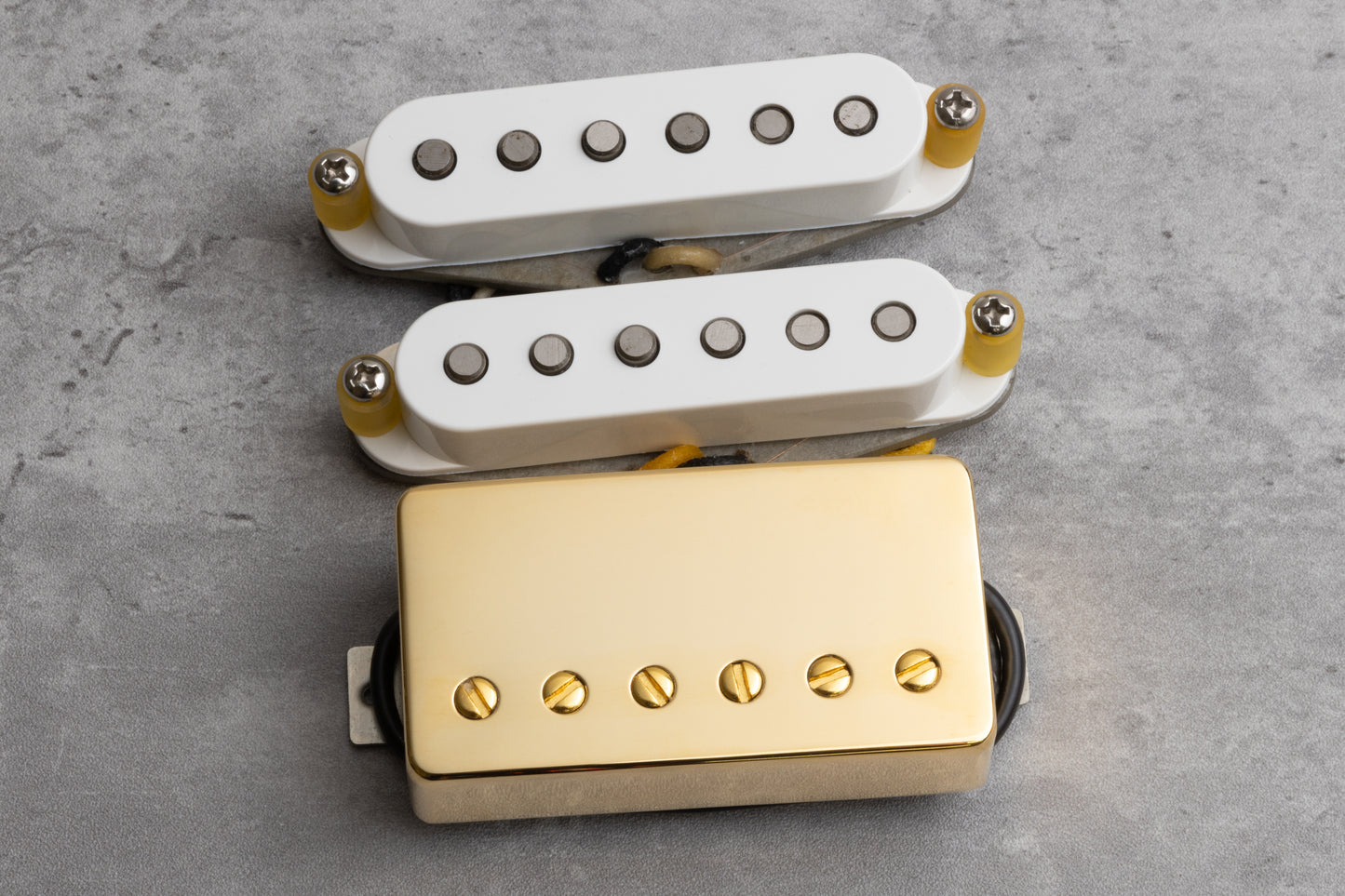

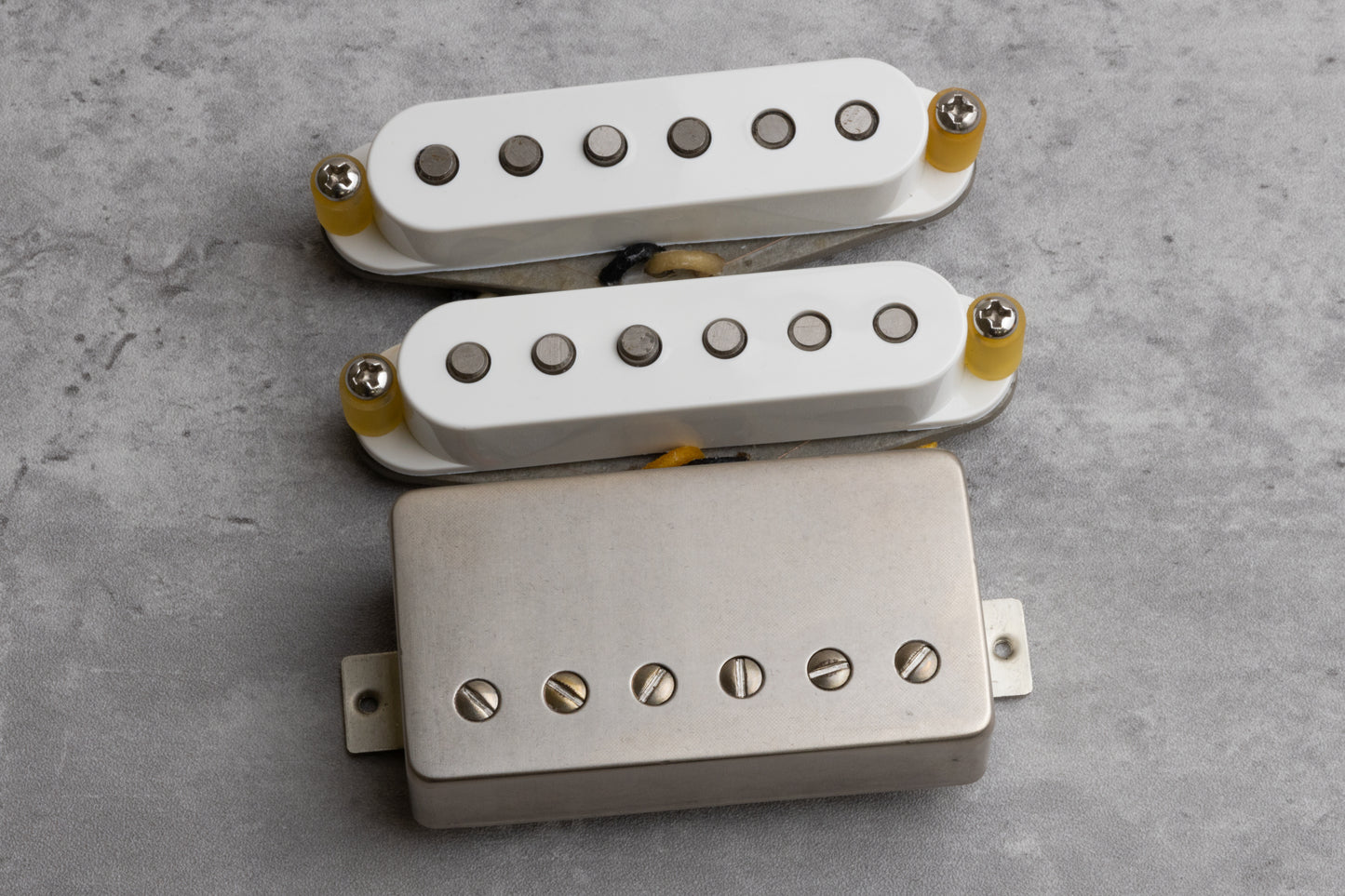

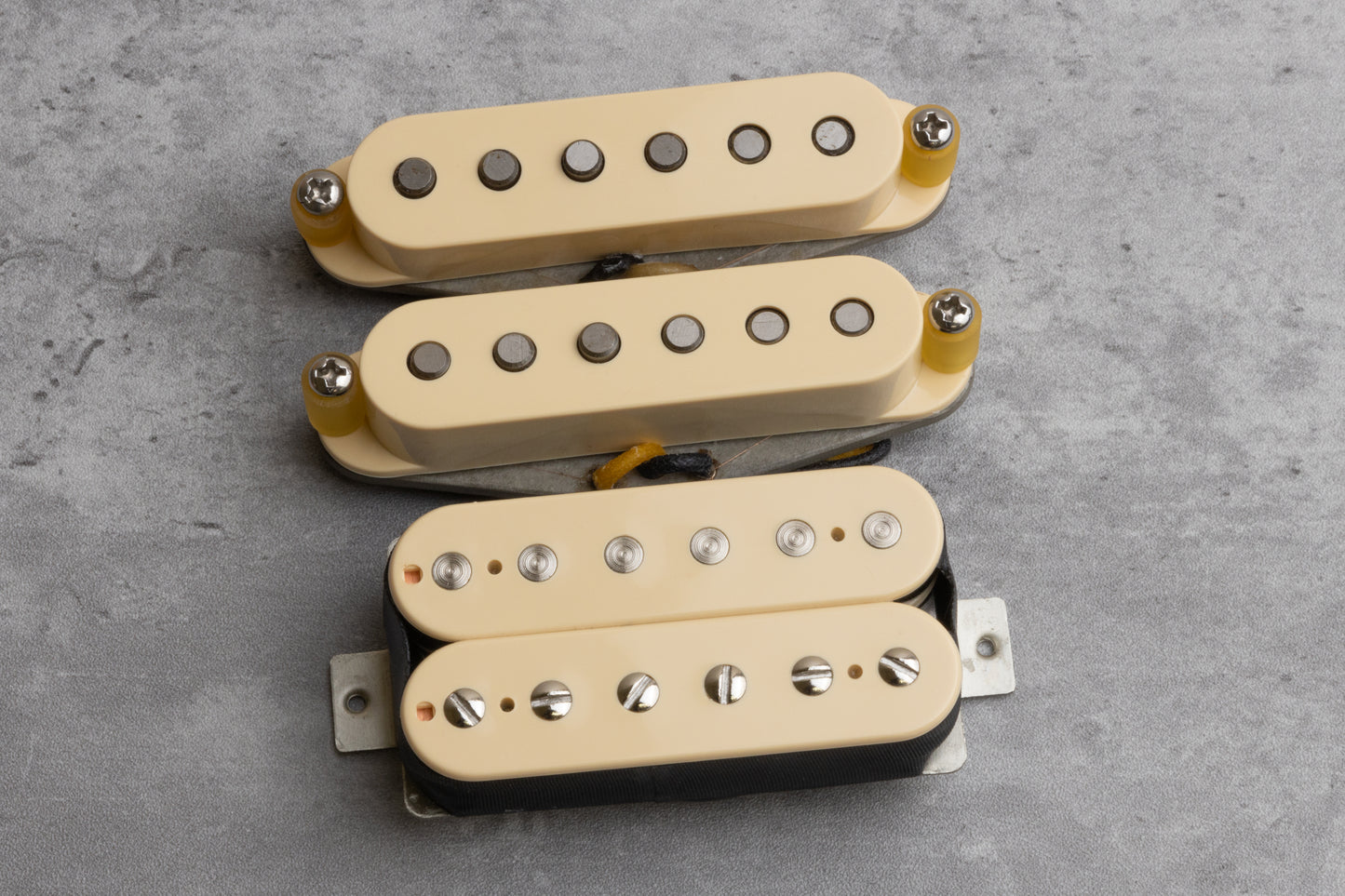

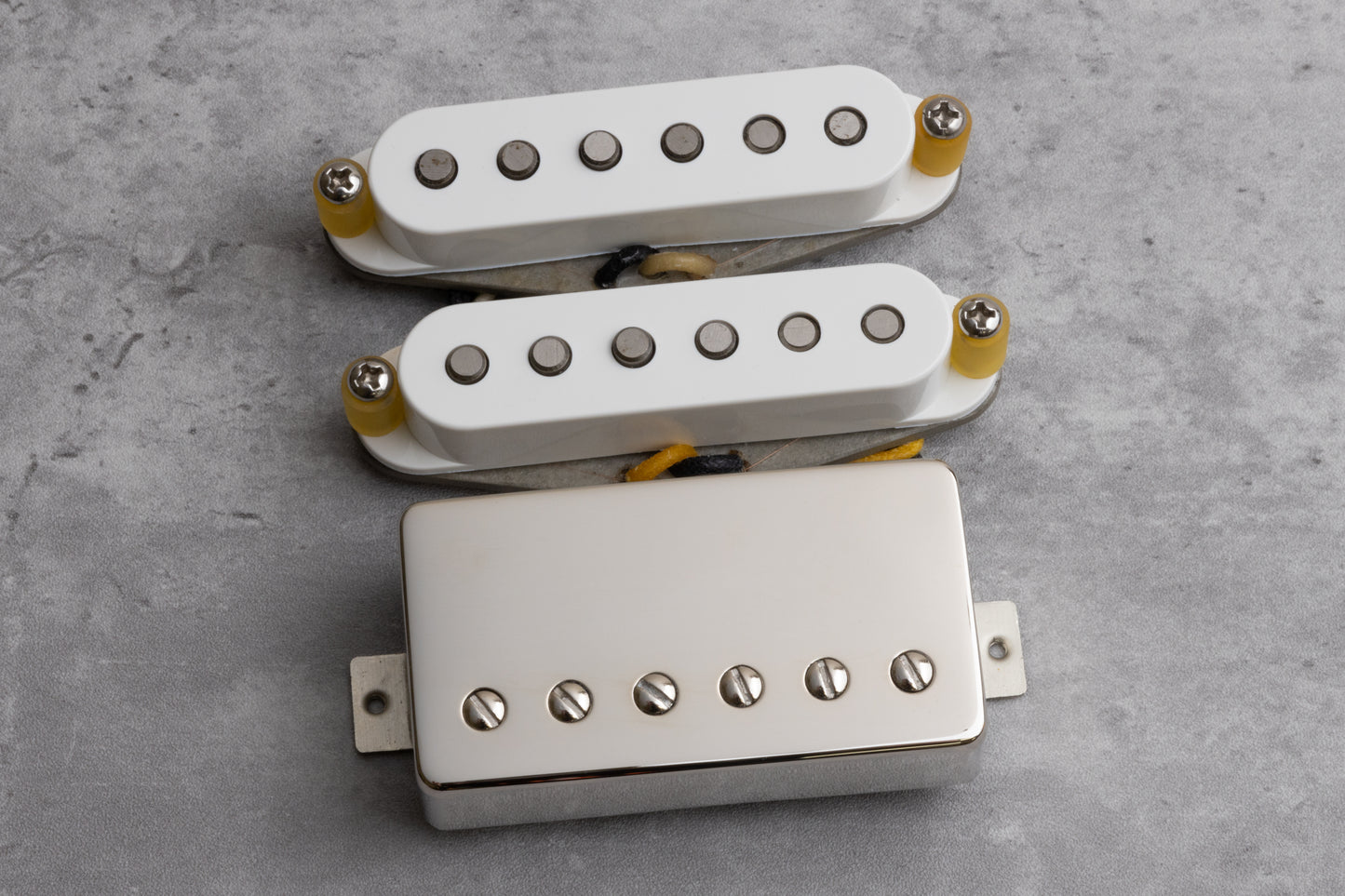

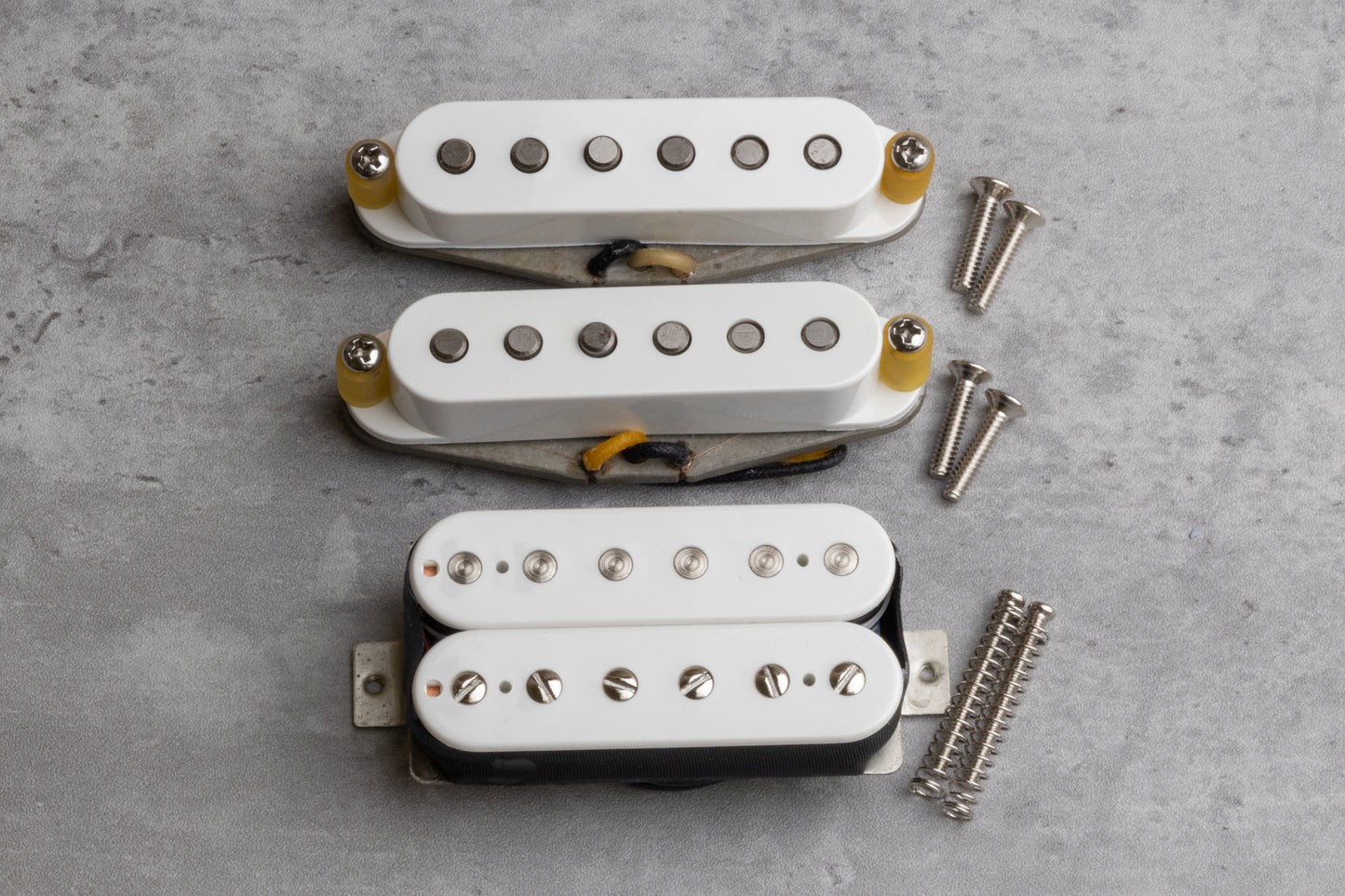

With all three pickups slightly overwound on Alnico 5 magnets, this set is designed to give a little more push. Combining our Classic Blues single coils with our Birmingham bridge humbucker. This set sizzles!

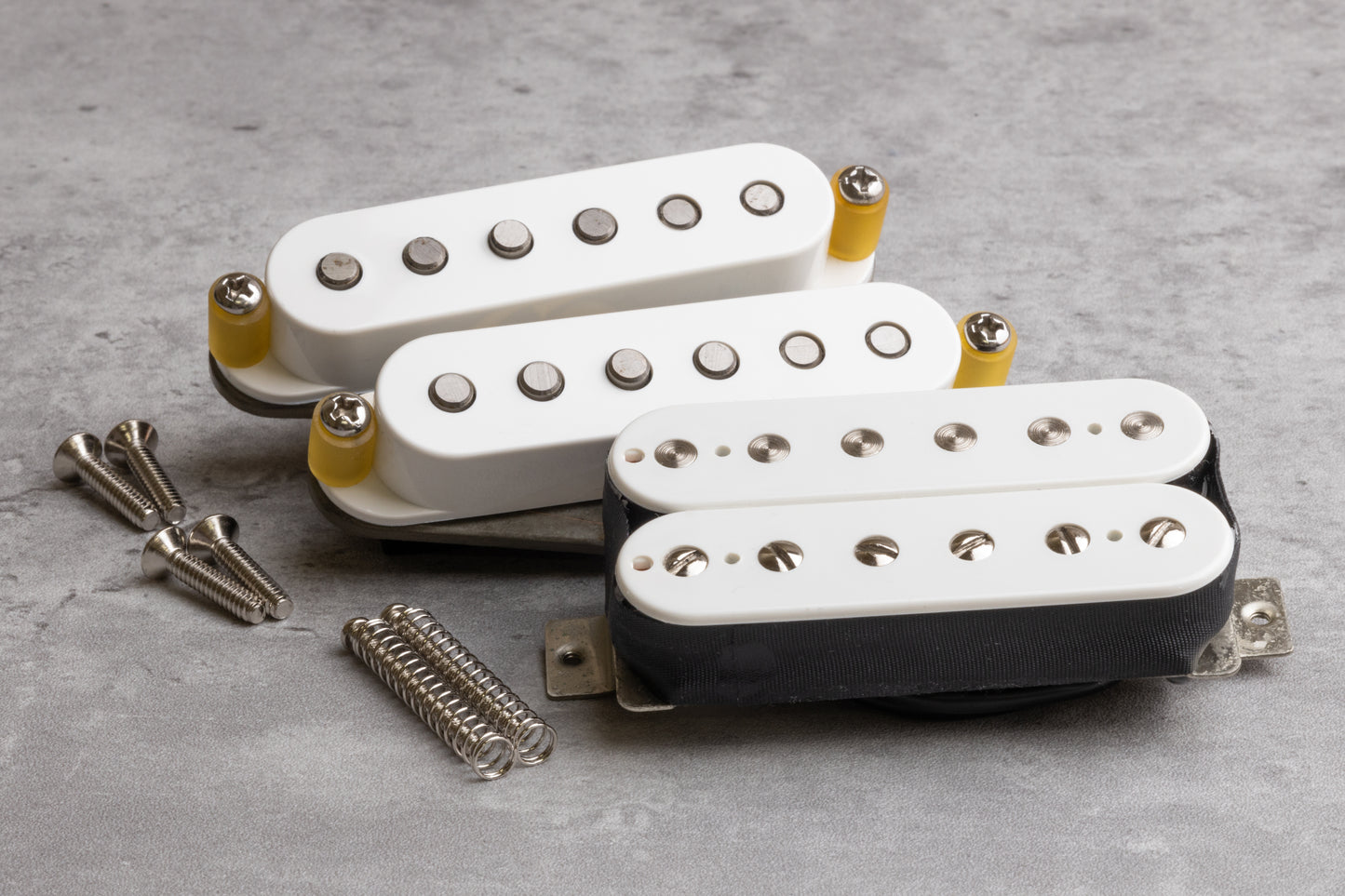

Imperial sized height adjustment screws and springs included.
All pickups in this set are wax potted to avoid microphone feedback.
Neck 6.3k / Mid 6.4k / Bridge 8.9k
Tech Specs
| Classic Blues Neck | Classic Blues Middle | Birmingham Bridge | |
|---|---|---|---|
| Model | S3N | S3M | AC5B-F |
| Magnet | Alnico 5 Rod | Alnico 5 Rod | Alnico 5 Bar |
| DCR | 6.3k | 6.4k | 8.9k |
| Inductance | 2.4H | 2.5H | 5.5H |
| Stagger | TR Vintage Modified | TR Vintage Modified | |
| Hookup Wire | Vintage Braid | Vintage Braid | 4-Conductor |
| Winding Direction | Clockwise | Counter-Clockwise |
Dimensions
Wiring Diagrams
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade / Push-Pull Coil Split (Volume)
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade (Autosplit)
- 1 Humbucker / 2 Single Coils / 1 Vol / 1 Tone / 5-Way Blade (Autosplit)
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade
- 1 Humbucker / 2 Single Coils / 1 Vol / 1 Tone / 5-Way Blade
Full Description
With all three pickups slightly overwound on Alnico 5 magnets, this set is designed to give a little more push. Combining our Classic Blues single coils with our Birmingham bridge humbucker. This set sizzles!
Imperial sized height adjustment screws and springs included.
All pickups in this set are wax potted to avoid microphone feedback.
Neck 6.3k / Mid 6.4k / Bridge 8.9k
Tech Specs
| Classic Blues Neck | Classic Blues Middle | Birmingham Bridge | |
|---|---|---|---|
| Model | S3N | S3M | AC5B-F |
| Magnet | Alnico 5 Rod | Alnico 5 Rod | Alnico 5 Bar |
| DCR | 6.3k | 6.4k | 8.9k |
| Inductance | 2.4H | 2.5H | 5.5H |
| Stagger | TR Vintage Modified | TR Vintage Modified | |
| Hookup Wire | Vintage Braid | Vintage Braid | 4-Conductor |
| Winding Direction | Clockwise | Counter-Clockwise |
Dimensions
Installation & Wiring Diagrams
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade / Push-Pull Coil Split (Volume)
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade (Autosplit)
- 1 Humbucker / 2 Single Coils / 1 Vol / 1 Tone / 5-Way Blade (Autosplit)
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade
- 1 Humbucker / 2 Single Coils / 1 Vol / 1 Tone / 5-Way Blade
Media

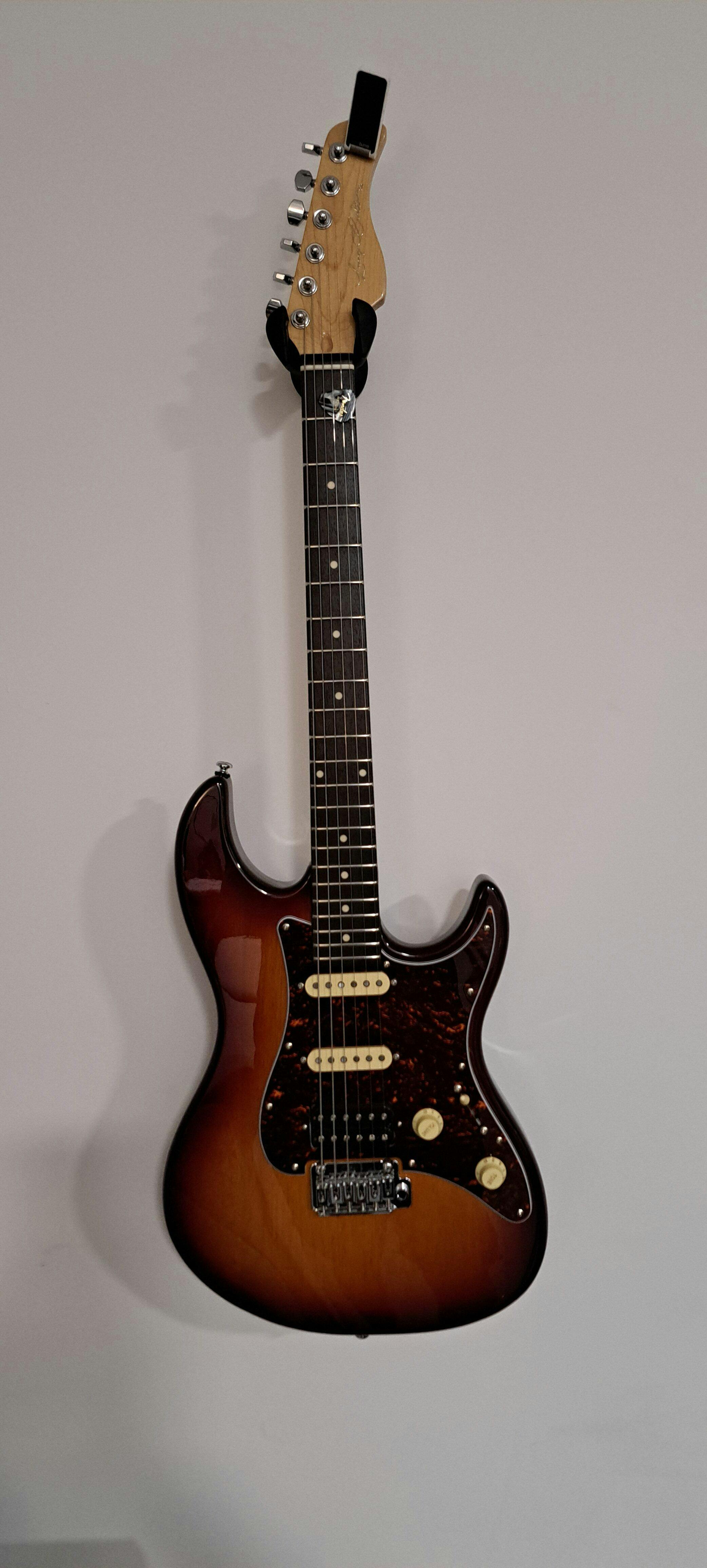

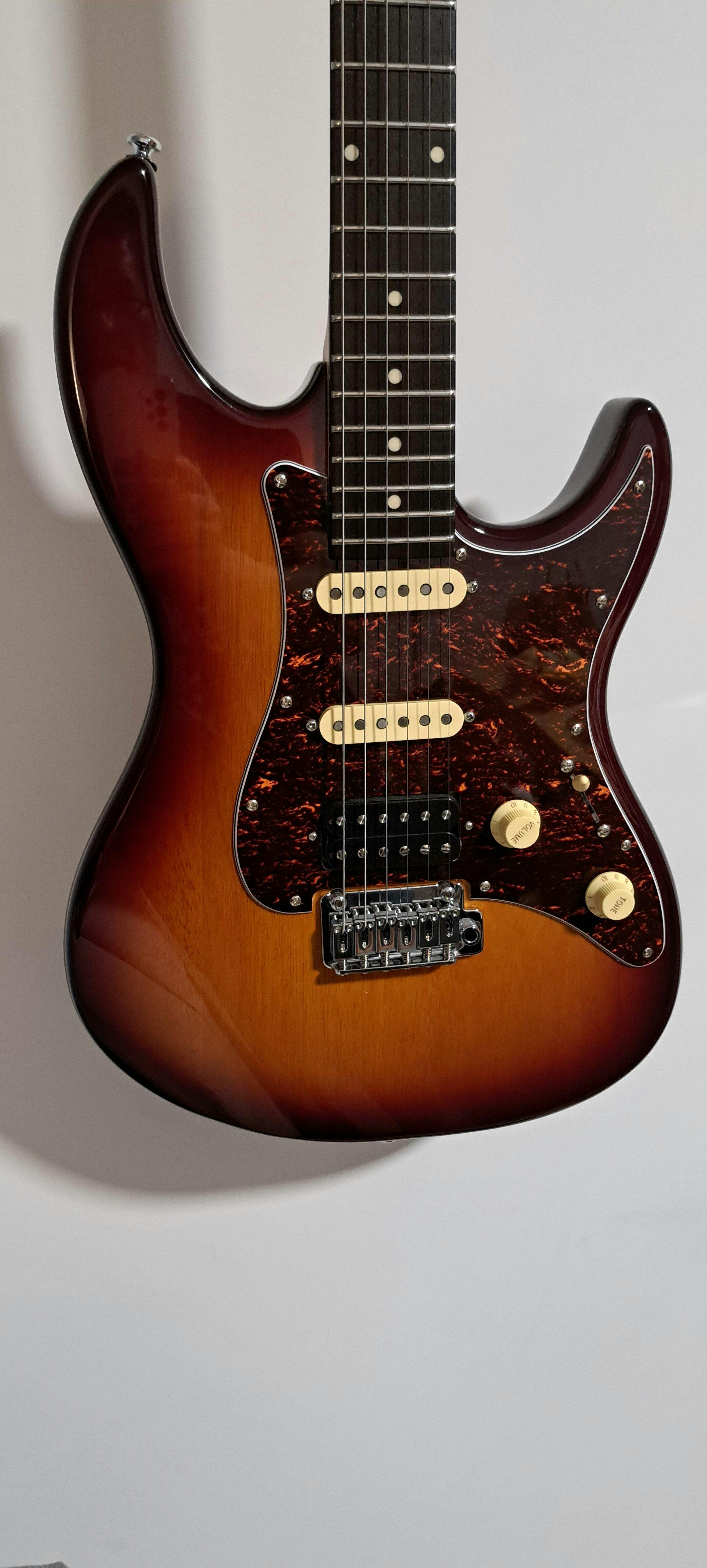

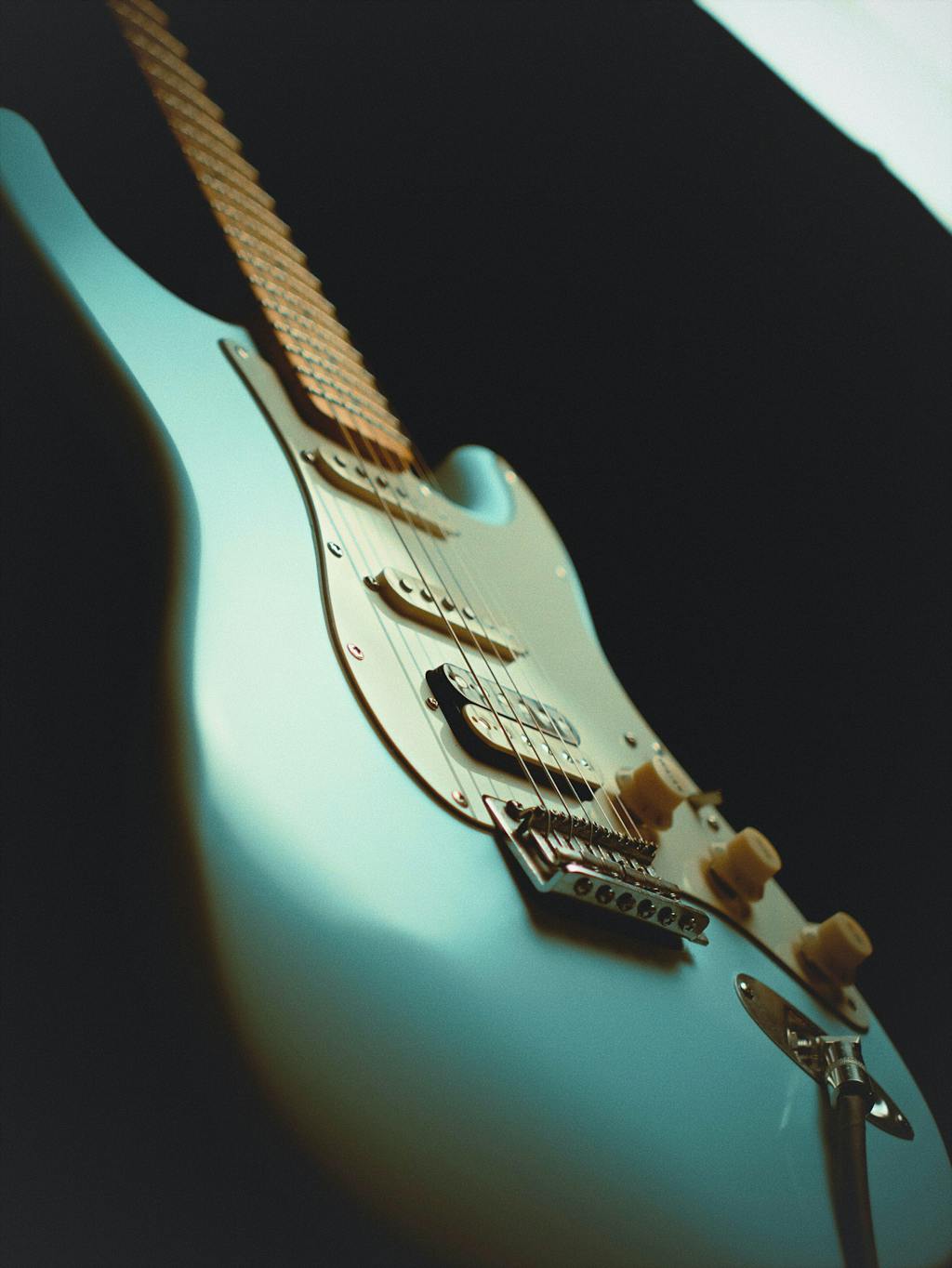

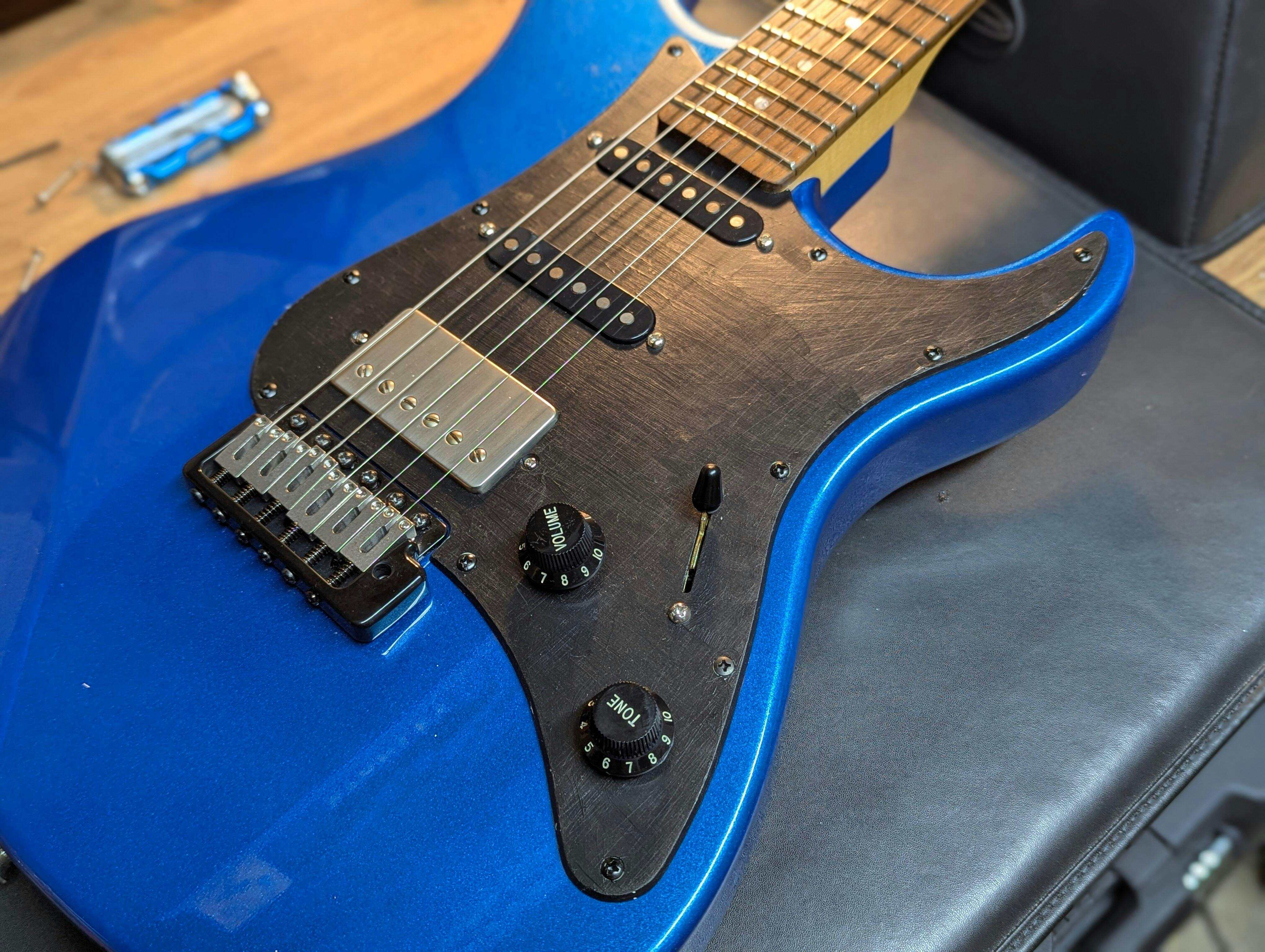

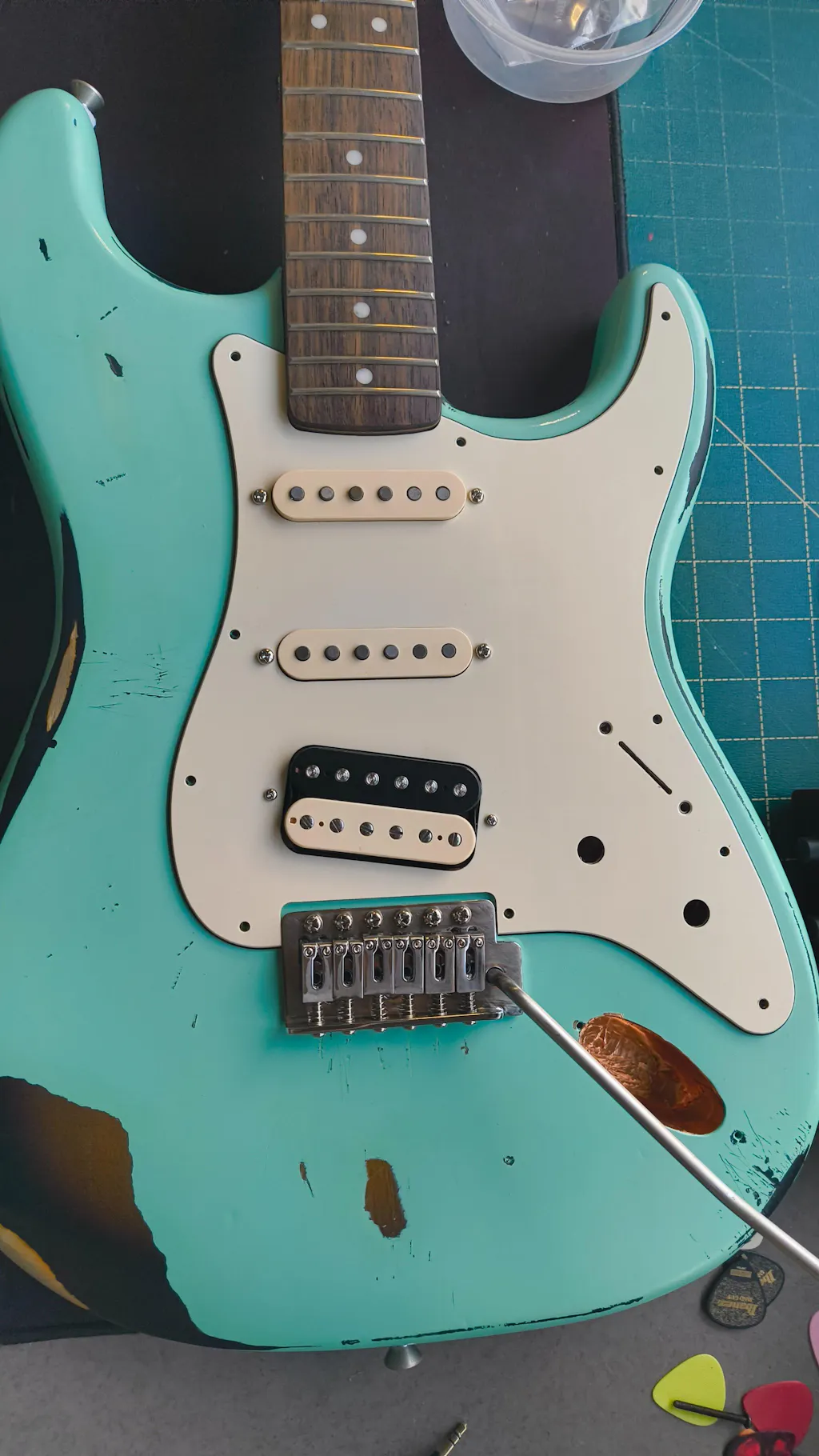

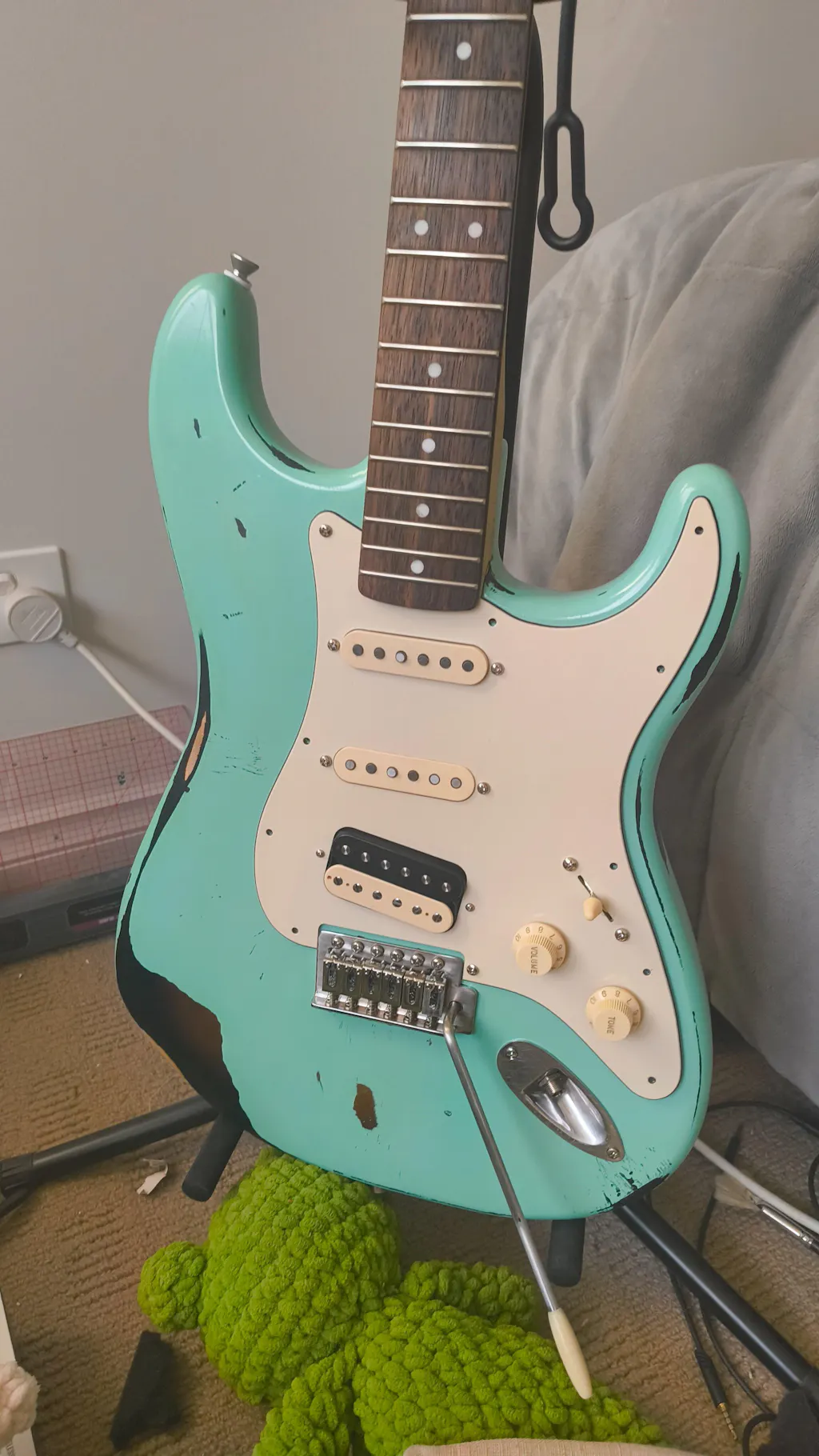

Definitely overwound. I can really hear the difference in output over the vintage pickups I have in my tele. They drive the amp harder. Also much richer in tone than the stock pickups they replaced.

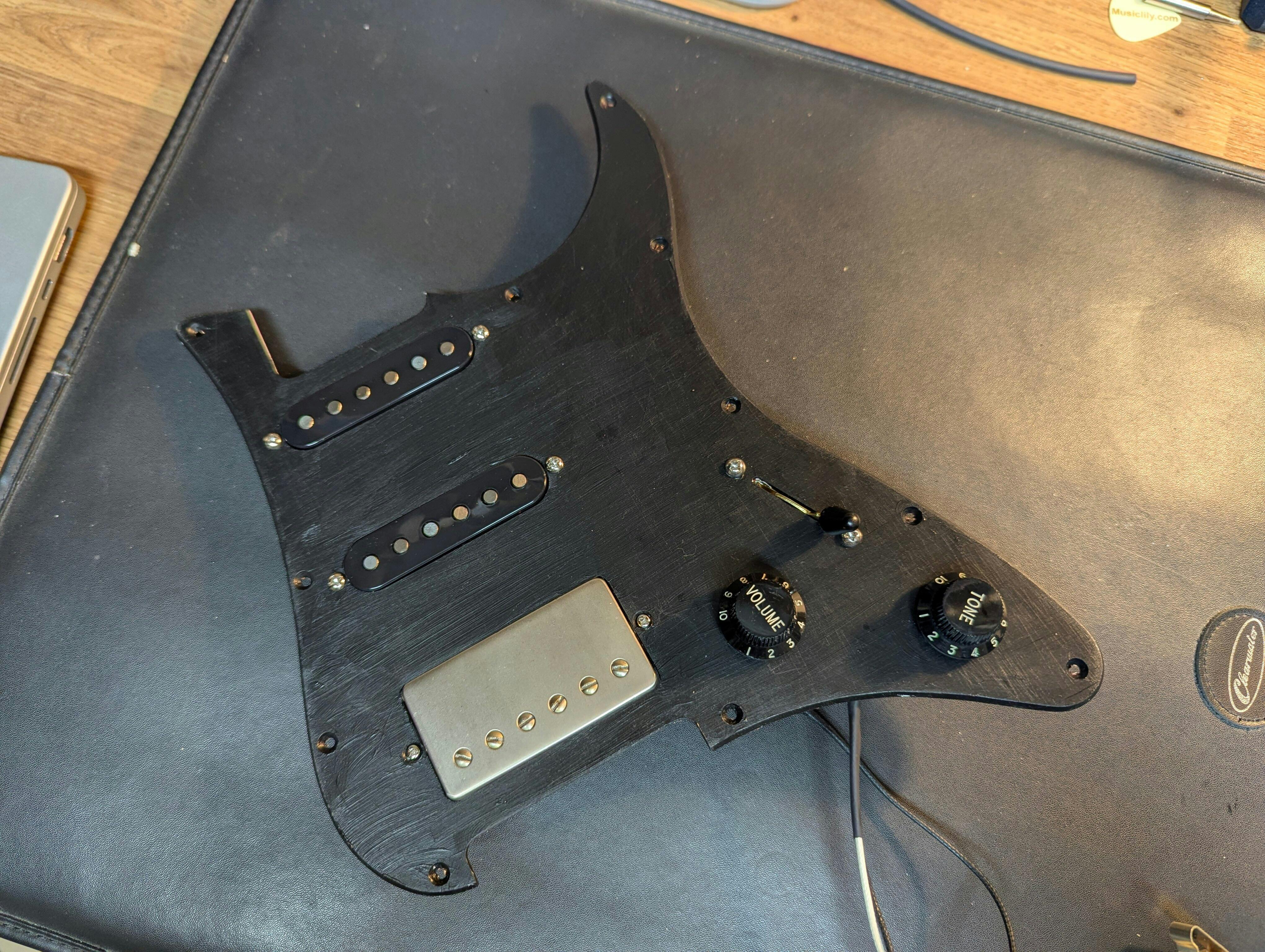

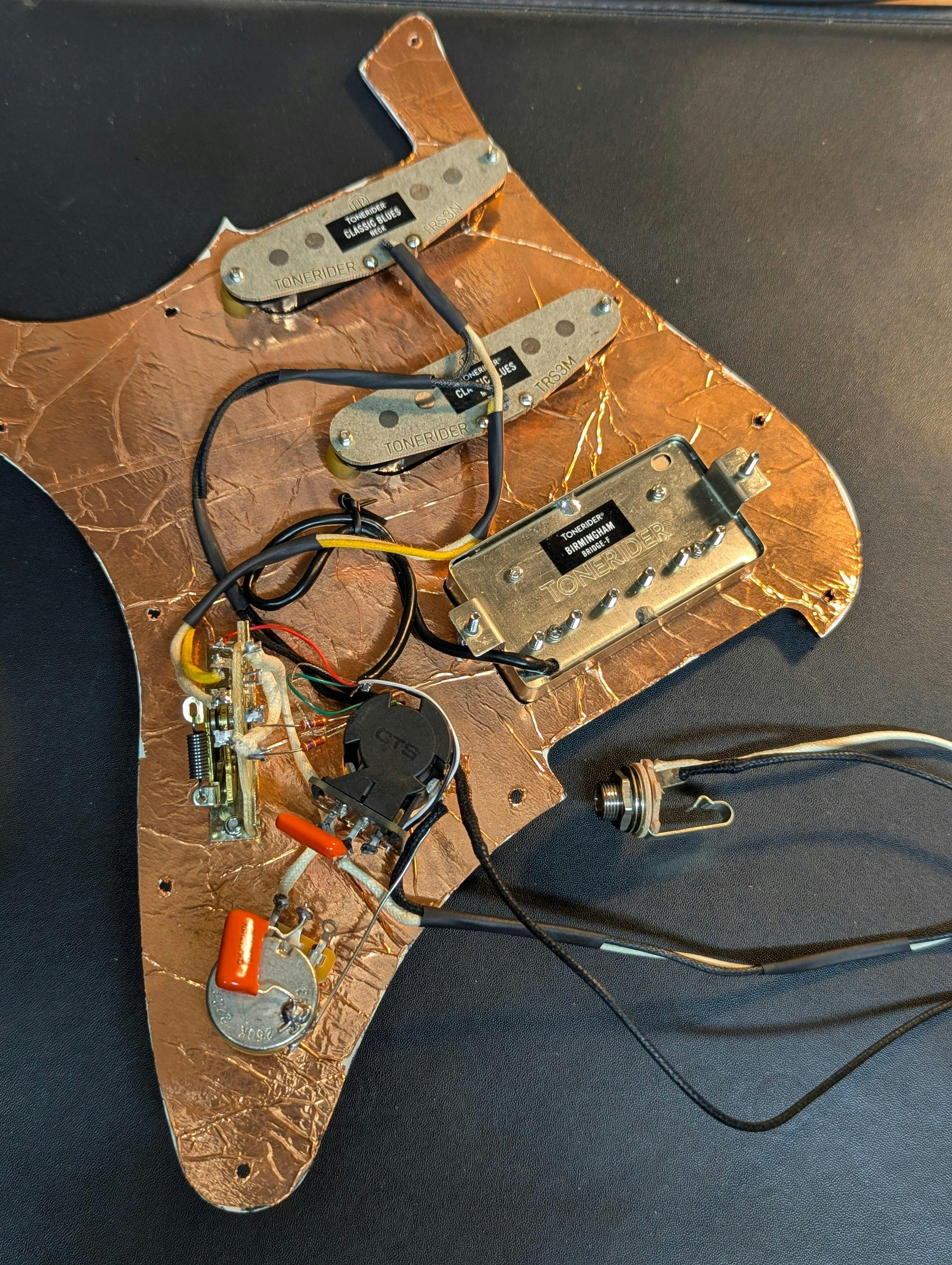

For ceramic pickups, they were ok BUT with the amp volume is 8 and guitar was 8 with the ceramic pickups, now with the tonerider Birmingham HSS , amp is still 8 , guitar is 3 and that is loud ‼️ The pickups are clear, sharp and execrating ‼️ Order on Wednesday, had pickups on Friday . I got all black
Good value !
Amazing sound, fantastic service totally recommend.

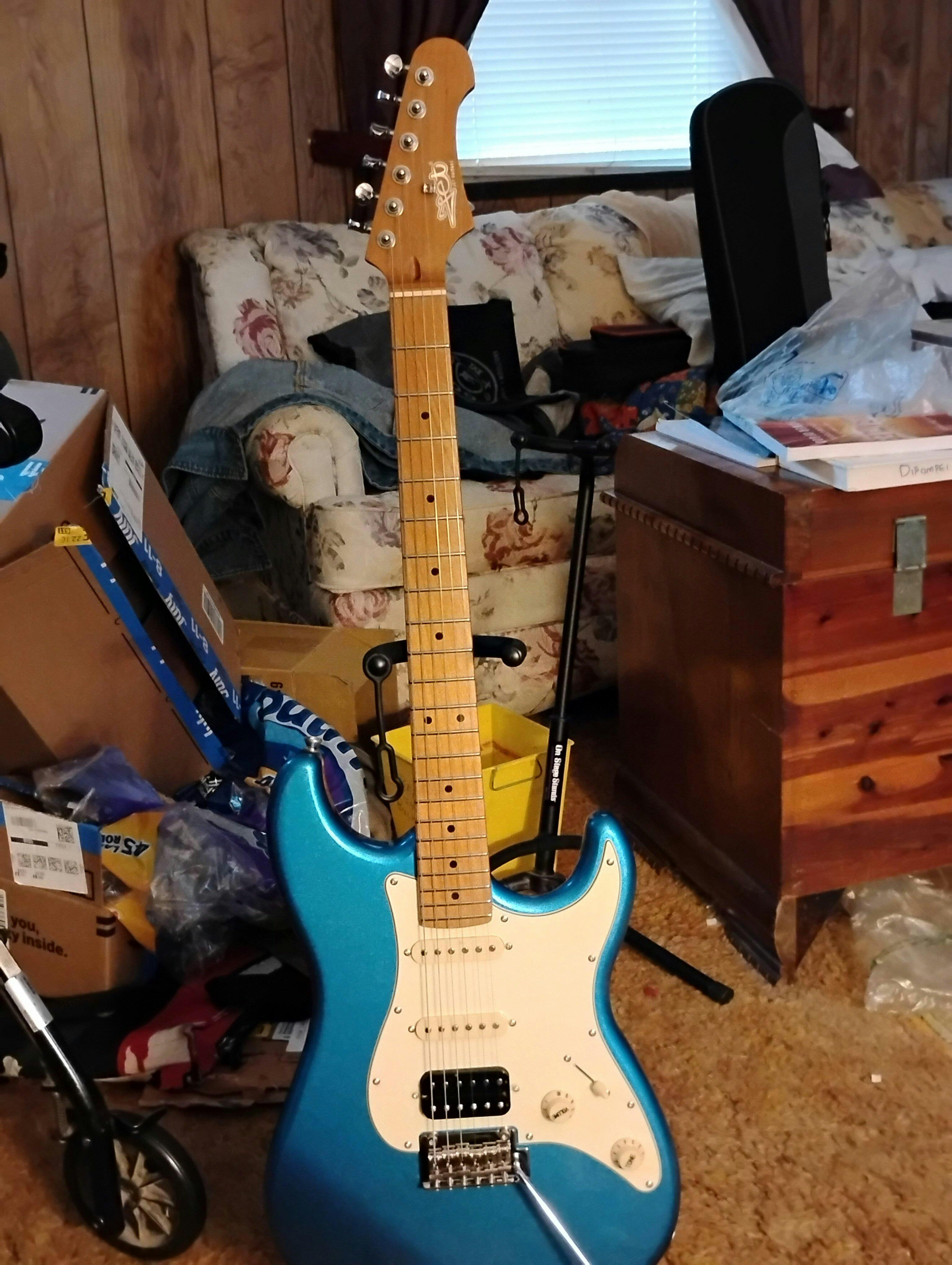

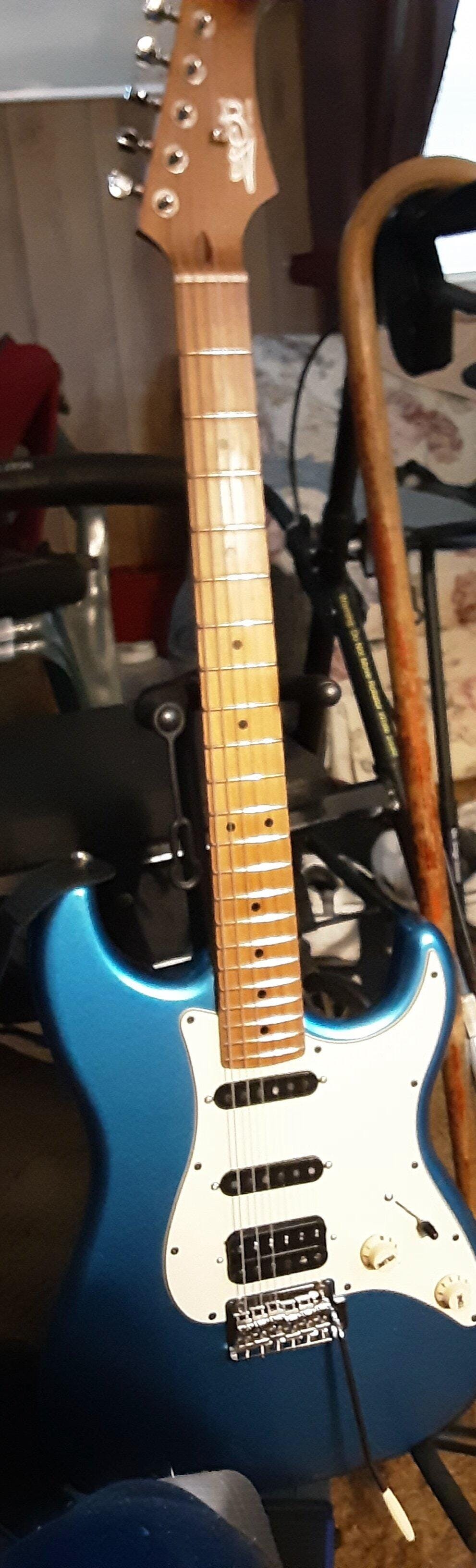

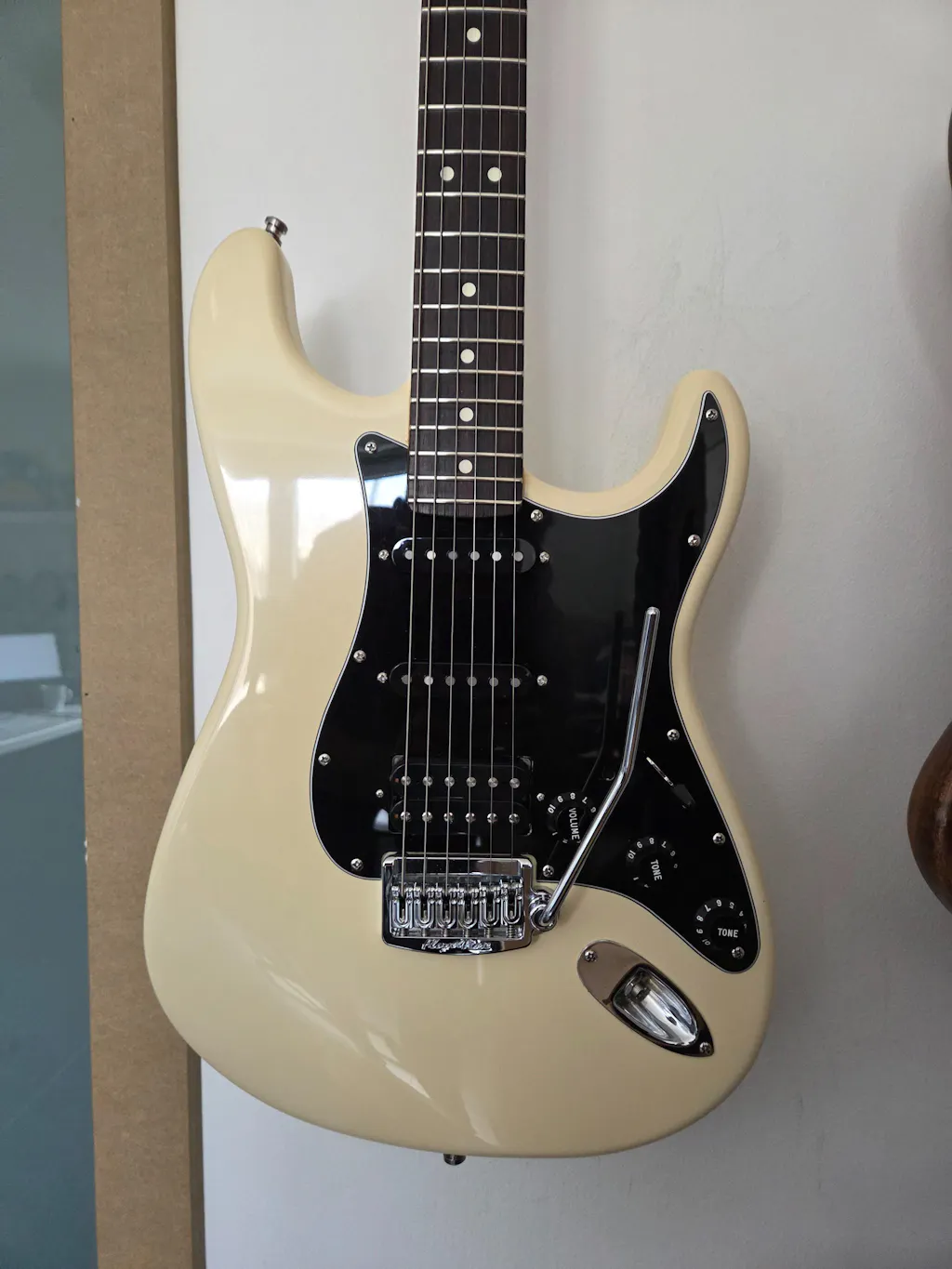

I needed an HSS set and I searched the internet to try something different from classic brands that I used in the past. I noticed the tonerider pickups and to be honest I never heard the brand before. I saw the reviews and I just ordered the set. Best choise I made! The set is fantastic, 1000% recommended! Better than other pickups with twice the price!
